6629 Hydraulic Crane
HYDRAULIC Telescopic service truck cranes
Summit’s truck-mounted telescopic service truck cranes are designed to meet the demands of today’s heavy equipment service industry.
Our hydraulic and electric truck cranes have a proven track record for dependability, whether deep in a mine or out on a construction site.
To provide the lifting capacity, power, and versatility needed for your application, we offer heavy-duty hydraulic telescopic service truck cranes that feature lifting capacities from 6,000 lb -14,000 lb and a maximum horizontal reach of 21 or 29 feet. Summit Cranes get the job done through strength, reliability, and safety.
6629

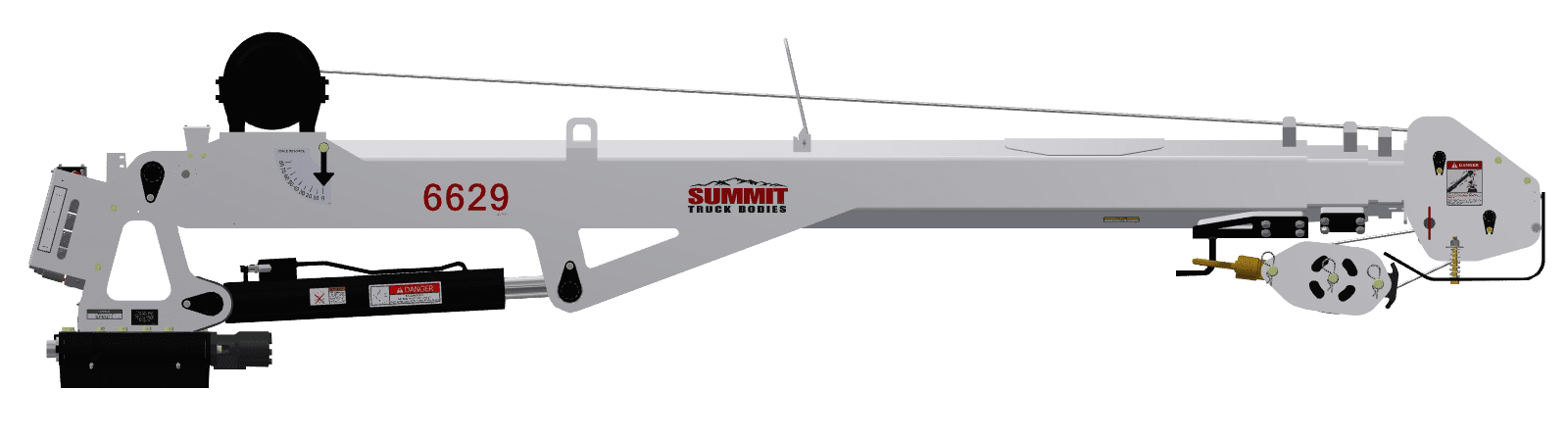

Telescopic Hydraulic Crane
6629 Crane Specifications
| Max Lifting Capacity | 6,000 lb. (2721.5 kg) |
| Crane Rating | 38,000 ft-lb. (51.5 kN-m) |
| Horizontal Lifting Radius (ret) | 12′ 9″ (3.8 m) from CL of Crane |
| Boom Extension | 1st Stage Hydraulic 95″ (241.3 cm) 2nd Stage Hydraulic 95″ (241.3 cm) |
| Max. Horizontal Reach (ext) | 28′ 7″ (8.71 m) from CL of Crane |
| Boom Elevation | -5° to +75° |
| Winch Specifications | |
| Rope Diameter | 3/8″ (0.95 cm) |
| Max. Winch Line Pull Speed | 60 ft/min (18.2 m/min) |
| Max. Single Part Line | 3,000 lb. (1360 kg) |
| Max. Double Part Line | 6,000 lb. (2720 kg) |
| Rotation | 400° Power |

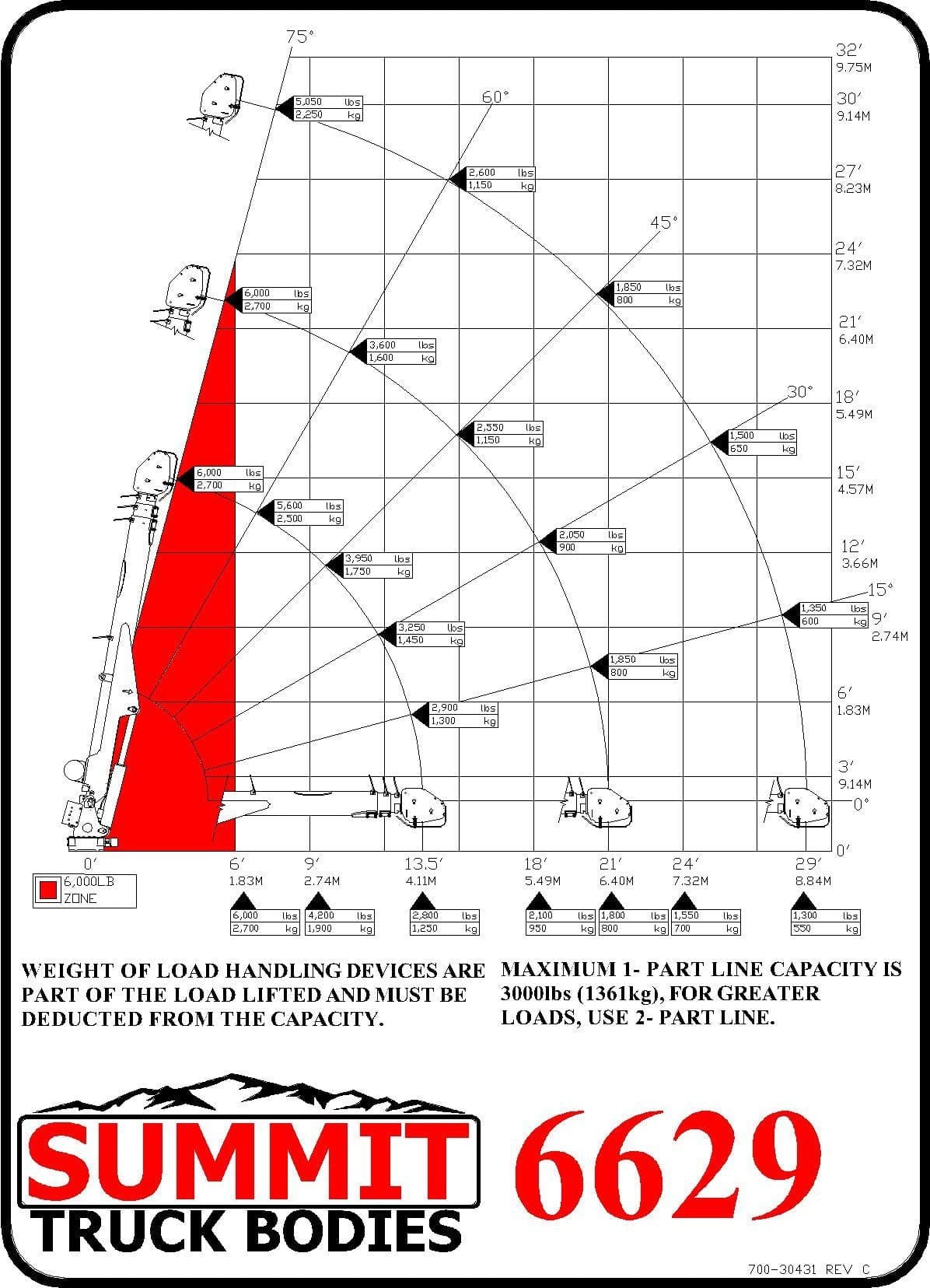

| Lifting Capacities | 6,000 lb. @ 6’ (2700 kg @ 1.83 m) 4,200 lb. @ 9’ (1900 kg @ 2.75 m) 3,150 lb. @ 12’ (1400 kg @ 3.35 m) 2,500 lb. @ 15’ (1100 kg @ 4.7 m) 2,100 lb. @ 18’ (950 kg @ 5.5 m) 1,800 lb. @ 21’ (800 kg @ 6.5 m) 1,550 lb. @ 24’ (700 kg @ 7.5 m) 1,400 lb. @ 27’ (600 kg @ 8.7 m) 1,300 lb. @ 29’ (550 kg @ 9.5 m) |
| Mounting Space Reqd | 21”x 25” (53.3 cm x 63.5 cm) |
| Approx. Weight | 1,890 lb. (862 kg) |
| Controls | Wireless Control System Standard |
| Power Supply Reqd | PTO & Pump 8 gpm (30.2 lpm) @ 2800 psi All-in-one power unit |
6629 Hydraulic Crane Features

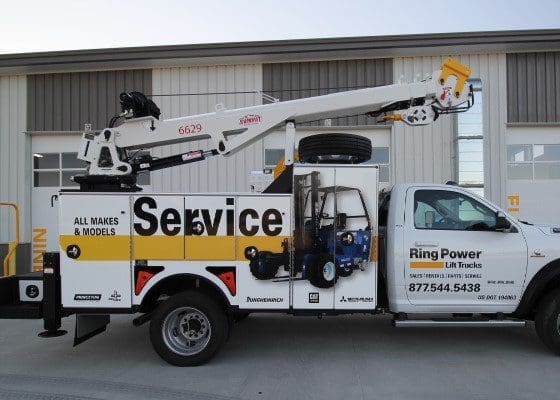

Summit’s 6K hydraulic telescopic service truck cranes are commonly mounted on our 7 Series truck body.
- Boom mounted winch
- 400° Rotation
- Overload Protection
- Auto-release hook stow
- PPG powder-coated boom
- ANSI B30.5 and OSHA 1910.180
- ASE Phase 4 Control System with wireless remote standard on all hydraulic cranes.
- A smarter, safer, and more efficient way to operate your crane, outriggers, and more.
- Visit our ASE page to learn more.
- Phase 1 crane controls on ship-out cranes
Explore your options for Hydraulic Telescopic Service Truck Cranes
- Crane Lights with swivel bracket
- Man-bucket & accessories
- Tire Jib
- Synthetic Rope
ASE Phase 1 Crane Control System
If you want to upgrade your current crane or need to replace an older crane, we can help. Summit Truck Bodies’ parts department handles factory-direct crane sales. All our ship-out cranes are shipped with our ASE Phase 1 control system. This wireless control system is easy to use and plug-and-play. It has a radio receiver, wireless radio transmitters, and a tether cord.
Phase 1 Transmitter Features
- Lightweight
- Waterproof
- Impact Resistant
- Multifunction
- Proportional Trigger
- Overload Protection
- E-Stop
- Engine/Start-Stop
- Powered with 4 AA Batteries
- LED Indicator
- Steady Flashing Green = Unit
- Red Flashing = Low Battery
- Tether Cable (optional use)
Resources and References
ASE
ADVANCED SAFETY ELECTRONICS
Our innovative ASE Phase 4 control system has elevated jobsite safety and performance.
We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can also incorporate the telematics data into your fleet management solution.
- Increase OSHA Dart Rate and ROI
- Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
- Built-in safety features protect against jobsite hazards and ensure safe crane operation.
- Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
- Three control points: main control in rear compartment, cab control panel, and wireless remote control
Prevents crane functionality under unsafe operating conditions - Digital displays of real-time load moment indicator (LMI) data on the main panel and remote control.
- Display alerts in easy-to-read text: e.g., oil temp, outriggers successfully deployed, crane overload, etc.
- Standard on all hydraulic crane service trucks
Crane Comparison Chart
Summit Crane Specifications
| Model | 4416E | 6422E | 6620 | 6629 | 7529 | 10620 | 10629 | 12629 | 14629 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Lift Capacity (lb) | 4,000 | 6,000 | 6,000 | 6,000 | 7,500 | 10,000 | 10,000 | 12,000 | 14,000 | ||||||||||||||
| Crane Rating (ft-lb) | 16,000 | 36,000 | 38,000 | 38,000 | 45,000 | 60,000 | 60,000 | 66,000 | 70,000 | ||||||||||||||
| Horizontal Lifting Radius (ret) | 7′ | 10′ 6″ | 10′ 9″ | 12’9 | 13′ 10″ | 12′ 9″ | 13′ 7″ | 13′ 7″ | 14′ | ||||||||||||||
| Max Horizontal Reach(ext) | 16′ | 23′ | 20′ 8″ | 28′ 7″ | 29′ 7″ | 20′ 8″ | 28′ 11″ | 28′ 11″ | 28″ 11″ | ||||||||||||||
| Max Vertical Lift Height | 16′ | 23′ | 22′ | 29′ 4″ | 22′ | 29 4″ | 29′ 4″ | 30′ 6″ | |||||||||||||||
| Boom Elevation | -5° to 75° | ||||||||||||||||||||||
| Crane Rotation | 360° Continuous | 400° Continuous | |||||||||||||||||||||
| Max Winch Line Speed | 22 ft/mn | 30 ft/min | 60 ft/min | ||||||||||||||||||||
| Rope Diameter | 1/4″ | 5/16″ | 3/8″ | 3/8″ | 7/16″ | 7/16″ | 7/16″ | 7/16″ | 12″ | ||||||||||||||
| Stowed Height (crane only) | 34 9/16″ | 37 7/8″ | 40 5/8″ | 40 5/8″ | 43″ | 41 1/4″ | 41 1/4″ | 42 3/8″ | 52 1/4″ | ||||||||||||||
| Approx Weight | 825 lb | 1,817 lb | 1,750 lb | 1,890 lb | 2,100 lb | 2,320 lb | 2,600 lb | 2,640 lb | 3,420 lb | ||||||||||||||
| Mountaing Space Reqd | 14″ x 14″ | 18″ x 18″ | 21″ x 25″ | 21″ x 25″ | 25.5 x 35.5″ | 21″ x 25″ | 21″ x 25″ | 21″ x 25″ | 25″ x 34.5″ | ||||||||||||||
| Controls | Single-function Wireless Controls | Wireless Control System Standard: ASE Phase 4 or Phase 1(ship out cranes only) | |||||||||||||||||||||
| Power Supply Reqd | 12VDC |
|
|||||||||||||||||||||
| * Specifications are subject to change without notification. | |||||||||||||||||||||||
Learn about pricing.
Talk to your regional sales rep or call our factory direct parts department about the hydraulic or electric truck cranes you need to help improve safety and productivity on the job site.
