Lube Trailers
lube trailers
Summit Lube Trailers are a flexible and cost-effective solution to maximize equipment uptime.
Save time and increase productivity by using a mobile lube trailer to perform routine preventative maintenance services on your equipment in the field. Plus, lube trailers are more affordable than a dedicated lube service truck.
You can store it at the shop and easily haul your trailer to the job site when you need it. And as always, we will custom-design a lube trailer to complete your project and budgetary requirements.
Highlights
Lube trailer
Common Applications
Construction companies with a large fleet of equipment or equipment dealers who service their rental fleet or provide lube service to their customers will benefit from having a mobile lube trailer. They can be stored at the shop or at the jobsite.
Features
- Custom Contractor Series Enclosed Trailers
- Galvenized structural tubeing in walls and floors
- Insulated walls and ceiling with 3/8″ plywood panel to roof line
- 10 ga tread plate steel floor

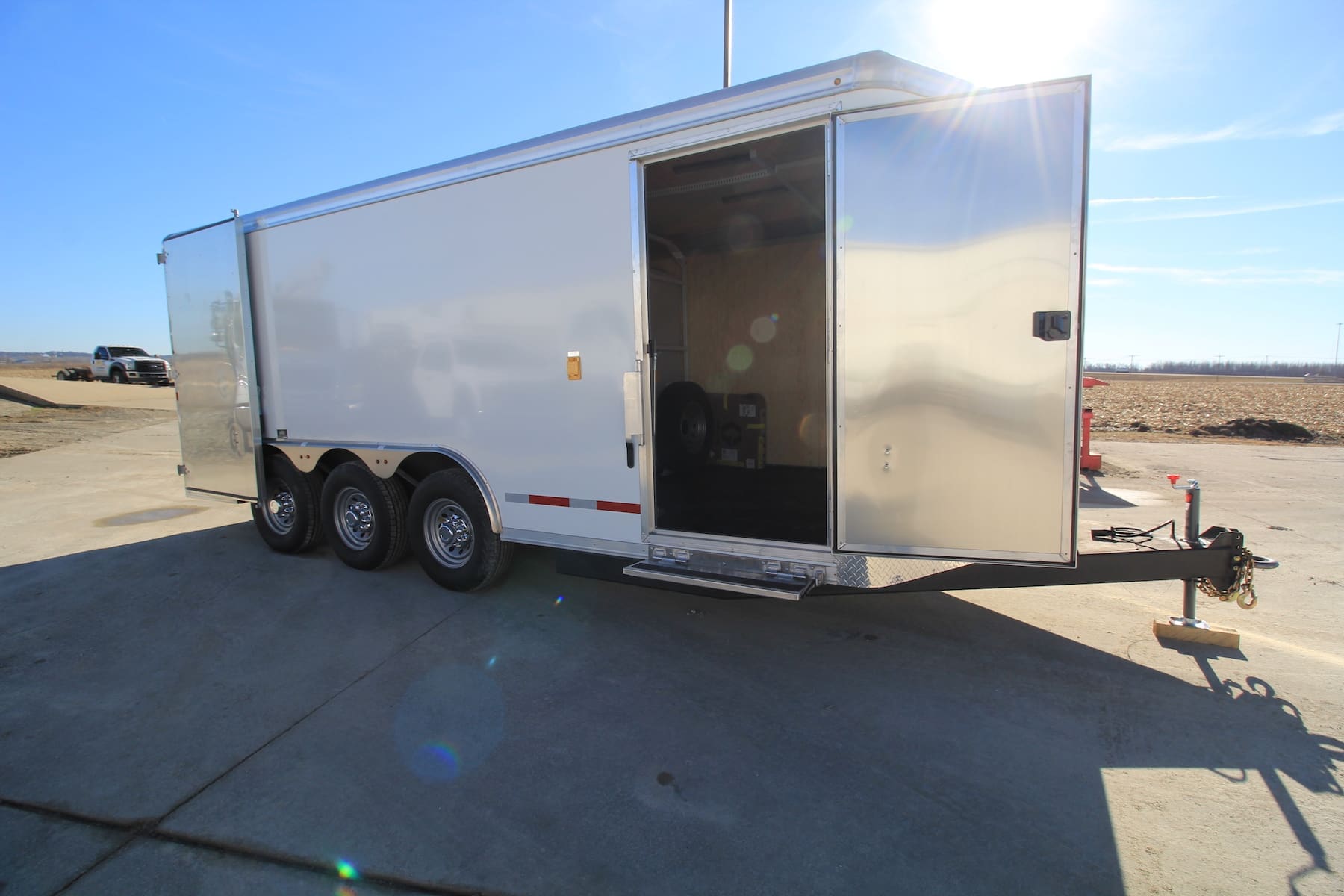

- Walk-in side entry door
- Wheel & Tires
- 16″ 8 lug wheels
- 235/80R16 E rates 10 ply ties
- Standard or Pintle trailer hitch

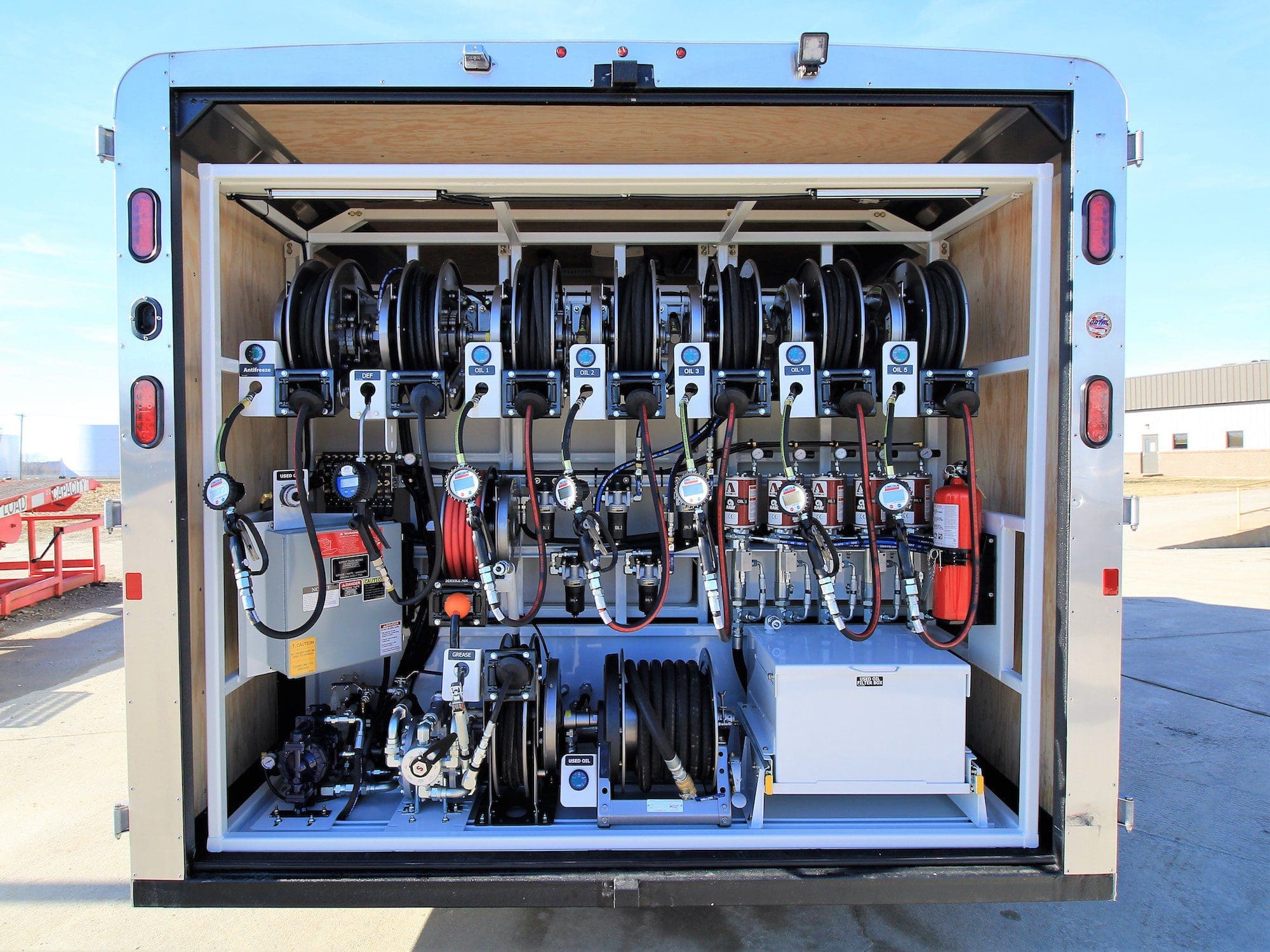

- Rear barn doors for access to rear reeel rack

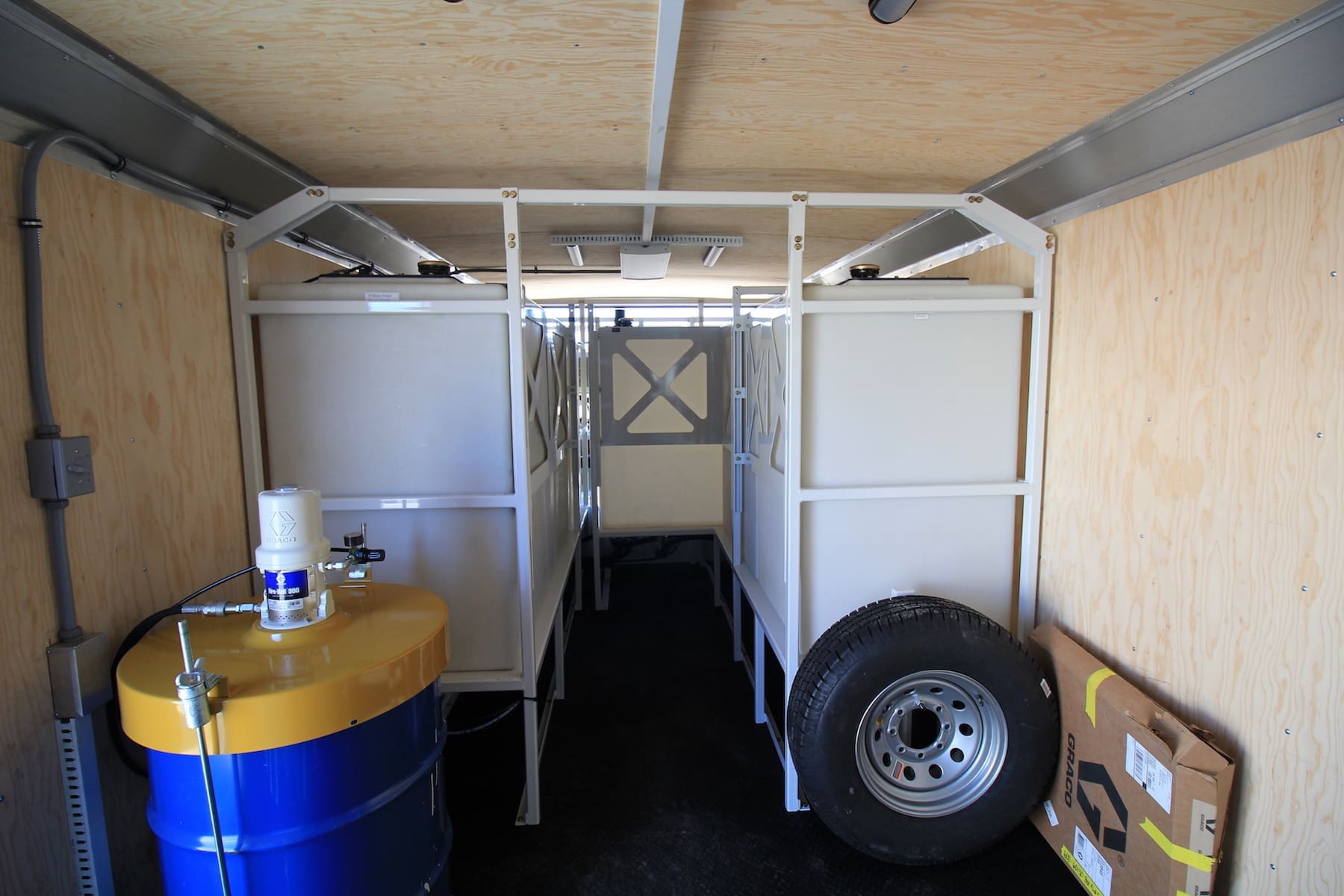

- Elevated tank coral over fender hubs

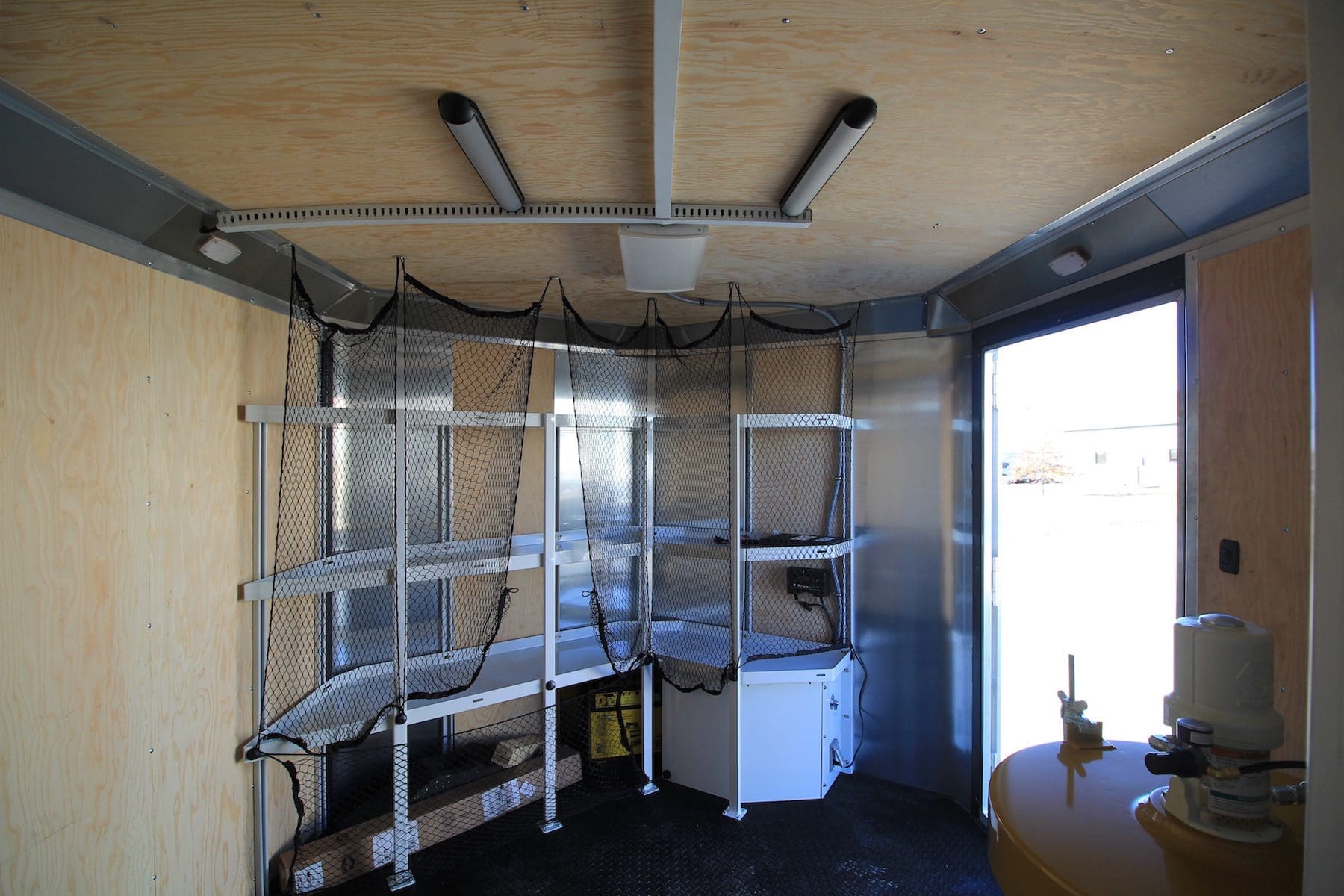

- Interior Steel or Aluminum Shleving

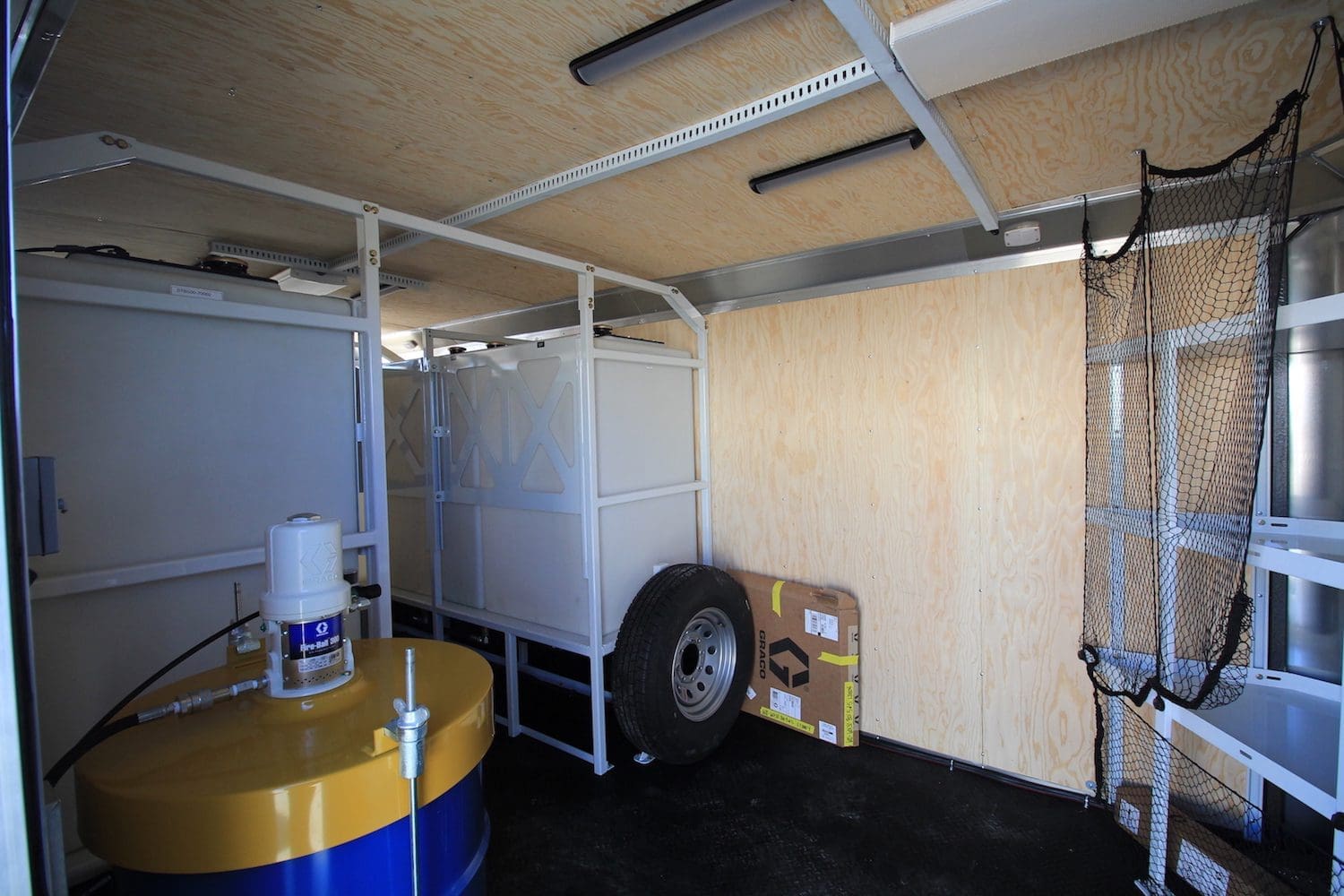

- Interior Trailer Lightinhg
- Dome lights or
- Strip lights inside trailer and reel box
- Controlby by interior switch
- DOT Exterior Trailer Lights
- LED marker & tail lights

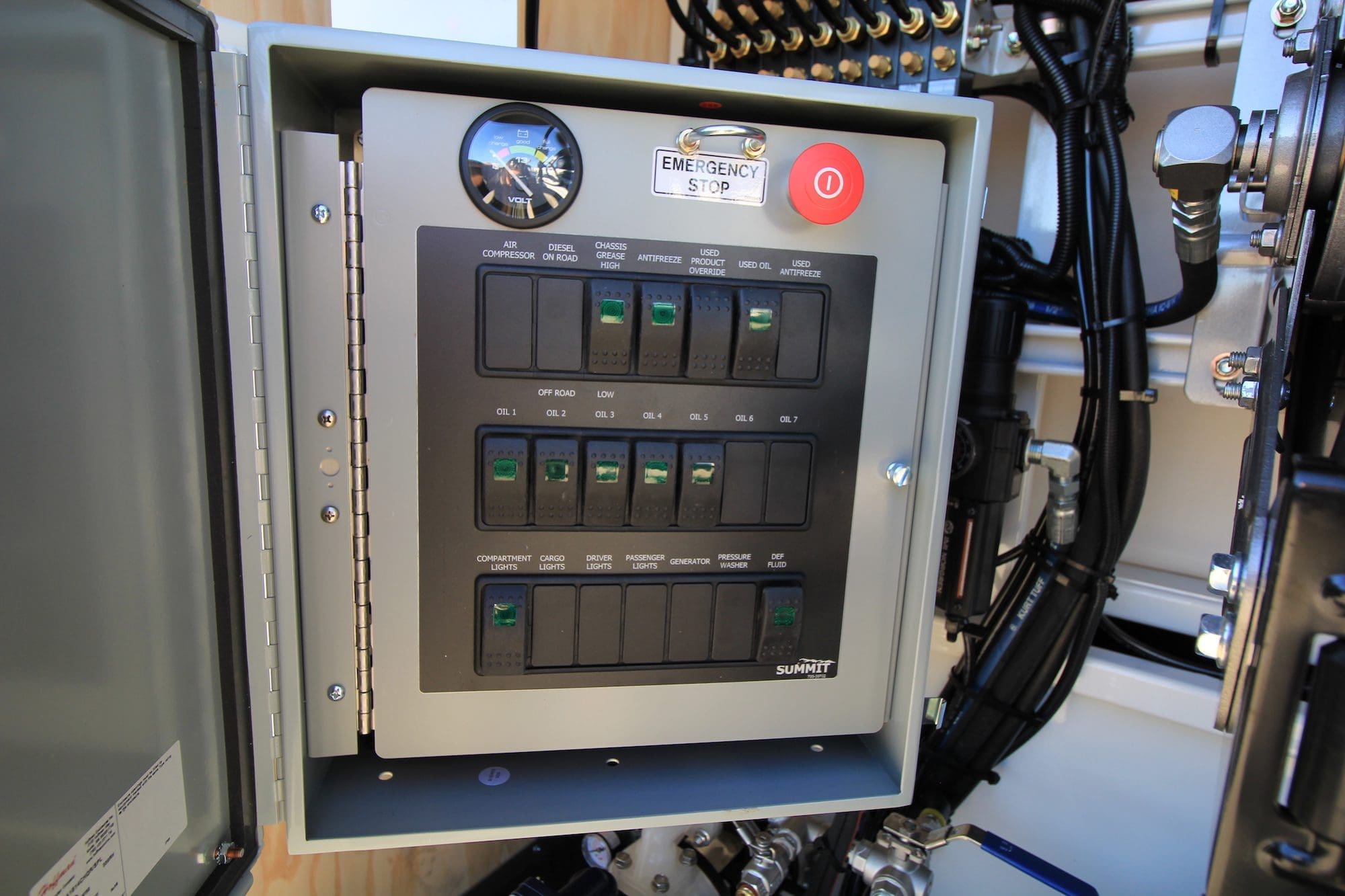

- Master Control Box
- Located in rear reel comparment
- Control lights and lube systems
Enlcosed Lube Trailer
Electrical & Lighting

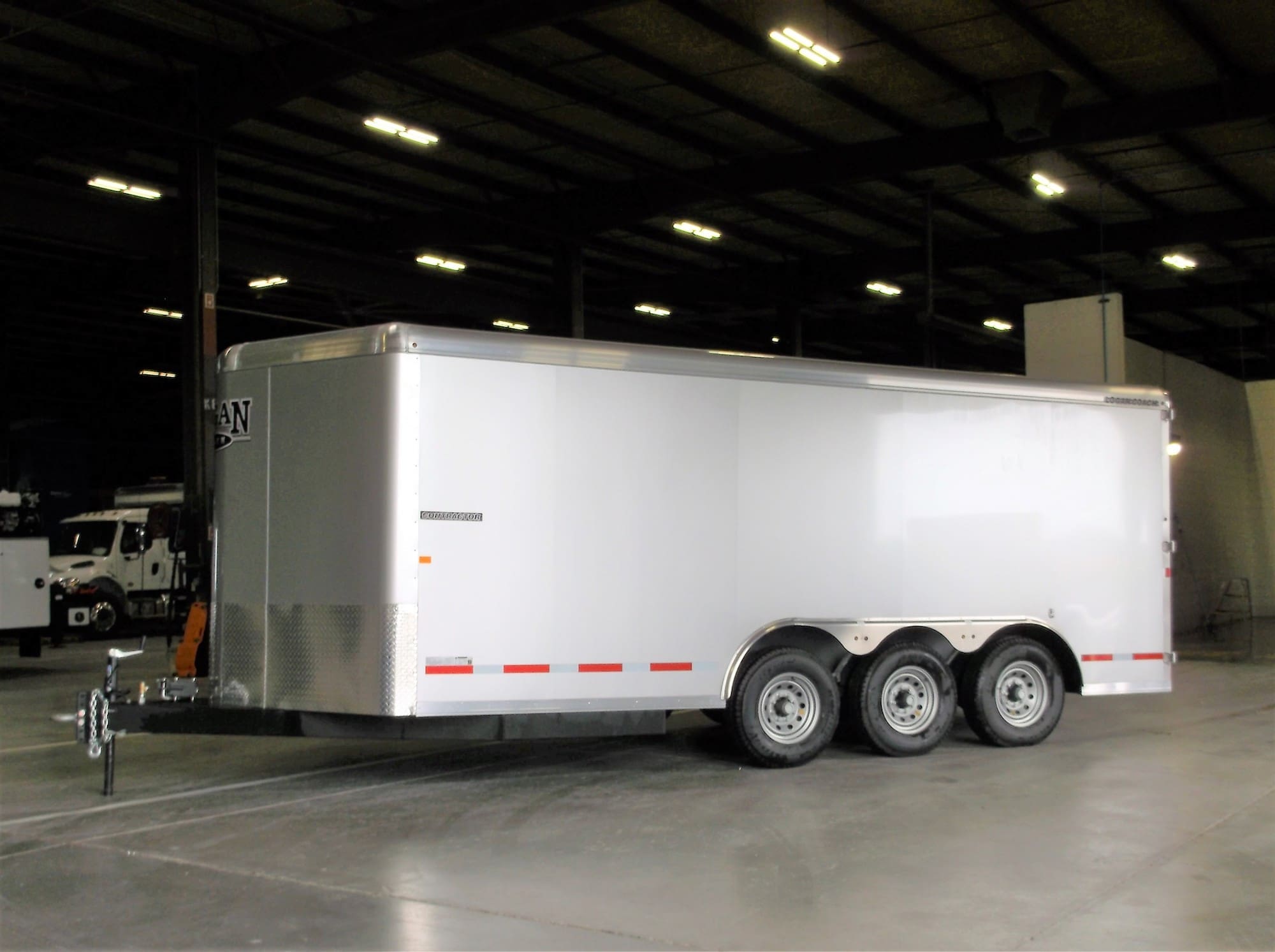

Logan Trailer Specs
- 14′,16′,18′ & 20′ enclosed Logan Coach trailer
- 8’ 6”wide with 7’ interior height.
- Tandem or Triple 7000 or 8000 lb axles
- Electric brakes on all axles
- Insulated walls and ceiling
- 10 ga tread plate steel floor.
Lube Systems
- We’ll add the lube sytems and other options to meet your needs.
Oil Product Delivery
-
- Delivery circuit options:
- Flow rates from 2.5 up to 20 gpm
- Hydraulic-driven 1:1 gear pump
- Air-operated piston pump with flow rates
- Tank-mounted Rochester level gauges with remote readout
- Digitally metered nozzle sized to match circuit delivery rates
- Tank Options
- Carbon Steel: 50,60,90,120,150,250 gal tanks
- Poly Tanks: 40,60,90,150,150,200,300 gal tanks
- Delivery circuit options:
Antifreeze Delivery
- Delivery Circuit Options.
- Hydraulic-driven centrifugal
- Air-operated double diaphragm pump.
- Tank-mounted Rochester level gauges with remote readout
- Non-metered delivery nozzle
- Optional digital metered nozzle
- Tank Options
- Poly Tanks: 40,60,90,150,150,200,300 gal tanks
- Stainless Steel: 50,60,90,120,150,250 gal tanks
Waste Oil & Antifreeze
- Air-operated double diaphragm pumps with directional valves
- Single line load and offload of used product
- 1” AODD for used oil.
- ½” AODD for used antifreeze
- Larger sizes are available for higher flow requirements.
- An electronic level indicator with shutoff prevents overflow of the waste system.
- Tank Options
- Poly Tanks: 40,60,90,150,150,200,300 gal tanks
- Stainless Steel: 50,60,90,120,150,250 gal tanks
Chassis Grease System
- 120# and 400# grease systems
- Air-driven or hydraulically-driven
- Hannay grease reel and nozzle
DEF Delivery System
- Air-operated DEF diaphragm pump
- Hannay ½” x 50′ SWR Reel with ½” hose
- Metered nozzle
- Tank Options
- Stainless Steel: 50,60,90,120,150,250 gal tanks
Explore Options & Accessories for your next lube trailer
- Air Compressors
- Drip Pan
- Used Filter Storage
- Tool Drawer Package
- Battery power
- Heat package
- Fire extinguishers
- Lube Systems
Resources & References
Learn about pricing
Contact your regional sales rep to learn more about building a custom lube trailer.
