Gunnison Edition 4×4

4×4 service truck

No matter where you go, our Gunnison Edition 4×4 service truck will get you there with the tools you need to do the job.

We mount our durable 7 Series body on a rugged 4×4 Ford F-550 or Chevy 6500 chassis with our exclusive Gunnison Edition package.

What you get is a high-performance off-road service truck.

Highlights

Bodies engineered for strength and durability, built with premium materials and quality manufacturing.

The off-road package includes robust tires and wheels and a suspension lift.

LED light package includes S/T/T, compartment, and work lights.

aggregate and mining service truck for Canadian mine

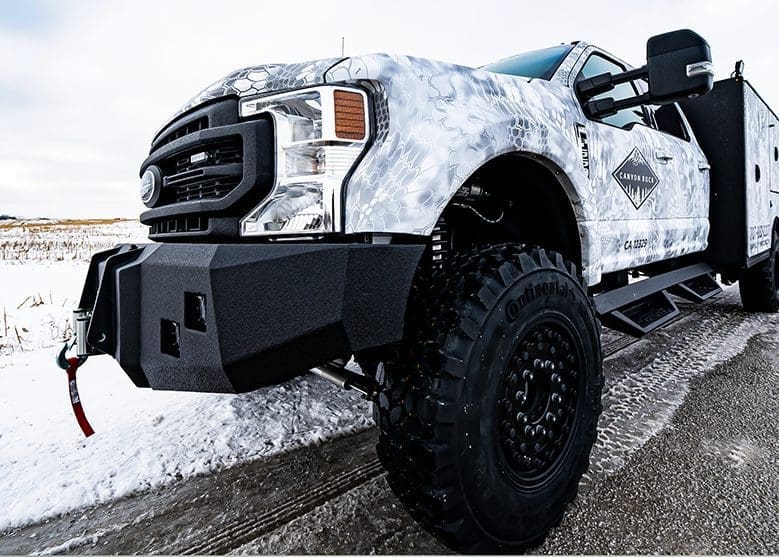

4x4 service truck wheels and tires

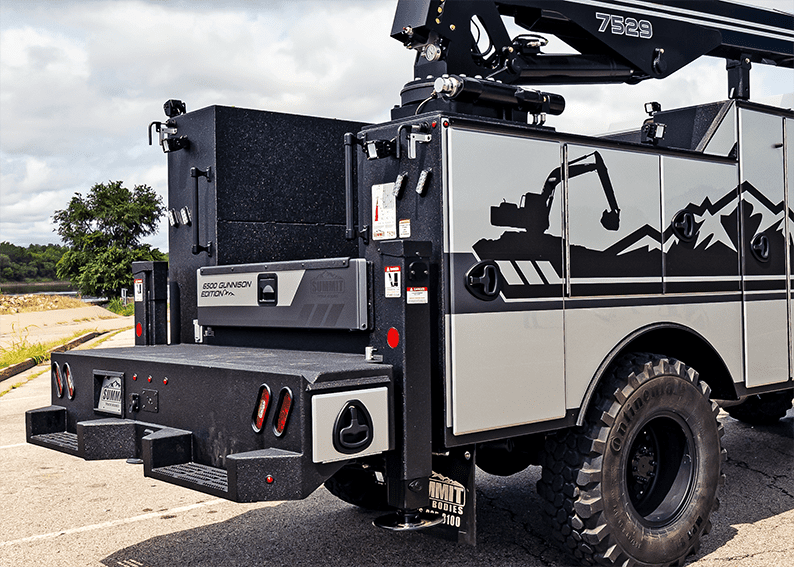

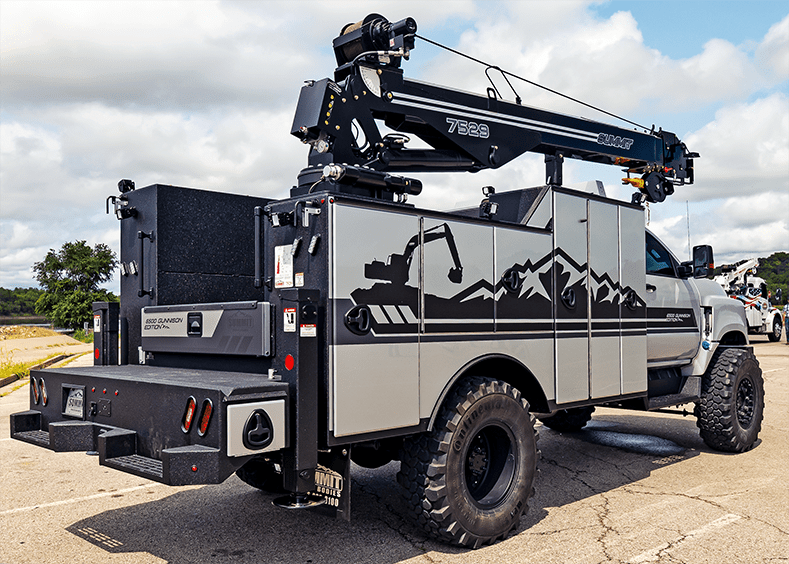

custom bumper on 4x4 service truck FOR THE AGGREGATE INDUSTRY

Gunnison Edition

Common Applications

The Gunnison Edition 4×4 service truck is designed for field mechanics that need to get through off-road conditions such as mines, quarries, and other remote job sites with rough terrain.

Features

    • Standard Body

    • 12 ga. galvannealed steel body construction
    • 1/8” aluminum bolt-on doors with an internal frame
    • Full-length piano-style aluminum hinges
    • Automotive-style bulb weather stripping
    • Ergonomic three-point compression door latches keep compartments sealed tight.
    • Aluminum drip rail above compartment doors
    • 3/16” diamond tread plate floor in the cargo area reduces the risk of slips and falls.
    • Swivel D-ring tie-downs flush-mounted on the cargo area walls: Qty 6
      • 6,000 lbs. Capacity
    • A fully integrated crane support structure

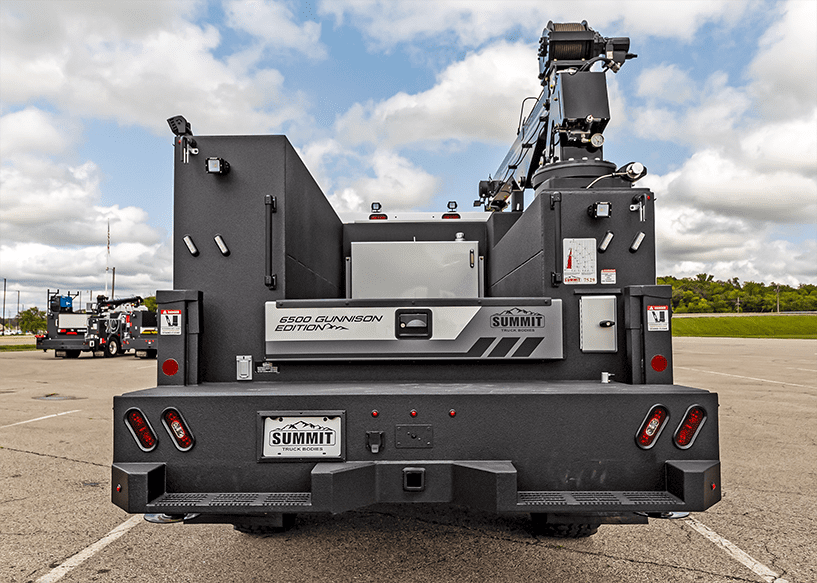

    • 24” D tool bumper with storage compartment
      • Integrated bumper steps with grip strut provide slip-resistant access to the cargo area.
      • 2.5” 18,000 lbs automotive-style receiver hitch
    • Infinitely adjustable compartment shelves with dividers
    • Bright polished knurled grab handles mounted on the rear side packs aid in safe three-point contact access to the cargo area.
    • 12” aluminum slam style lockable tailgate

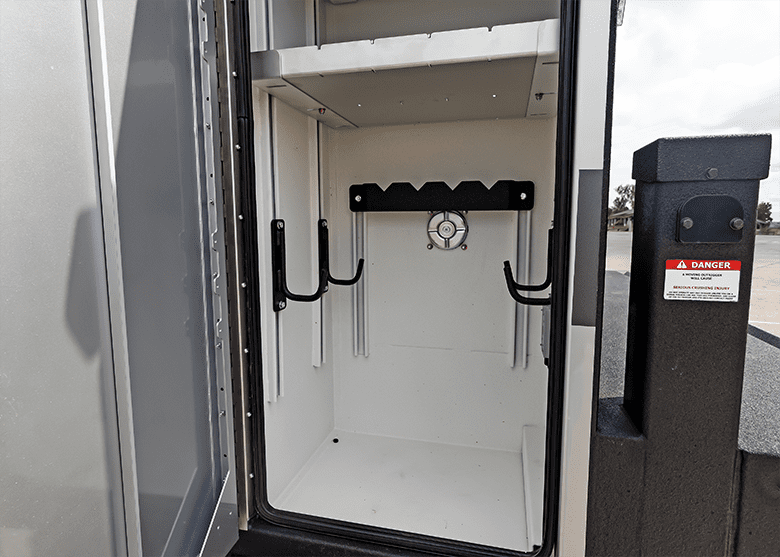

    • Torch bottle storage compartment
      • Vented and reinforced floor
      • Torch bottle retainer with ratchet straps
    • Reinforced welder riser mounting blocks on top of DS sidepack
    • Safety placards and decals

    • Paint & Protective Coatings

    • The three-step paint process gives the body a high-quality image and durability.
      • Phosphate wash, epoxy primer, and topcoat.
      • Five-year warranty against rust and corrosion
      • Endless color options
    • Line-X protective coating applied to the cargo area, rear bumper, side pack front, top, back, and the entire length of the bottom edge of the body provides long-lasting protection from harsh elements.
    • Rubberized undercoating applied to the entire underside of the body optimizes durability.

    • Electrical & Light Package

    • LED Light Package
      • Grommeted and flush-mounted
      • Front and rear marker lights
      • Oval stop/tail/turn lights on the rear bumper and headache rack
      • Reverse lights on the rear bumper with a backup alarm
    • LED Rectangle work lights
    • LED compartment strip lights
    • Control lights from ASE main control panel, chassis cab panel, and crane remote
    • 7-way RV-style trailer plug
    • Control lights from control panels in the rear compartment and cab.
    • Weatherproof latching main body power panel installed in crane compartment.
      • Includes push-button panel to control crane, outriggers, and 12V body accessories, including lights
    • Electrical wiring harnesses feature Deutsch connectors and braided protective sleeves.

    • Tool Boxes

    • Summit designed and manufactured drawer packs.
    • .125” aluminum construction
    • Heavy-duty 600 lbs. slides fully extended.
    • Lock-in & lock-out slides.
    • Removable drawers.
    • Lock-in drawer dividers are standard, with optional egg crating.
    • Lockable single-action handle assembly.
    • Drawer depths of  3”, 5”, 7”
    • Custom widths from 12”-50”.
    • Custom riser heights.
    • An integrated top shelf with dividers.
    • Optional slide-out work tray.
    • Wrap or powder coat options add color & durability.
    • Cycle, load, shock, impact damage, incline, and vibration tested.

    • Hydraulic System

    • Open center fixed displacement gear pump.
    • PTO is mounted to the transmission.
    • 26-gal tank hydraulic reservoir is mounted to the body.

    • Air Compressor Systems

    • Hydraulic-driven reciprocating or rotary screw air compressor.
    • 40 CFM output.
    • 175 psi max output (reciprocating)
    • 150 psi max output (rotary screw)
    • Hannay Reels 1/2″ x 50′ HD spring rewind hose reel
      • 50′ of 250 psi rated air hose
      • The payout door is on the rear of the side pack.
    • ASME underbody air receiver
      • 15 gal air storage tank
      • Mechanical air tank moisture drain
    • Norgren 1/2″ filter/lubricator/regulator

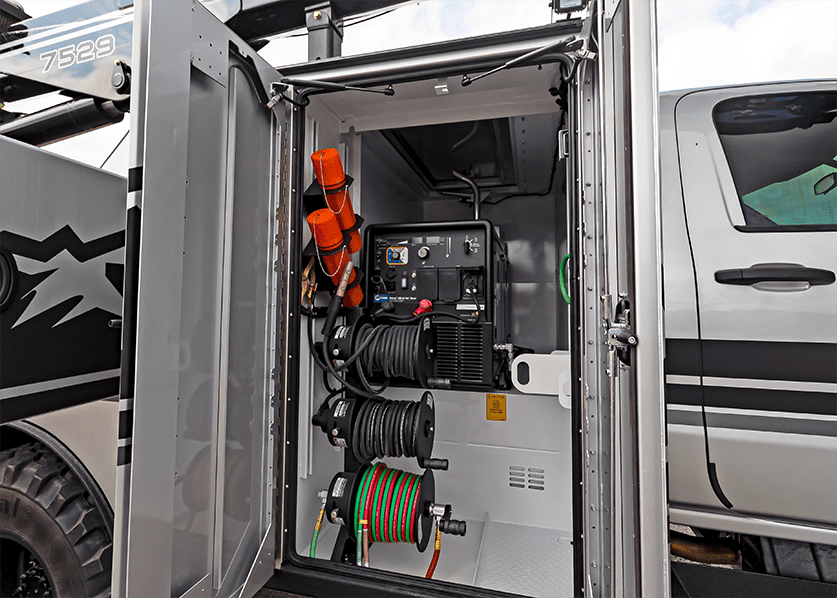

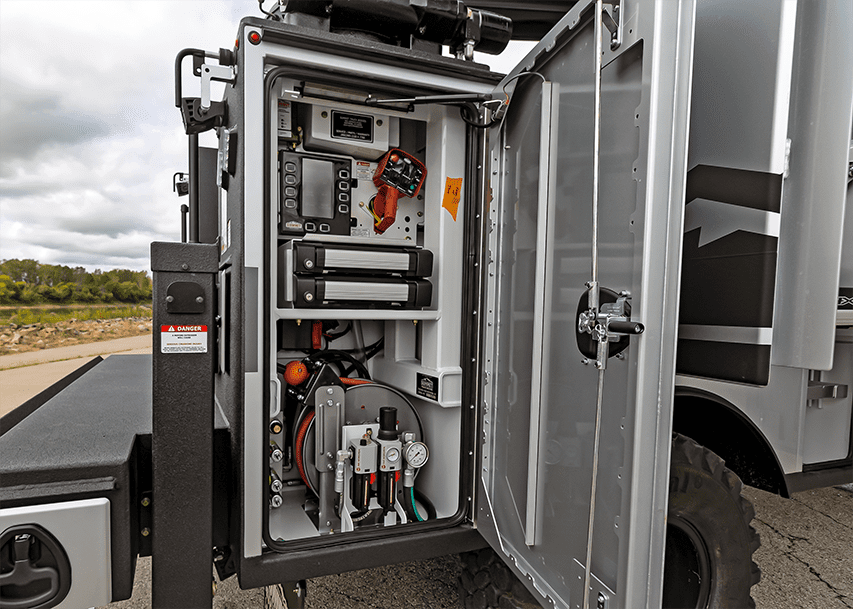

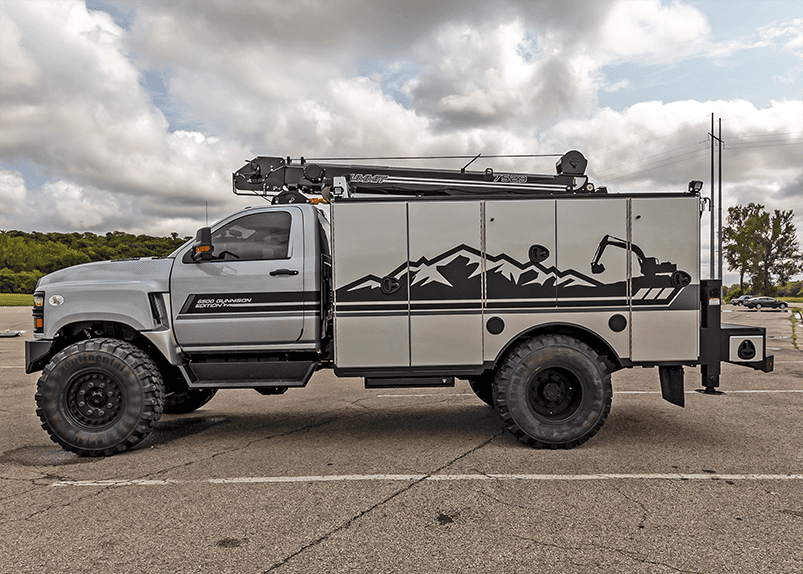

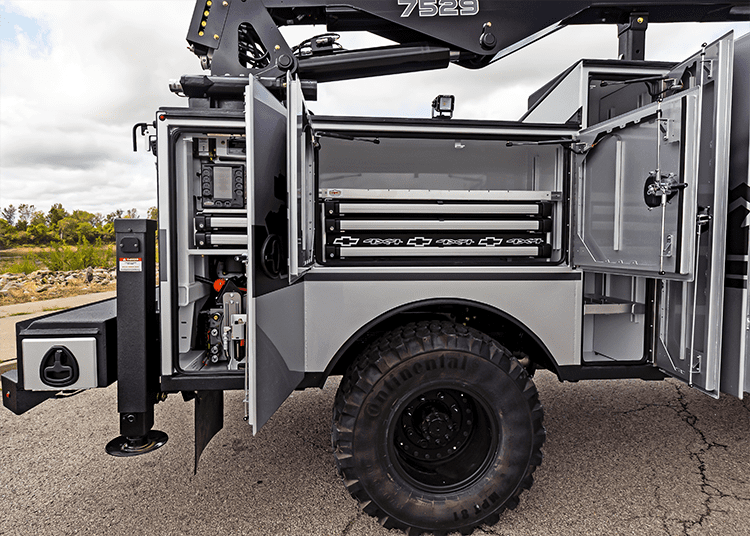

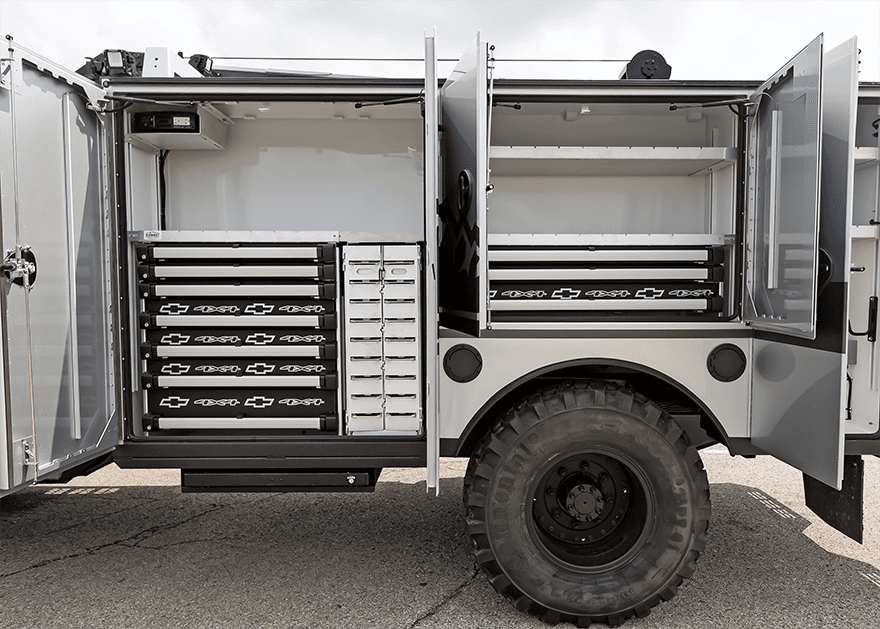

off road mechanics and service trucks for aggregates and mining passenger side open compartments on off-road mechanic truck body miller airpak 200 for 4x4 service truck custom tool strage and crane compartment crane compartment with air reel storage mining industry truck bodies & series gunnision edition with custom bumper and grip strut steps off road service truck body drivers side 4x4 service truck with tool storage 7 Series Gunnison Edition tool custom drawer packs mechanic truck storage with carr step service truck chain rack storage transverse welder comparment on off road service truck

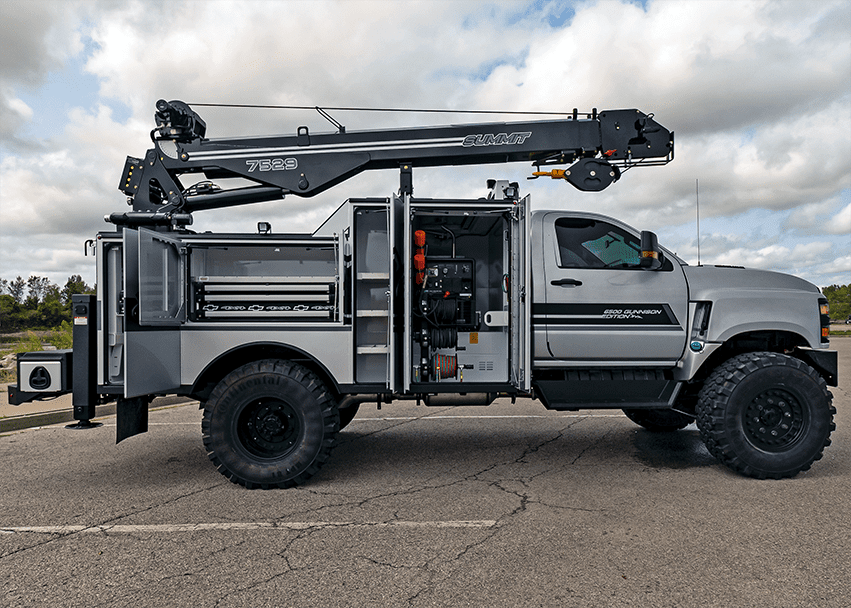

ASE Crane System

Our innovative Advanced Safety Electronics (ASE) Phase 4 control system has elevated jobsite safety and performance.

We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can incorporate the telematics data into your fleet management solution.

  • Increase OSHA Dart Rate and ROI
  • Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
  • Built-in safety features protect against jobsite hazards and ensure safe crane operation.
  • Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
  • Three control points: main control in the rear compartment, cab control panel, and wireless remote control
    It prevents crane functionality under unsafe operating conditions
  • Digitally displays of real-time load moment indicator (LMI) data on the main panel and remote control.
  • Display alerts in easy-to-read text: e.g., oil temp, outriggers successfully deployed, crane overload, etc.
  • Standard on all hydraulic crane service trucks.

Learn more about ASE

summit crane control panel home screen

Gunnison Edition Gallery

aggregate and mining service truck for Canadian mine
custom 4x4 service truck for the aggregate industry

Learn about pricing.

Contact your regional sales rep to get started on your new custom 4×4 service truck.
