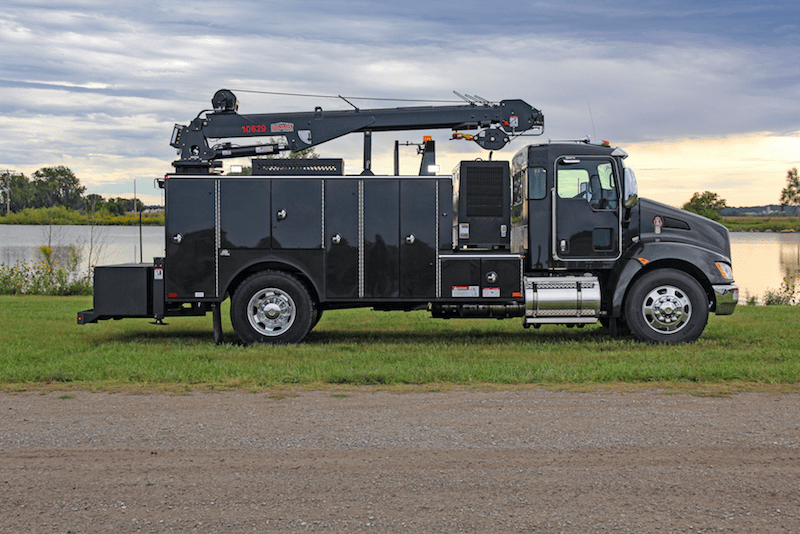

custom welding service truck for 2017 conexpo

Line Bore/Weld Truck

Find My Rep

welding service truck

Our custom-designed line bore and welding service truck bodies make the specialized work safe and efficient.

The weld truck body is mounted on a medium to heavy-duty chassis resulting in a higher payload.

Therefore, the body has ample capacity for the tools and equipment needed, such as weld machines and touch bottle and bore bar storage. Weld truck design and specifications vary due to customer needs.

Highlights

Welding service truck bodies engineered for strength and rigidity, built with premium materials and quality manufacturing.

Options available for line bore and welding including weld deck and bore bar storage

LED light package includes S/T/T, compartment, and work lights.

ASE integrated operating system for the safe and efficient control of crane, body, and chassis functions

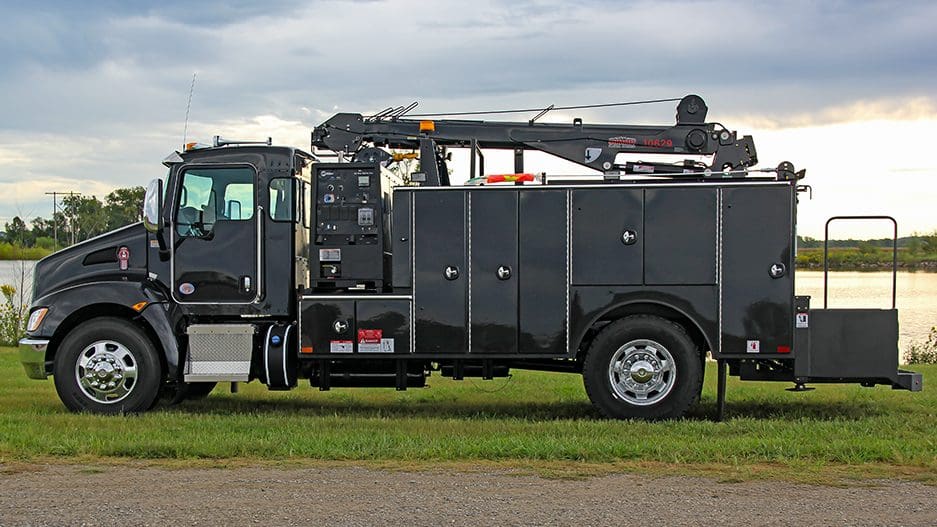

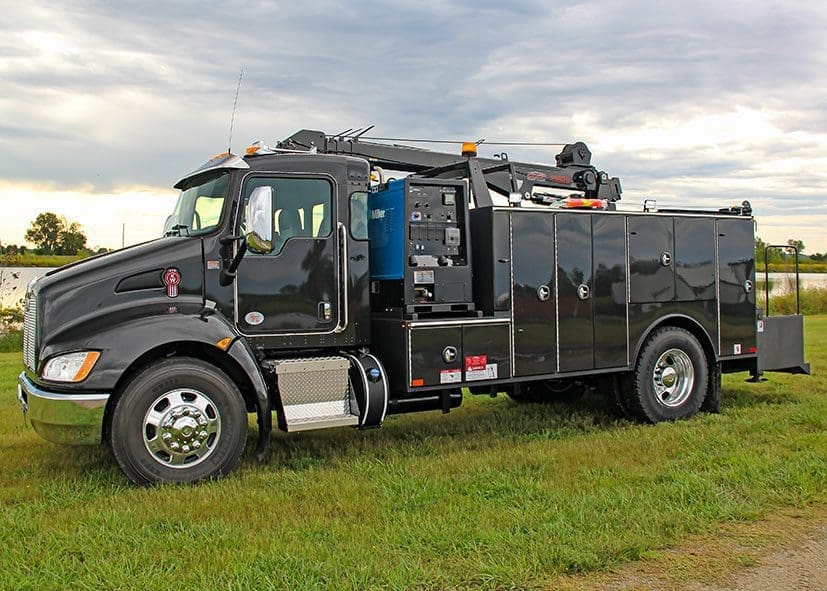

welding service truck with custom welder storage

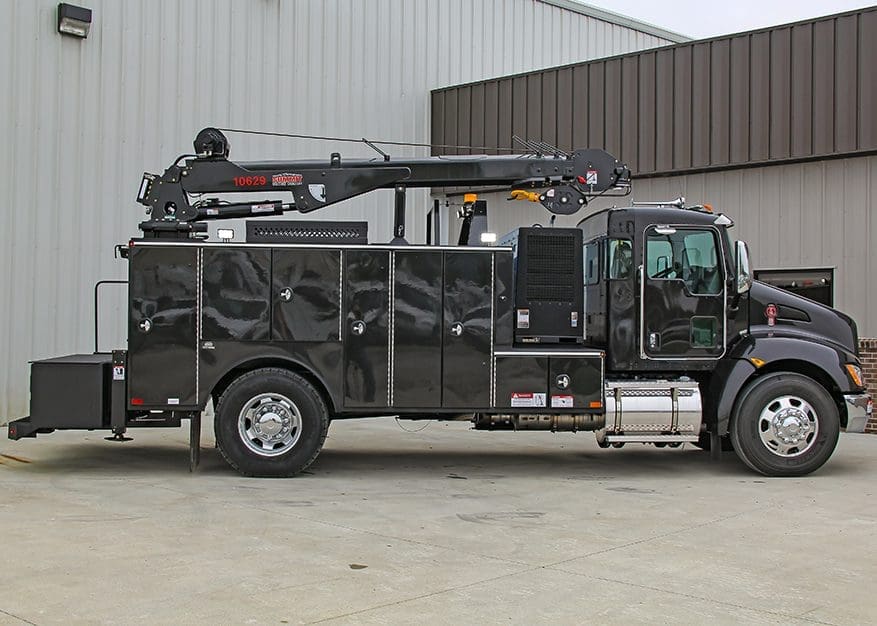

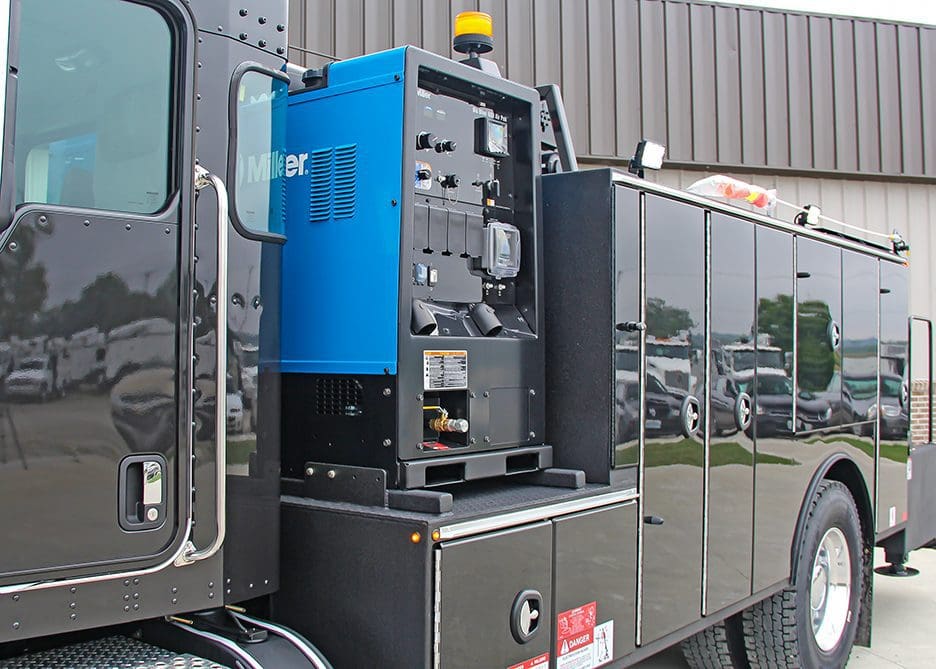

Kenworth welding service truck body with large welder deck

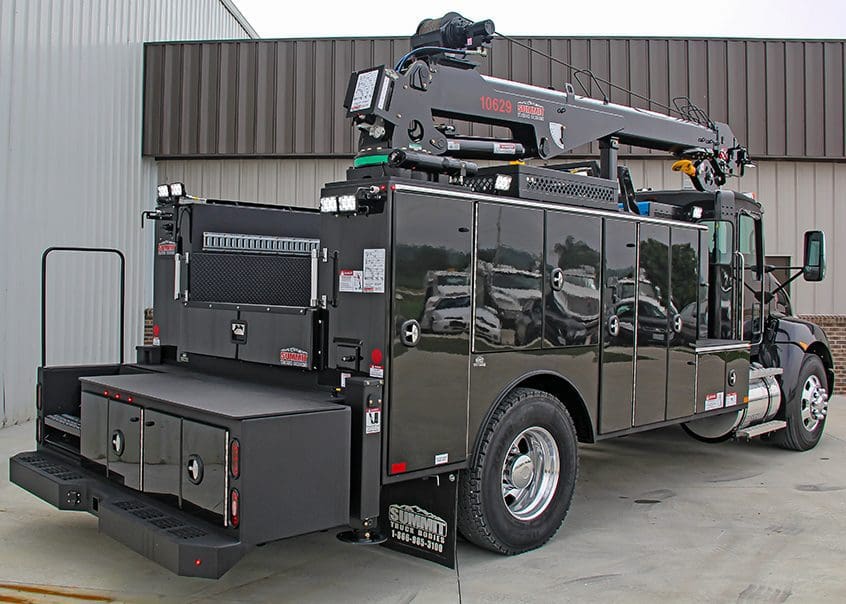

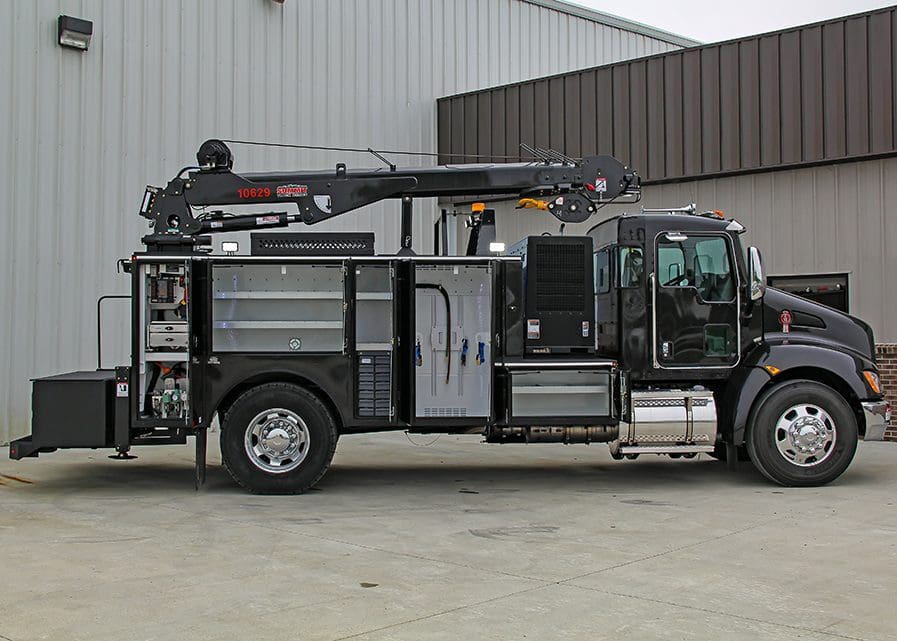

passenger side line bore truck body

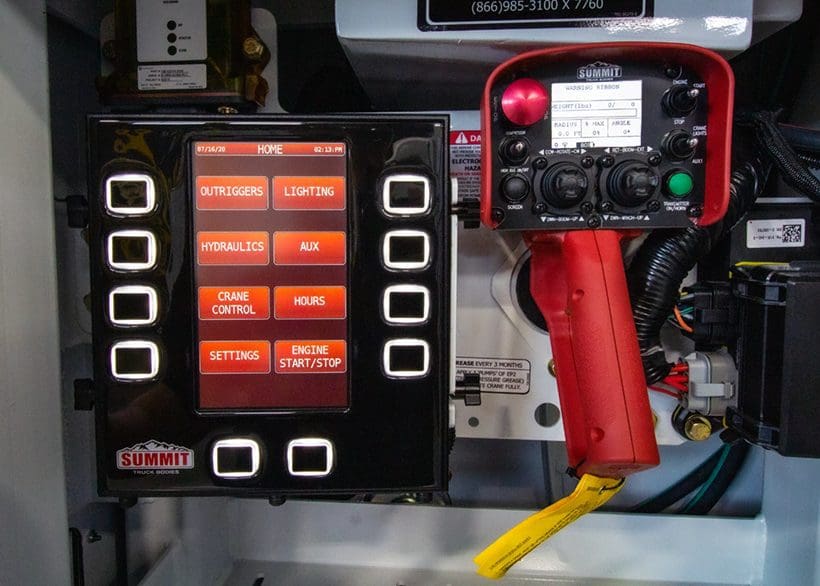

Summit crane control home screen with remote

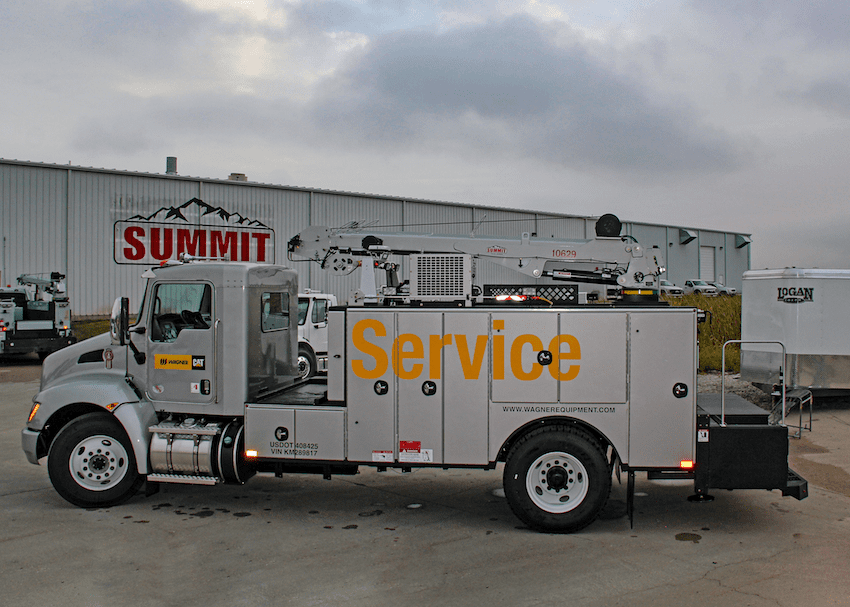

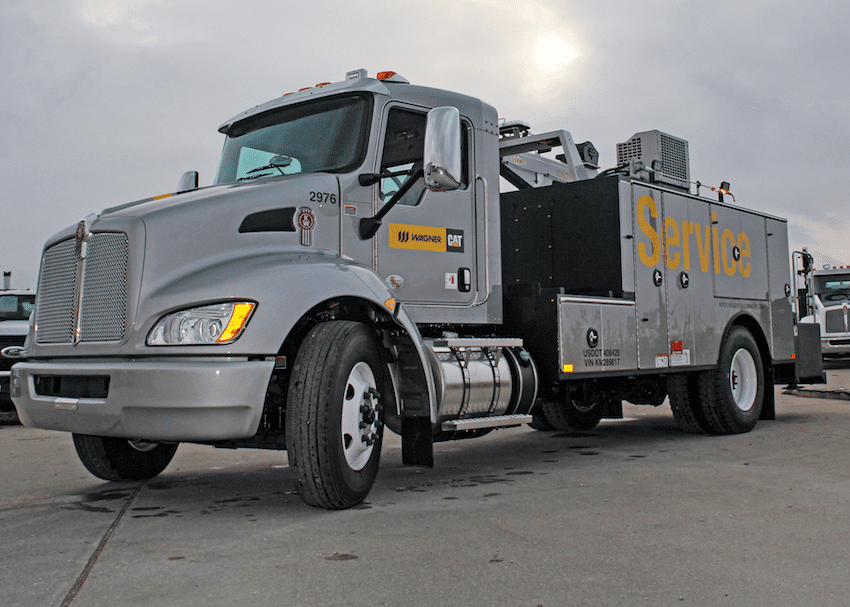

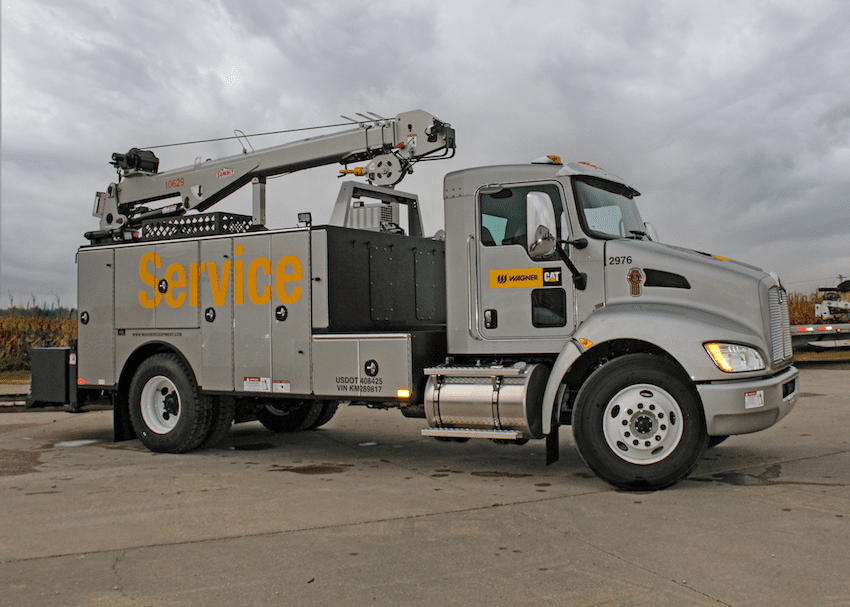

wagner equipment welding service truck for mine equipment

Line Bore/Weld Body

Common Applications

Equipment dealers, mining companies or owner-operators who need a dedicated service truck for welding equipment or to provide welding and line bore services.

Features

    • Standard Body

    • 10 ga. galvannealed steel body construction
    • 1/8” aluminum bolt-on doors with an internal frame
    • Full-length piano style aluminum hinges
    • Automotive-style bulb weather stripping
    • Ergonomic three-point compression door latches keep compartments sealed tight.
    • Aluminum drip rail above compartment doors
    • 3/16” diamond tread plate floor in the cargo area to reduce the risk of slips and falls.
    • Swivel D-ring tie-downs flush-mounted on the cargo area walls: Qty 6
      • 6,000 lbs. Capacity
    • A fully integrated crane support structure
    • 24” D tool bumper with storage compartment
      • Integrated bumper steps made with grip strut provide slip-resistant access to the cargo area.
      • 2.5” 18,000 lbs automotive-style receiver hitch
    • Infinitely adjustable compartment shelves with dividers
    • Bright polished knurled grab handles mounted on the rear side packs aid in safe three-point access to the cargo area.
    • 12” aluminum slam style lockable tailgate
    • Torch bottle storage compartment
      • Vented and reinforced floor
      • Torch bottle retainer with ratchet straps
    • Safety placard and decals

    • Paint & Protective Coatings

    • The three-step Delfleet paint process gives the body a high-quality image and durability.
      • Phosphate wash, PPG epoxy primer, and PPG topcoat.
      • Five year PPG warranty against rust and corrosion
      • Endless color options
    • Line-X protective coating applied to the cargo area, rear bumper, side pack front, top, rear, and the entire length of the bottom edge of the body provides long-lasting protection from harsh elements.
    • Rubberized undercoating applied to the entire underside of the body optimizes durability.

    • Electrical & Light Package

    • LED Light Package
      • Grommeted and flush-mounted
      • Front and rear marker lights
      • Oval stop/tail/turn lights on the rear bumper and headache rack
      • Reverse lights on the rear bumper with a backup alarm
    • LED Rectangle work lights
    • LED compartment strip lights
    • Control lights from ASE main control panel, chassis cab panel, and crane remote
    • 7-way RV style trailer plug
    • Control lights from control panels in the rear compartment and cab.
    • Weatherproof latching main body power panel installed in crane compartment.
      • Includes push-button panel to control crane, outriggers, and 12V body accessories, including lights
    • Electrical wiring harnesses feature Deutsch connectors and braided protective sleeves.

    • Tool Boxes

    • Summit designed and manufactured drawer packs.
    • .125” aluminum construction
    • Heavy-duty 600 lbs. slides fully extended.
    • Lock-in & lock-out slides.
    • Removable drawers.
    • Lock-in drawer dividers standard with optional egg crating.
    • Lockable single-action handle assembly.
    • Drawer depths of  3”, 5”, 7”
    • Custom widths from 12”-50”.
    • Custom riser heights.
    • An integrated top shelf with dividers.
    • Optional slide-out work tray.
    • Wrap or powder coat options add color & durability.
    • Cycle, load, shock, impact damage, incline, vibration tested.

    • Hydraulic System

    • Open center fixed displacement gear pump.
    • PTO mounted to the transmission.
    • 32-gal hydraulic reservoir

    • Air Compressor Systems

    • Hydraulic-driven reciprocating or rotary screw air compressor
    • 40 CFM free air output at 100 psi
    • 175 psi max output (reciprocating)
    • 150 psi max output (rotary screw)
    • Hannay ½” x 50’ HD spring rewind hose reel
      • 50’ air hose terminated with ½” male NPT hose end
      • Payout door on the rear of side pack
    • ASME underbody air receiver
      • 15 gal air storage tank
      • Mechanical air tank moisture drain
    • Norgren  ½” Filter/Lubricator/Regulator
wagner equipment welding service truck for mine equipment Kenworth Line Boring Truck Body Passenger side line bore body with 10k hydraulic truck crane torch bottle storage of welding service truck welding service truck with custom welder storage custom welding service truck bumper custom line bore truck with reel storage bumper welding service truck with custom bumper storage and steps Drivers side Kenworth line bore body

ASE Crane System

Our innovative Advanced Safety Electronics (ASE) Phase 4 control system has elevated jobsite safety and performance.

We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can incorporate the telematics data into your fleet management solution.

  • Increase OSHA Dart Rate and ROI
  • Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
  • Built-in safety features protect against jobsite hazards and ensure safe crane operation.
  • Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
  • Three control points: main control in rear compartment, cab control panel, and wireless remote control
    It prevents crane functionality under unsafe operating conditions
  • Digital displays of real-time load moment indicator (LMI) data on the main panel and remote control.
  • Display alerts in easy-to-read text: e.g., oil temp, outriggers successfully deployed, crane overload, etc.
  • Standard on all hydraulic crane service trucks.

Learn more about  ASE

Summit crane control panel - cut out crane control screen

Learn about pricing.

Contact your regional sales rep to get started on your new custom welding service truck.

Get a Quote

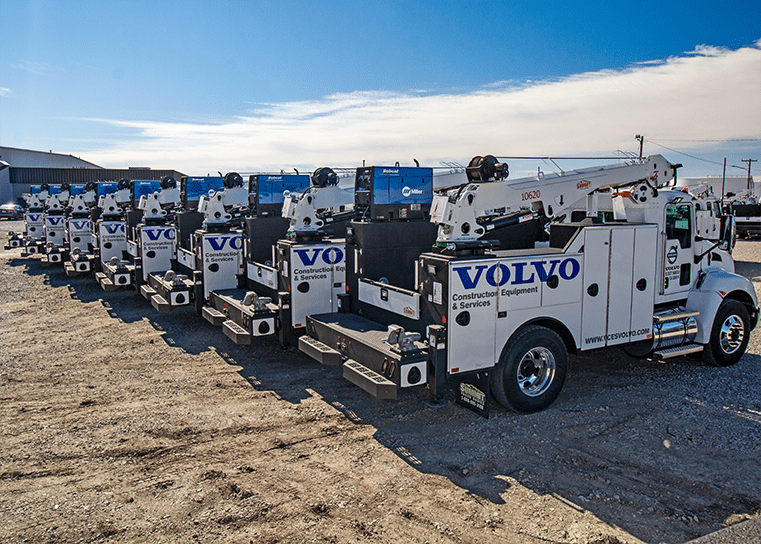

service truck bodies for equipment dealers
