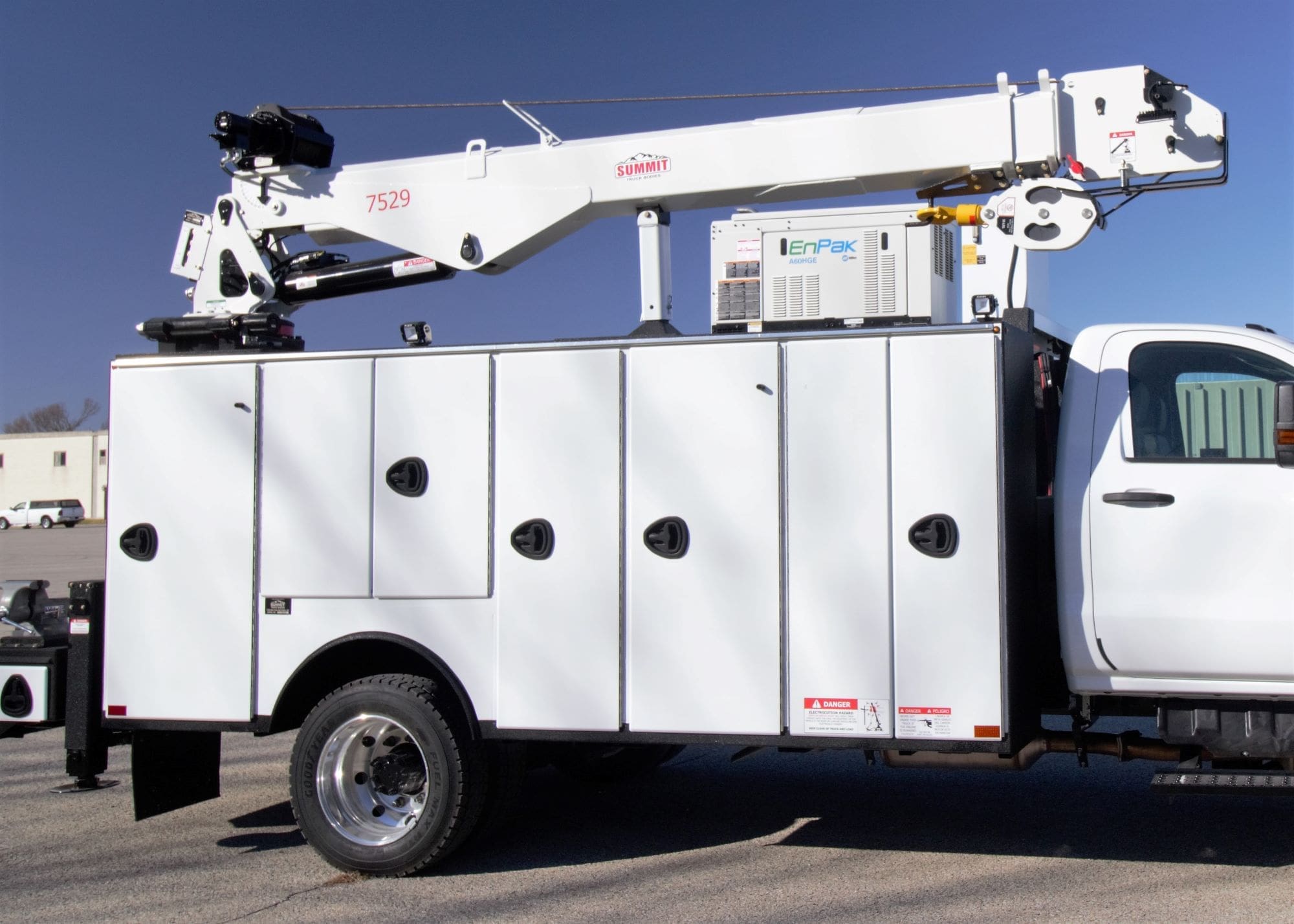

Summit’s truck-mounted hydraulic telescopic truck cranes are designed to meet the demands of today’s heavy equipment service industry.
Our hydraulic and electric truck cranes have a proven track record for dependability, whether deep in a mine or out on a construction site.
To provide the lifting capacity, power, and versatility needed for your application, we offer the heavy-duty hydraulic telescopic truck crane that features lifting capacities from 6,000 lb -14,000 lb and a maximum horizontal reach of 21 feet or 29 feet. Through strength, reliability, and safety, Summit Cranes get the job done.
We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can also incorporate the telematics data into your fleet management solution.

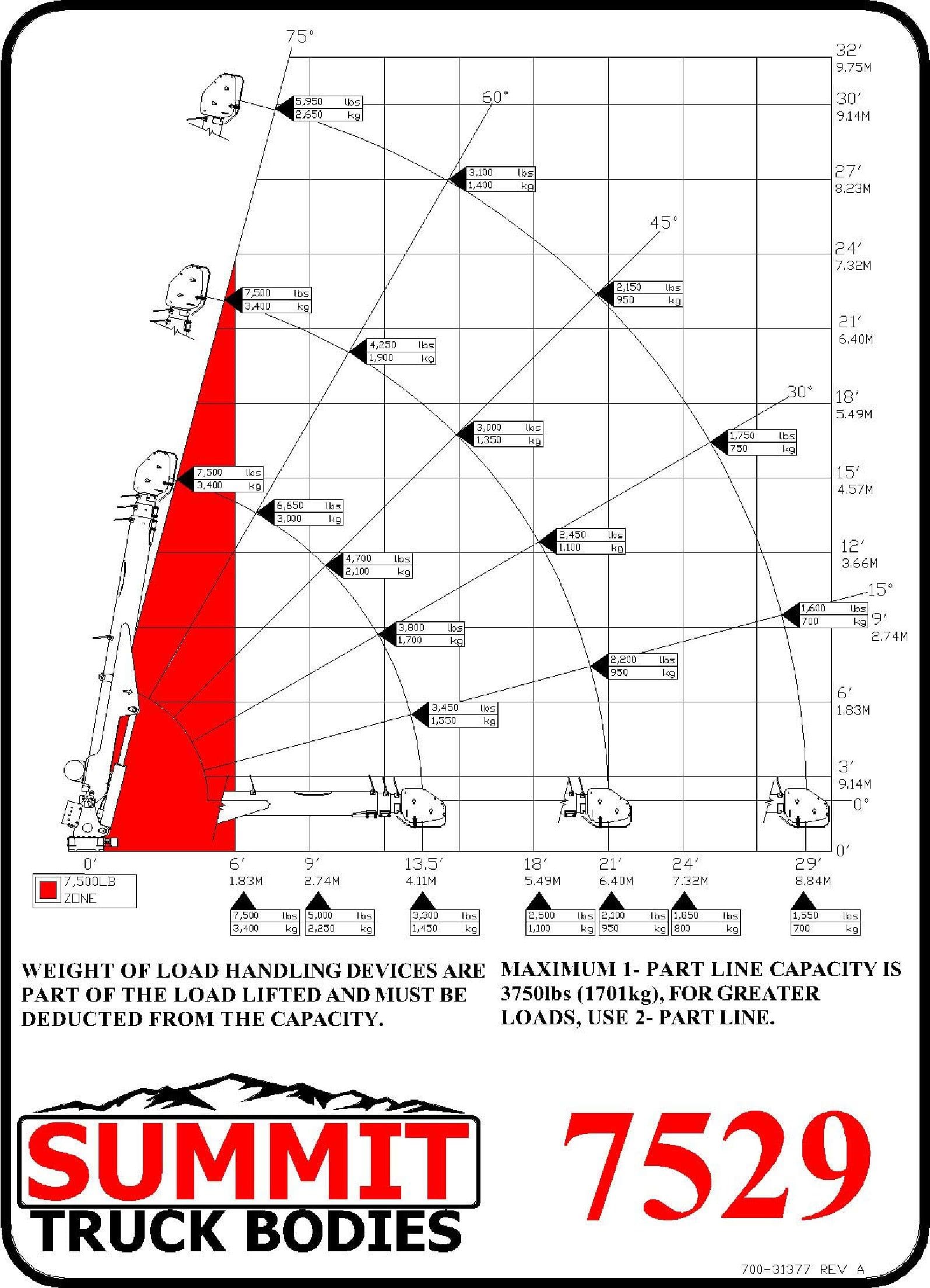

|Max Lift Capacity (lb)||4,000||6,000||6,000||6,000||7,500||10,000||10,000||12,000||14,000|
|Crane Rating (ft-lb)||16,000||36,000||38,000||38,000||45,000||60,000||60,000||66,000||70,000|
|Horizontal Lifting Radius(ret)||7′||10′ 6″||10′ 9″||12’9||13′ 10″||12′ 9″||13′ 7″||13′ 7″||14′|
|Max Horizontal Reach(ext)||16′||22′||20′ 9″||28′ 7″||29′ 7″||20′ 8″||28′ 11″||28′ 11″||29′|
|Max Vertical Lift Height||16′||23′||22′||29′ 4″||22′||29 4″||29′ 4″||30′ 6″||30′ 6″|
|Boom Elevation||-5° to 75°|
|Crane Rotation||360° Continuous||400° Continuous|
|Max Winch Line Speed||22 ft/mn||30 ft/min||60 ft/min|
|Stowed Height (crane only)||34 9/16″||37 7/8″||40 5/8″||40 5/8″||43″||41 1/4″||41 1/4″||42 3/8″||52 1/4″|
|Approx Weight||825 lb||1,817 lb||1,750 lb||1,890 lb||2,100 lb||2,320 lb||2,600 lb||2,640 lb||3,420 lb|
|Mountaing Space Reqd||14″ x 14″||18″ x 18″||21″ x 25″||21″ x 25″||25.5 x 35.5″||21″ x 25″||21″ x 25″||21″ x 25″||25″ x 34.5″|
|Controls||Single-function Wireless Controls||Wireless Control System Standard: ASE Phase 4 or Phase 1(ship out cranes only)|
|Power Supply Reqd||12VDC||
|* Specifications are subject to change without notification.|
