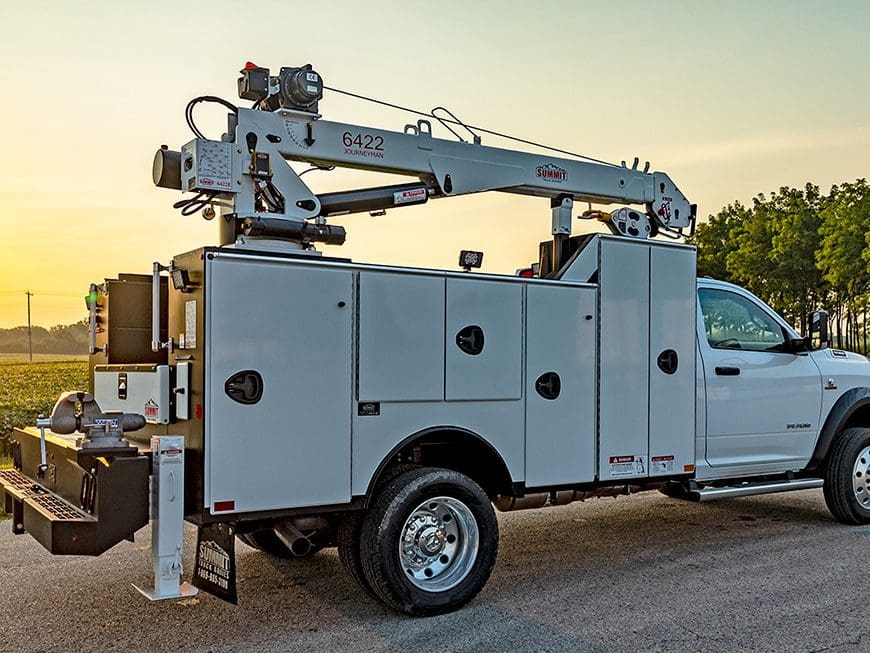

Summit 6422 6K electric crane image

6422 electric Crane

Get My Quote

Electric Telescopic truck cranes

Summit’s truck-mounted service cranes are designed to meet the demands of today’s heavy equipment service industry.

Whether deep in a mine or out on a construction site, our hydraulic and electric telescopic truck cranes have a proven track record for dependability.

To provide the lifting capacity, power, and versatility needed for your application, we offer heavy-duty hydraulic telescopic service cranes that feature lifting capacities from 6,000 lb -14,000 lb and a maximum horizontal reach of 21 feet or 29 feet.  Summit Cranes gets the job done through strength, reliability, and safety.

6422E

Telescopic electric Crane

Crane Comparison Chart

Summit Crane Specifications

Model 4416E 6422E 6620 6629 7529 10620 10629 12629 14629
Max Lift Capacity (lb) 4,000 6,000 6,000 6,000 7,500 10,000 10,000 12,000 14,000
Crane Rating (ft-lb) 16,000 36,000 38,000 38,000 45,000 60,000 60,000 66,000 70,000
Standard Boom Length(ret) 7′ 10′ 6″ 10′ 7″ 12’9 14′ 5″ 10′ 9″ 13′ 7″ 13′ 5″ 13′
Max Horizontal Reach(ext) 16′ 22′ 20′ 8″ 28′ 7″ 29′ 20′ 8″ 28′ 8″ 28′ 9″ 29′
Max Vertical Lift Height 16′ 23′ 22′ 29′ 4″ 22′ 29 4″ 29′ 4″ 30′ 6″
Boom Elevation -5° to 75°
Crane Rotation 360° Continuous 400° Continuous
Max Winch Line Speed 22 ft/mn 30 ft/min 60 ft/min
Rope Diameter 1/4″ 5/16″ 3/8″ 3/8″ 7/16″ 7/16″ 7/16″ 7/16″ 12″
Stowed Height (crane only) 34 9/16″ 37 7/8″ 40 5/8″ 40 5/8″ 43″ 41 1/4″ 41 1/4″ 42 3/8″ 52 1/4″
Approx Weight 825 lb 1,817 lb 1,720 lb 1,900 lb 2,100 lb 2,350 lb 2,620 lb 2,640 lb 3,440 lb
Mountaing Space Reqd 14″ x 14″ 18″ x 18″ 21″ x 25″ 21″ x 25″ 21″ x 25″ 21″ x 25″ 21″ x 25″ 21″ x 25″ 21″ x 25″
Controls Single-function Wireless Controls Wireless Control System Standard: ASE Phase 4 or Phase 1(ship out cranes only)
Power Supply Reqd 12VDC
PTO & Pump (8 gpm @ 2800 psi)
All in one power unit
* Specifications are subject to change without notification.
hydraulic service truck cranes telescopic service truck cranes

Learn about pricing

Talk to your regional sales rep about hydraulic or electric truck cranes you need to help improve safety and productivity on the job site, or call our factory Parts Sales Department to add or replace many of the options.
