ASE phase 5 Control system

Smarter Controls. Enhanced Safety.

Greater Productivity.



ASE Phase 5 control system

The Advanced Safety Electronics (ASE) Phase 5 Control System integrates crane, body, and chassis controls into one intelligent operating platform.

Designed and developed by Summit, Phase 5 combines intuitive controls, advanced safety features, real-time diagnostics, and customizable operating preferences to improve operator confidence, increase productivity, and simplify daily operation.

ASE Phase 5 is more than a crane control system. It is an integrated operating platform that combines advanced safety, fully proportional wireless control, real-time diagnostics, and customizable system settings. From the cab control panel to the touchscreen display and wireless remote, every interface is designed to improve productivity, simplify operation, and keep critical information within easy reach.

Fully Proportional Wireless Remote

Dual two-axis proportional joysticks deliver smooth, precise crane control, while the integrated color display provides live Load Moment Indicator (LMI) data and system status at your fingertips

Up Next | Remote Outrigger Control

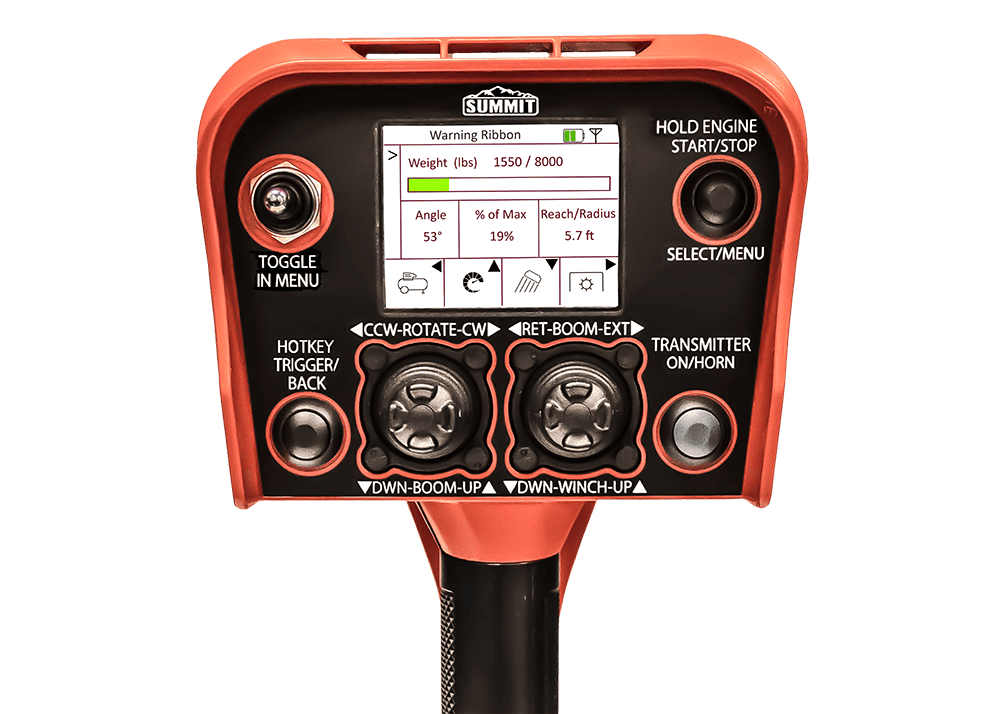

Ase phase 5 control system - crane operation screen.

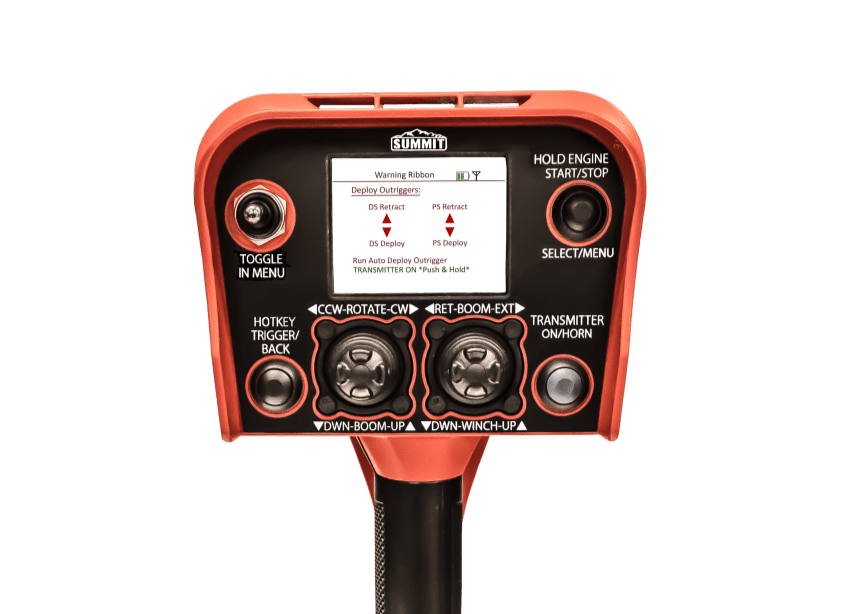

Remote Outrigger Control

Deploy, retract, and monitor outriggers directly from the wireless remote, allowing operators to maintain a safe position while setting up the crane.

Up Next | Auto Stow

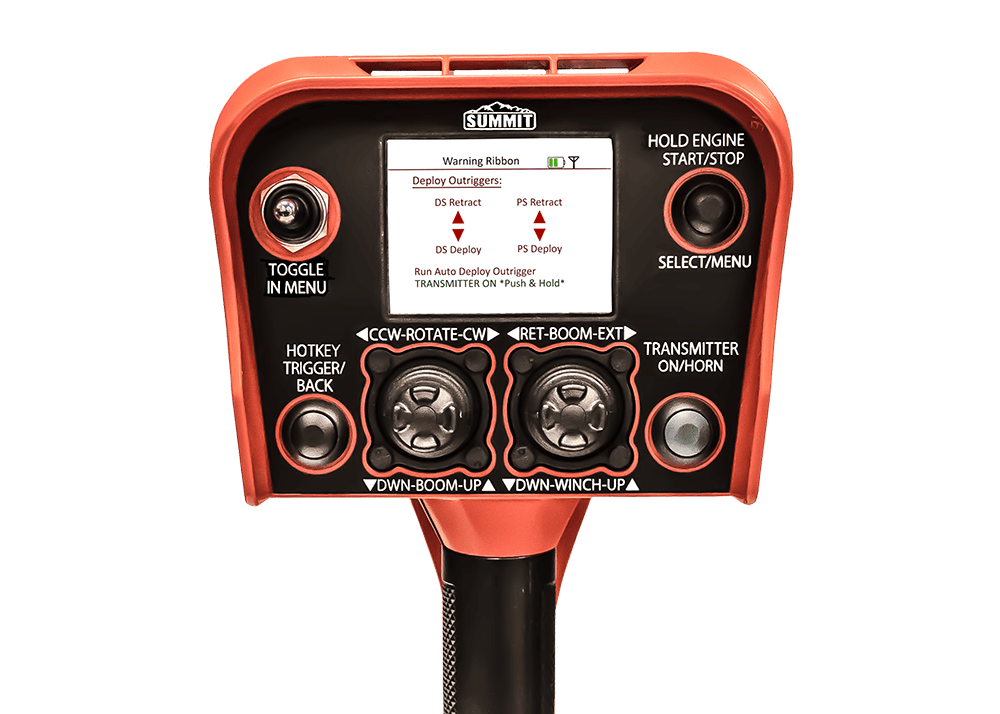

control the outriggers with the Summit ASE phase 5 control

Auto Stow

Automatically return the crane to its stowed position from the wireless remote, helping reduce shutdown time and simplify operation.

Up Next | Main Control Panel

auto stow the crane from the remote control

Main Control Panel

The intuitive touchscreen serves as the central hub for crane operation, system monitoring, maintenance, and digital resources.

Up Next | Truck Options

ASE Phase 5 touchscreen main control panel displaying operation, manuals, and maintenance menu options.

Truck Options

Customize ASE Phase 5 with programmable settings that adapt the control system to your operation. Configure lighting, security, hotkeys, auxiliary functions, display preferences, and other available features through one intuitive interface.

Up Next | Cab Control Panel

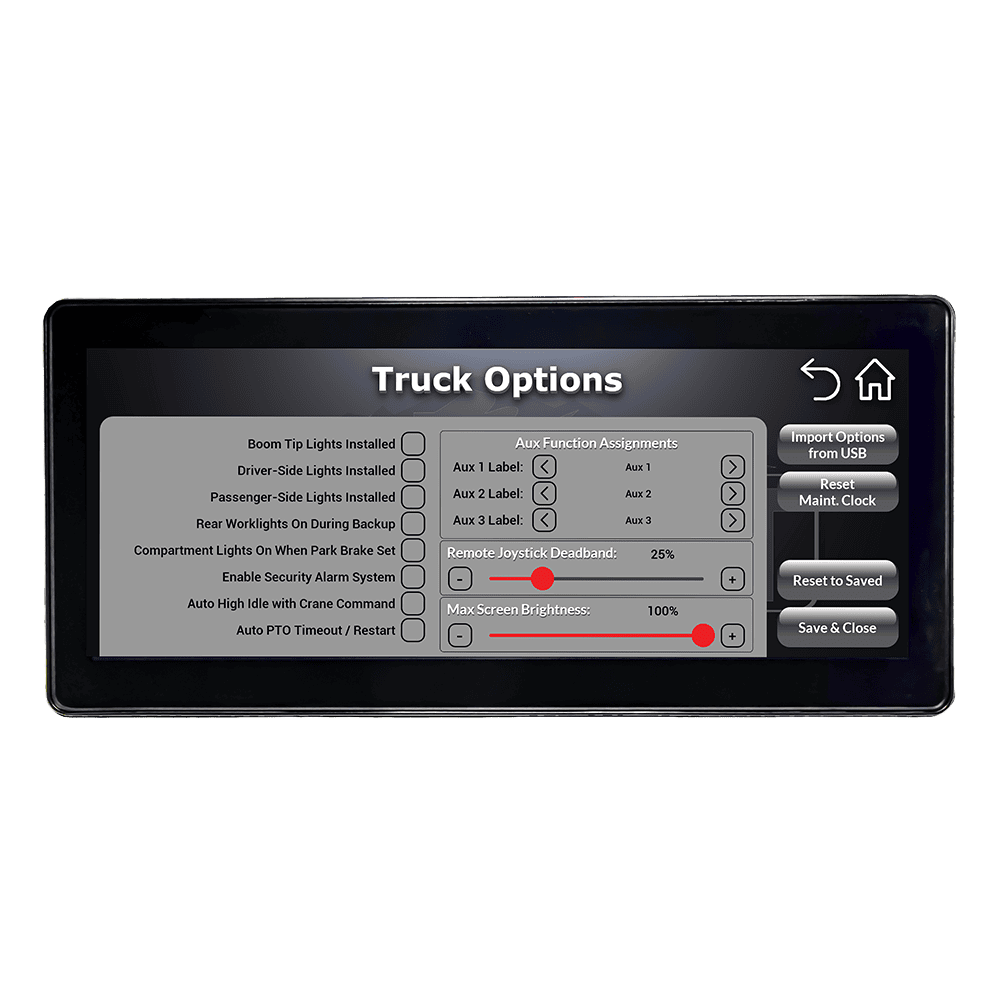

ASE Phase 5 Truck Options touchscreen displaying programmable system settings and operator preferences.

Cab Control Panel

Convenient in-cab controls provide quick access to PTO operation, lighting, auxiliary functions, and system alerts before arriving at the jobsite

Up Next | Fully Proportional Wireless Remote

ASE Phase 5 cab control panel with touchscreen interface for PTO, lighting, auxiliary functions, and system alerts.

ASE Phase 5

    • Advanced Safety Electronics Phase 5

    The ASE Phase 5 Control System integrates crane, body, and chassis controls into a single intelligent operating platform to improve safety, productivity, and operator confidence.

    Features
    • Integrated Controls: Crane, body, and chassis systems
    • Three Operator Interfaces: Touchscreen, wireless remote, and cab control panel
    • Real-Time Load Moment Indicator (LMI): Live operating data on the touchscreen and remote
    • Adaptive Crane Response: Automatically slows crane movement as lifting limits are approached
    • Advanced Safety Monitoring: Continuous monitoring of crane operating conditions
    • Fully Proportional Controls: Smooth, precise crane operation
    • Diagnostics & Maintenance: Built-in system monitoring and service information
    • Telematics Ready: Supports fleet management integration
    • Custom Features: Programmable operating preferences and system settings
    • Software Platform: Designed for future enhancements

    • Main Control Panel

    The intuitive touchscreen serves as the command center for crane operation, diagnostics, maintenance, and customizable system settings.

    Features
    • Crane, PTO, and body controls
    • Outrigger operation and monitoring
    • Air compressor and lighting controls
    • Live Load Moment Indicator (LMI)
    • Truck Options and System Configuration
    • Perimeter Protection settings
    • Man Basket operation mode
    • Maintenance reminders
    • Digital manuals and resources
    • Software version information

    • Wireless Remote Control

    The ergonomic wireless remote combines fully proportional joystick control, real-time operating data, and automated functions to deliver precise, confident crane operation.

    • Dual Two-Axis Proportional Joysticks: Smooth, simultaneous multi-axis control with infinitely variable speed, a built-in 10% safety deadband, and spring-return (deadman) operation for precise, intentional crane movement.
    • Integrated Color Display: Live LMI data, system status, warnings, and operating information.
    • Engine & PTO Control: Start/stop the engine and control key truck functions from the remote.
    • Automated Functions: Auto Deploy outriggers and Auto Stow crane simplify setup and teardown.
    • Programmable Hotkeys: Assign frequently used functions for faster operation.
    • Drop Detection: Automatically disables crane functions if the transmitter is dropped.
    • Auxiliary Controls: Operate programmable auxiliary functions directly from the remote.

    • Cab Control Panel

    Convenient in-cab controls provide quick access to essential truck functions and system alerts without adding extra switches to the dashboard.

    • PTO Control: Engage and disengage the PTO from the cab.
    • Lighting Control: Operate work lights and body lighting.
    • Auxiliary Controls: Programmable auxiliary functions eliminate the need for additional upfitter switches.
    • System Alerts: Clear on-screen notifications and flashing indicators keep operators informed of system status.
    • Remote Status Alerts: Notifications for missing wireless remote, boom not stowed, and outriggers not stowed.
    • Auto-Dimming Display: Ambient light sensing with automatic and manual brightness adjustment.

ASE Phase 5 is standard on all trucks with hydraulic cranes

Crane Models

829 Hydraulic Service Crane

1229 Hydraulic Crane
