4 Series

light duty service truck

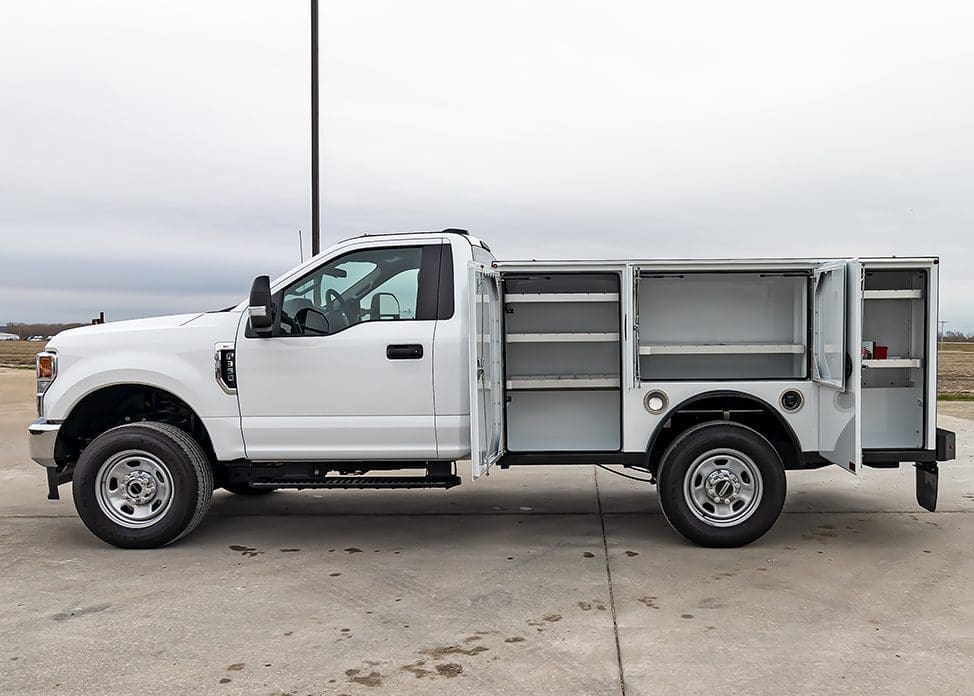

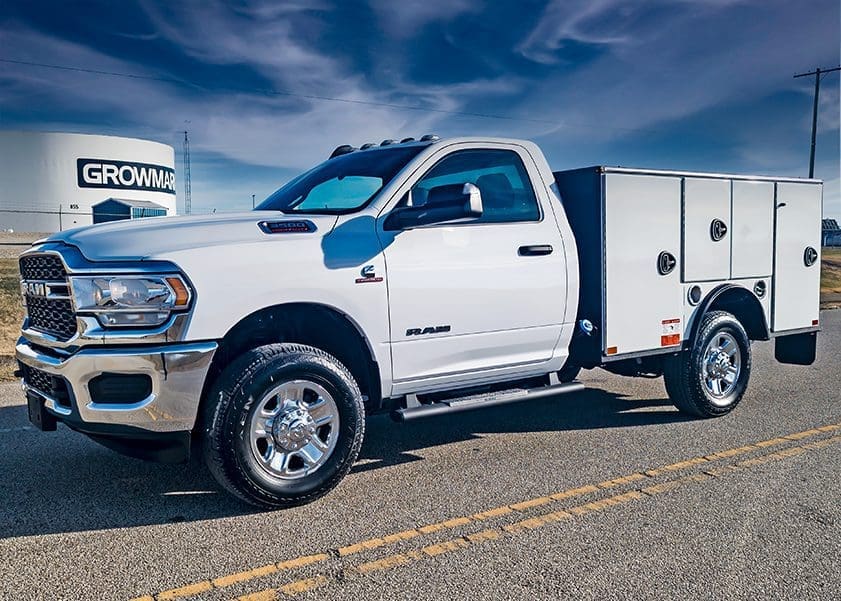

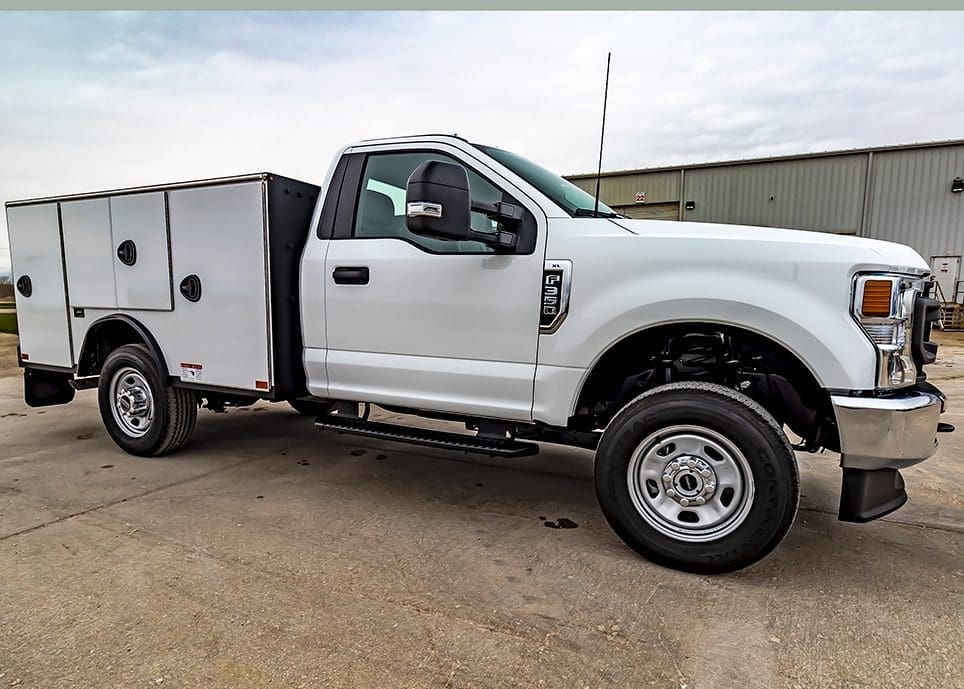

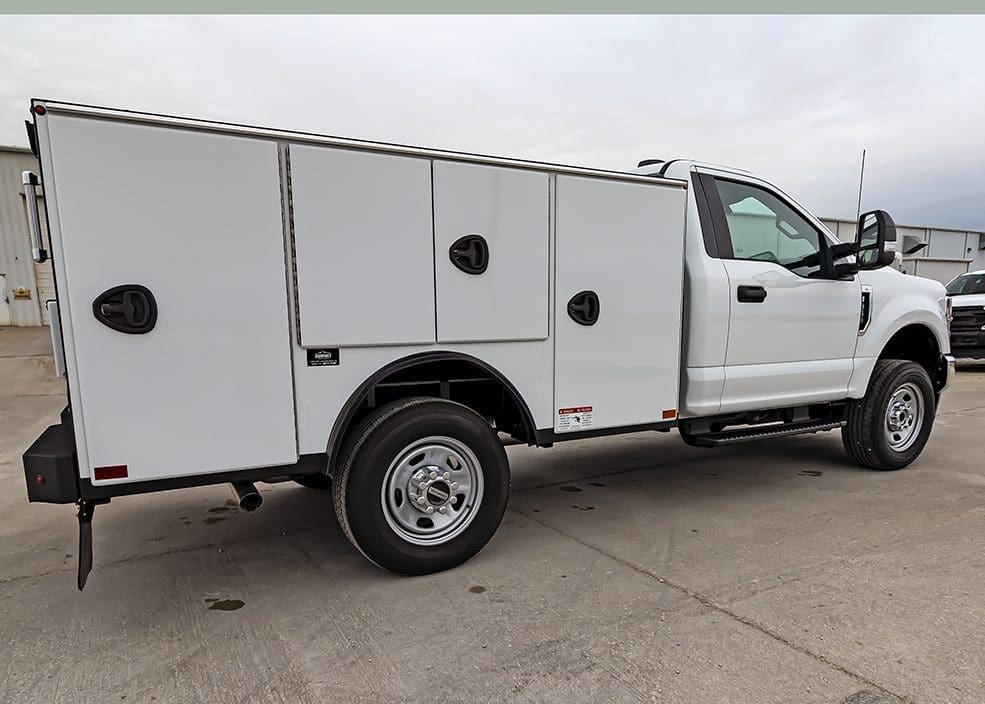

Summit’s light service truck body, the 4 Series, is 9′ long with a 6″ bumper and designed for an 11.5K GVWR chassis.

If you want Summit quality manufacturing and don’t need a larger medium or heavy-duty service truck, this is the service truck for you.

Highlights

Summit truck bodies are engineered for strength and durability, built with premium materials and quality manufacturing.

Our LED light package includes flushing mounted S/T/T lights, compartment, and work lights.

PPG Delfllet Paint Process & Line-X protective coating improves image and durability.

You can buy the 4 Series as a complete unit or make a body-only purchase.

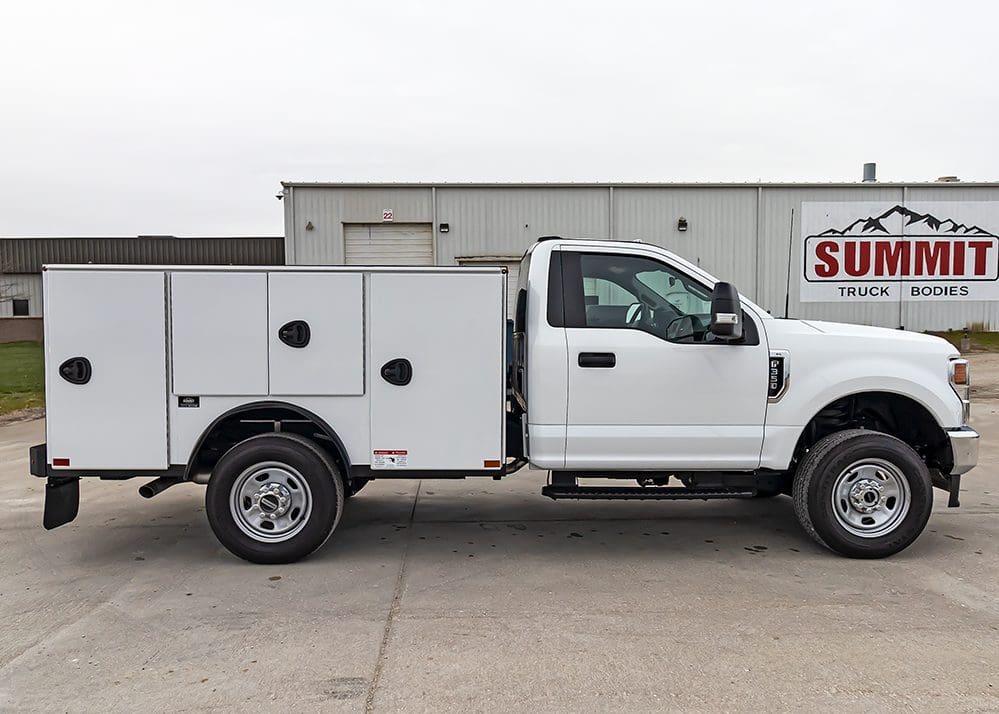

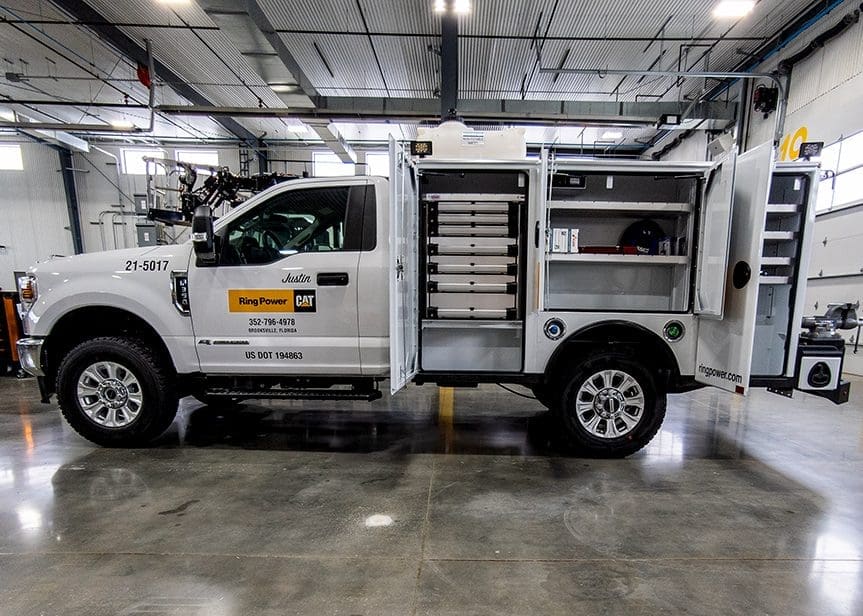

Summit 4 Series light duty mechanics service truck

light duty service truck with protective coatings

high quality lightweight mechanics truck

4 Series

Common Applications

The 4 Series light-duty service truck is for companies that need smaller service trucks without a crane. It is an excellent addition to a diverse service fleet that completes different types of service work: municipalities, utility sector, equipment dealers, construction companies, and HVAC/plumbing contractors.

Features

Standard Body

14 ga. galvannealed steel body construction
1/8” aluminum bolt-on doors with an internal frame
Full-length piano-style aluminum hinges
Automotive-style bulb weather stripping ensures the doors seal properly and will prevent water from leaking inside the compartments.
Ergonomic three-point compression door latches keep compartments sealed tight.
The aluminum drip rail above all compartment doors prevents water from leaking inside the compartments.

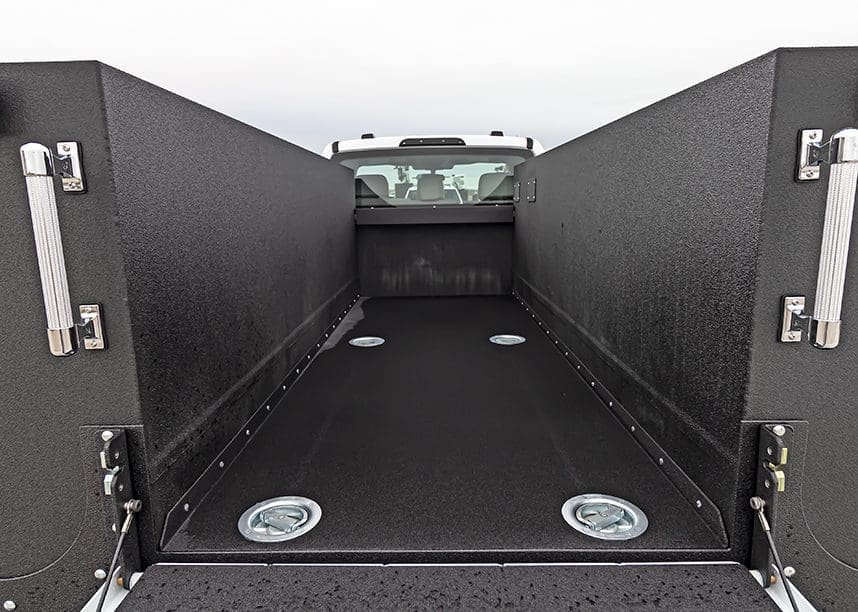

Swivel D-ring tie-downs flush-mounted on the cargo floor: Qty 4
- 6,000 lbs. Capacity

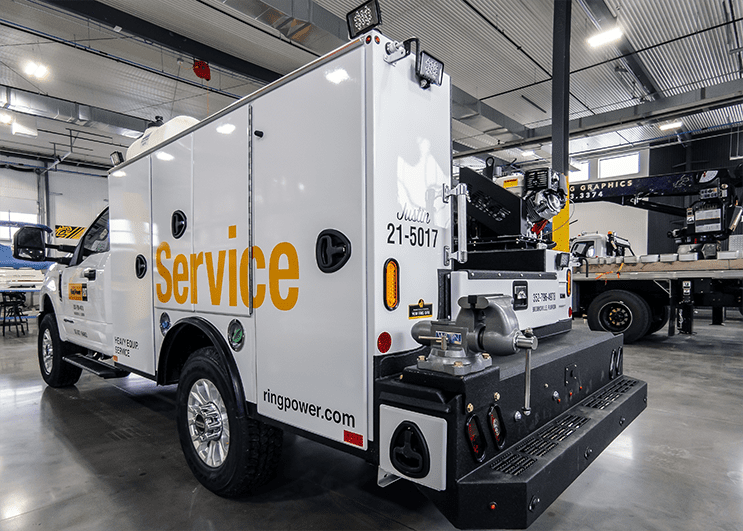

6” bolt-on bumper

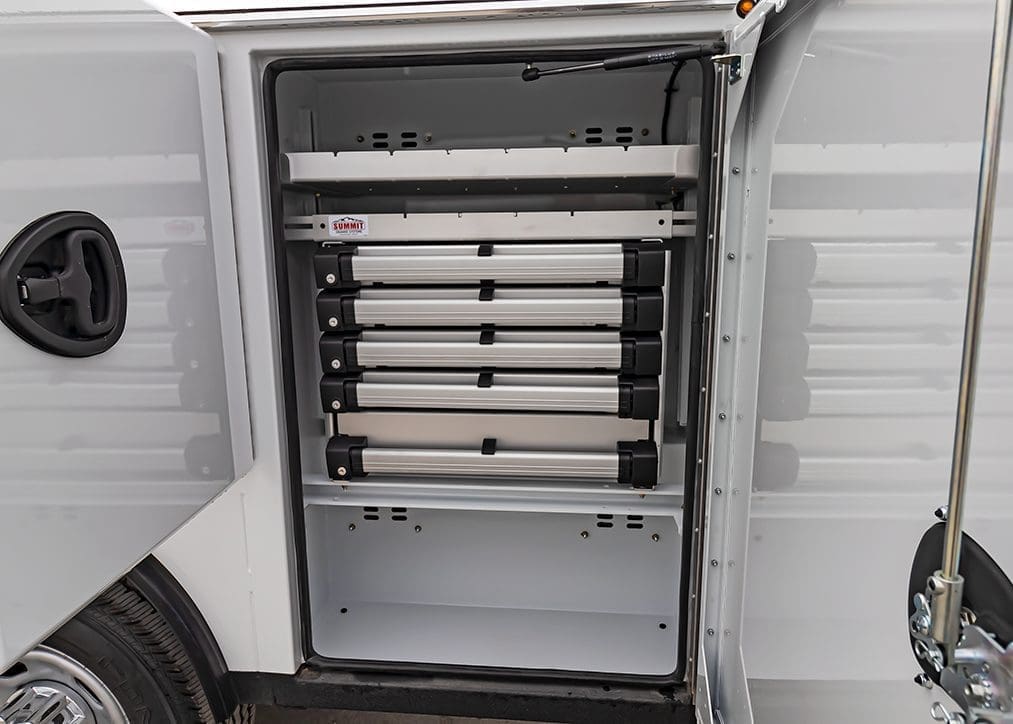

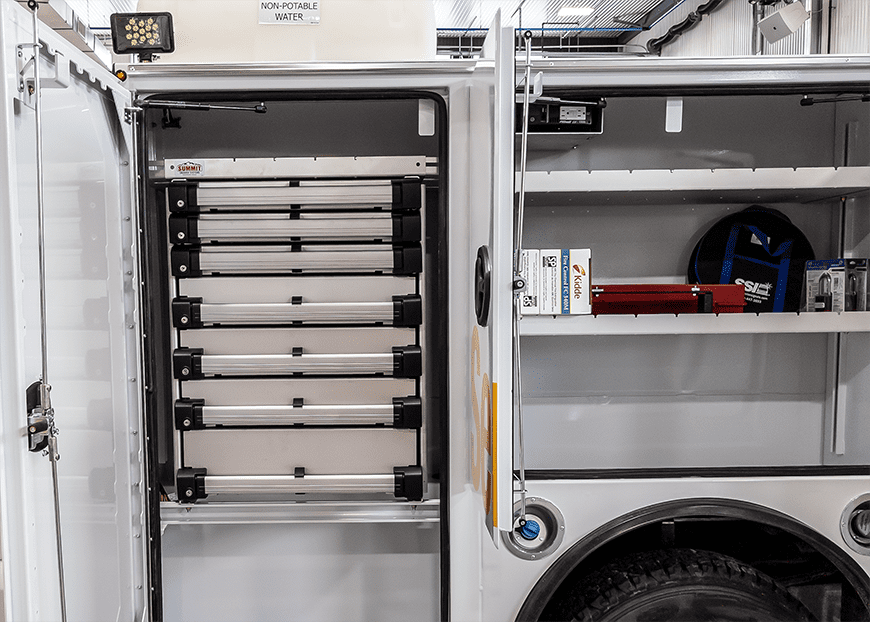

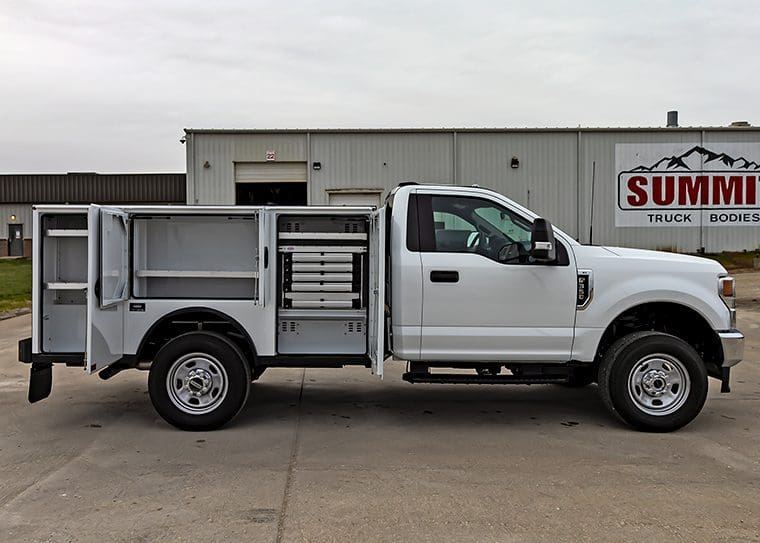

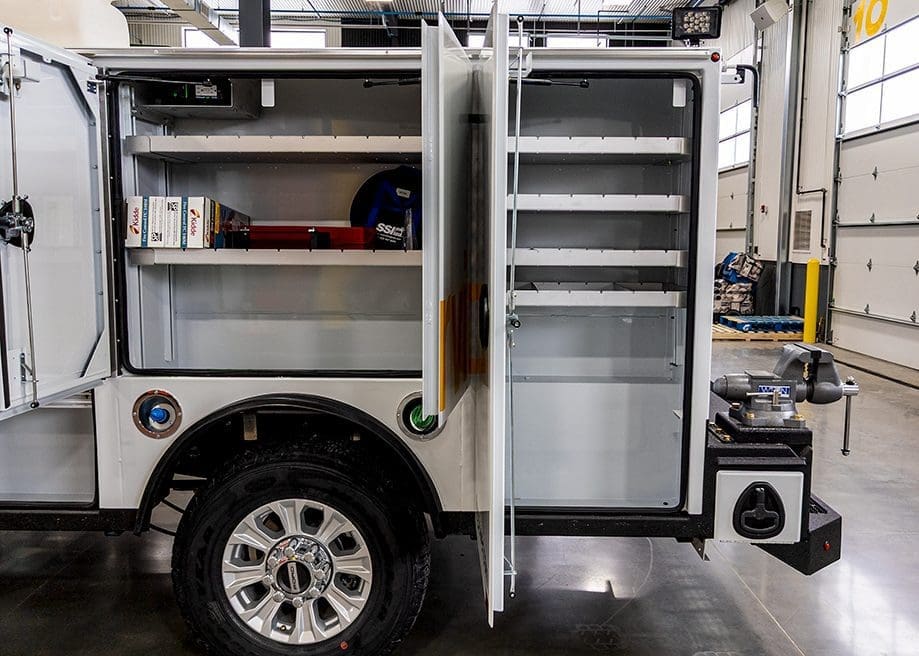

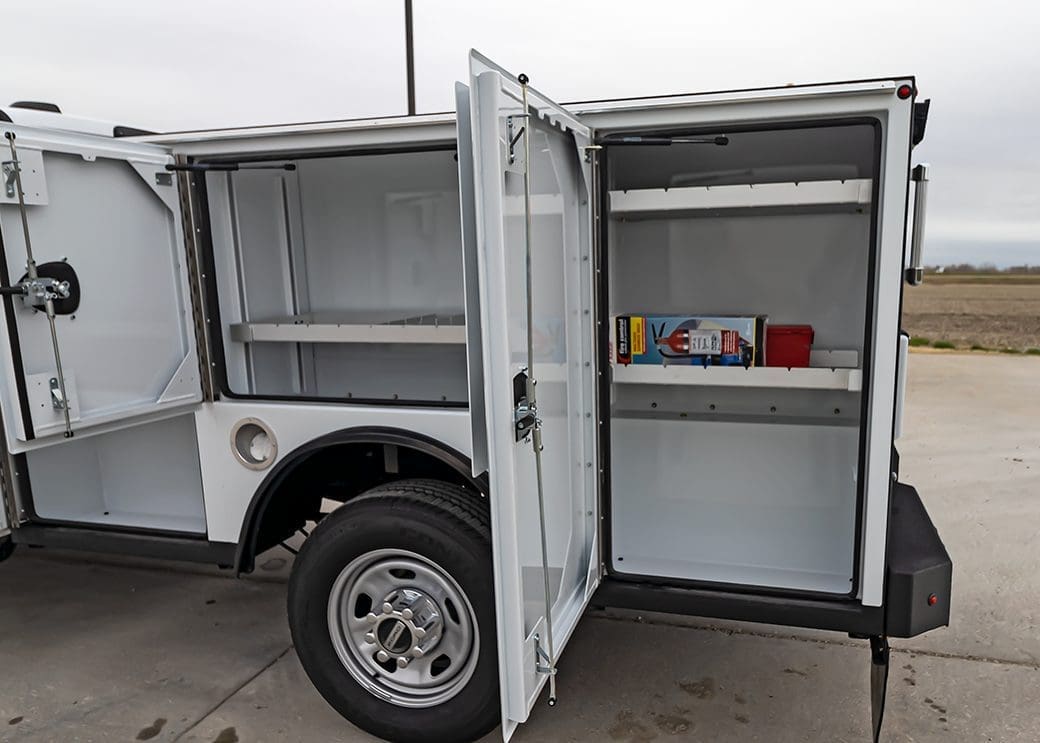

Infinitely adjustable compartment shelves with dividers
Bright polished knurled grab handles mounted on the rear side packs aid in safe access to the cargo area.
10” aluminum slam-style lockable tailgate
Safety placards and decals

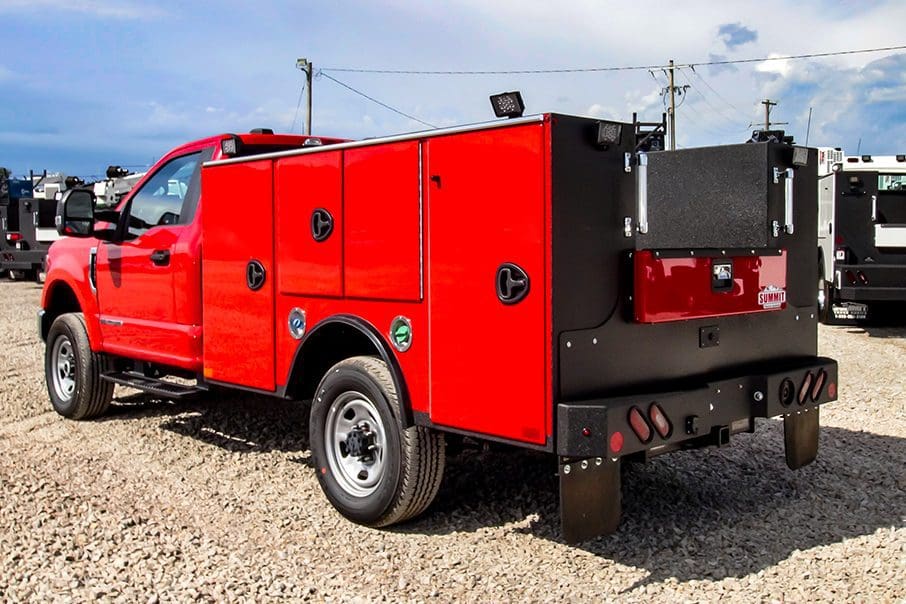

Paint & Protective Coatings

- The three-step Delfleet paint process gives the body a high-quality image and durability.
  - Phosphate wash, PPG epoxy primer, and PPG topcoat.
  - Five year PPG warranty against rust and corrosion
  - Endless color options

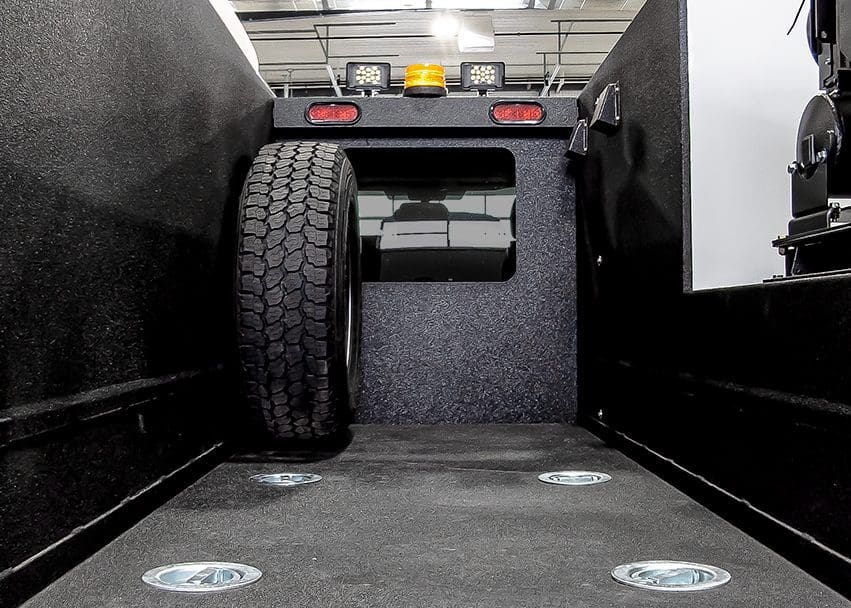

- Line-X Ultimate Coatings applied to the cargo area, rear bumper, side pack front, top, rear, and the entire length of the bottom edge of the body provides long-lasting protection from harsh elements.
- Rubberized undercoating applied to the entire underside of the body optimizes durability.

Electrical & Lighting

LED Light Package
- Grommeted and flush-mounted
- Front and rear marker lights

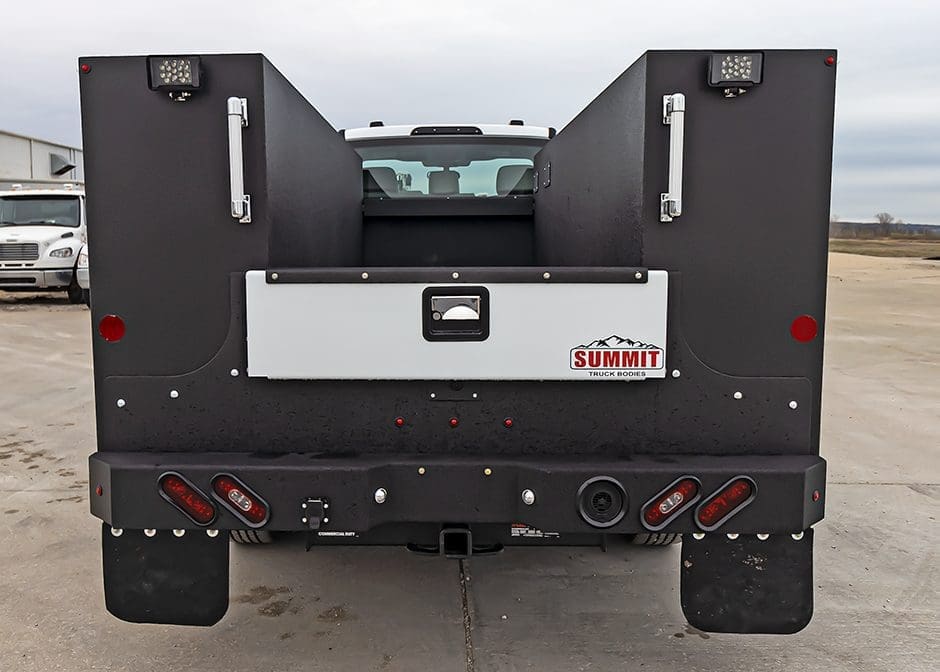

- Oval stop/tail/turn lights on the rear bumper
- Reverse lights on the rear bumper with a backup alarm
LED rectangle work lights: Qty 4
LED compartment strip lights
Control lights with OEM switch in the cab
7-way RV style trailer plug
Electrical wiring harnesses feature Deutsch connectors and braided protective sleeves.
