You'll see our attention to detail in our high-quality, durable lube skids
Lube Skids
lube skids

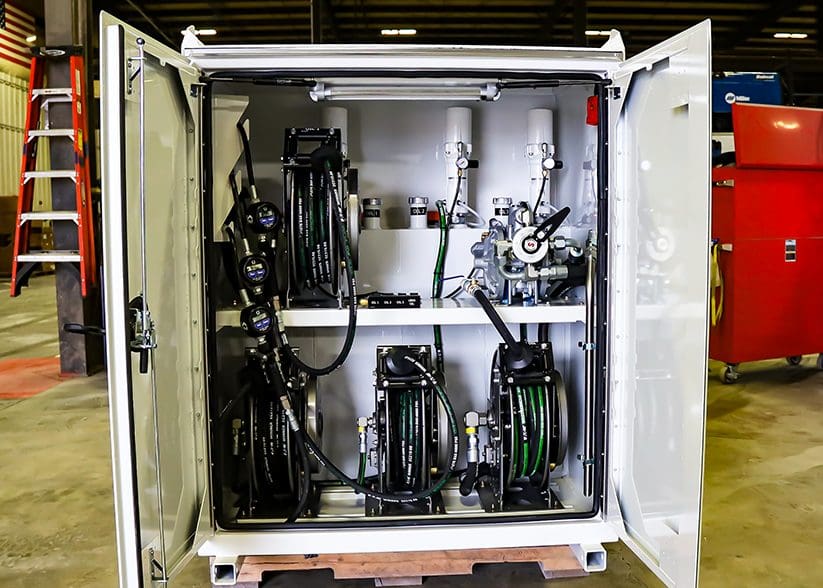

Summit Lube Skids are an affordable way to provide routine maintenance services at the job site.
Save time and increase productivity by using a mobile lube trailer to perform routine preventative maintenance on your equipment in the field. Plus, lube skids are more affordable than a dedicated lube service truck. Increase the versatility of a service truck by mounting in the truck bed with reels accessible from a compartment or reel box.
You can store it at the shop and load it into the service truck cargo area when you need it. And as always, we will custom-design a lube skid or trailer to complete your project and budgetary requirements.
Highlights
Lube Skids
Common Applications
Construction companies with a large fleet of equipment or equipment dealers who service their rental fleet or provide lube service to their customers will benefit from having a lube skid.
Features
- 10 ga or 12 ga galvannealed steel frame or shell construction
- 1/8” aluminum bolt-on doors with an internal frame
- Full-length piano style aluminum hinges
- Automotive-style bulb weather stripping
- Ergonomic three-point compression door latches keep compartments sealed tight.
- Aluminum drip rail above compartment doors
- Safety placard and decals
- The three-step Delfleet paint process gives the lube frame or tank shell a high-quality image and durability.
- Phosphate wash, PPG epoxy primer, and PPG topcoat.
- Five year PPG warranty against rust and corrosion
- Endless color options
- Line-X protective coating applied in areas that require long-lasting protection from harsh elements.
- We will add in the required electrical needed to ensure your lube skid has power and lights you needs.
- We will install a control panel in a location that makes the most sense for your application.
Body
Paint and Protective Coatings
Electrical and Lighting
Lube Skids Specifications
- Select your lube systems
- Choose from a variety of standard lube skid configurations.
- Custom design a configuration with the lube systems and tanks you need.
Oil Product Delivery
- Delivery circuit options:
- Flow rates from 2.5 up to 20 gpm
- Hydraulic-driven 1:1 gear pump
- Air-operated piston pump with flow rates
- Tank-mounted Rochester level gauges with remote readout

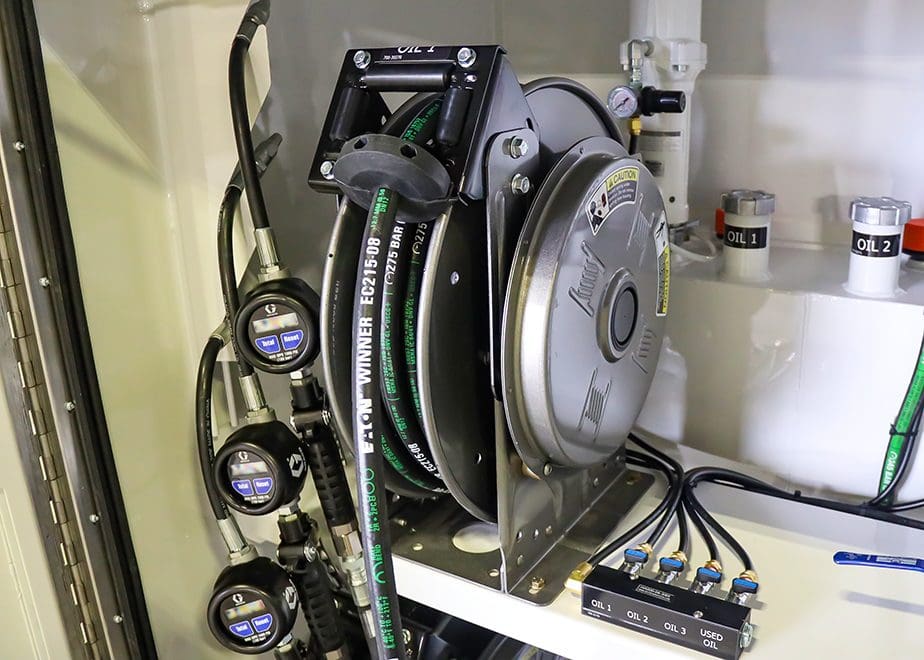

- Digitally metered nozzle sized to match circuit delivery rates
- Tank Options
- Carbon Steel: 50,60,90,120,150,250 gal tanks
- Poly Tanks: 40,60,90,150,150,200,300 gal tanks
Antifreeze Delivery
- Delivery Circuit Options.
- Hydraulic-driven centrifugal
- Air-operated double diaphragm pump.
- Tank-mounted Rochester level gauges with remote readout
- Non-metered delivery nozzle
- Optional digital metered nozzle
- Tank Options
- Poly Tanks: 40,60,90,150,150,200,300 gal tanks
- Stainless Steel: 50,60,90,120,150,250 gal tanks
Waste Oil & Antifreeze
- Air-operated double diaphragm pumps with directional valves
- Single line load and offload of used product
- 1” AODD for used oil.
- ½” AODD for used antifreeze
- Larger sizes are available for higher flow requirements.
- An electronic level indicator with shutoff prevents overflow of the waste system.
- Tank Options
- Poly Tanks: 40,60,90,150,150,200,300 gal tanks
- Stainless Steel: 50,60,90,120,150,250 gal tanks
Chassis Grease System
- 120# and 400# grease systems
- Air-driven or hydraulically-driven
- Hannay grease reel and nozzle
DEF Delivery System
- Air-operated DEF diaphragm pump
- Hannay ½” x 50′ SWR Reel with ½” hose
- Metered nozzle
- Tank Options
- Stainless Steel: 50,60,90,120,150,250 gal tanks
Explore Lube Skid Options & Accessories
- Air Compressors
- Drip Pan
- Used Filter Storage
- Tool Drawer Package
- Battery power
- Heat package
- Fire extinguishers
- Lube Systems
