You'll see our attention to detail in our high-quality, durable enclosed lube truck van bodies.

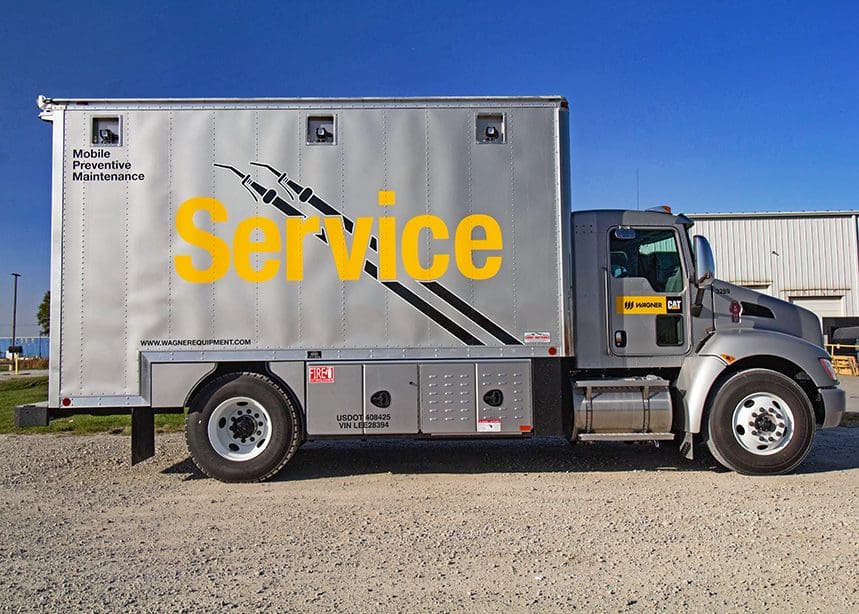

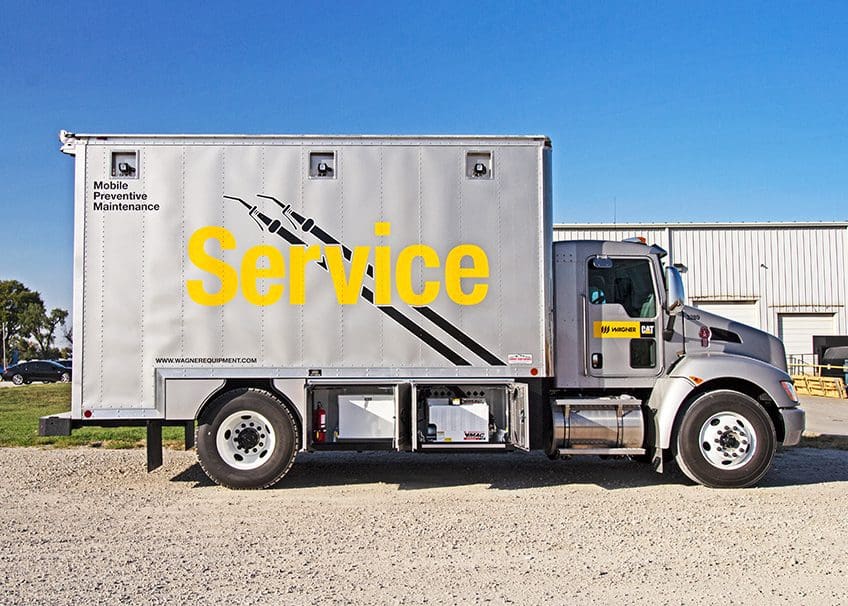

Enclosed Lube Truck Body
Enclosed Lube Truck Body
You can maximize equipment uptime by performing routine services in the field with a Summit Enclosed Lube truck body.
We understand preventative maintenance is crucial to ensuring your equipment works and saves time and money on repair costs.
That is why we help you choose a medium to heavy-duty chassis and the lube systems you need.
Plus, the enclosed lube truck body protects field technicians and equipment from harsh environments.
Highlights
Enclosed Lube Bodies
Common Applications
An enclosed lube truck is for any company with a large fleet of equipment to repair, such as a construction company or equipment dealer with customer service agreements. In addition, equipment repair companies can also offer preventative maintenance to their customers. Learn more about the advantages of using a lube truck to perform maintenance in the field.
Features
- Insulated van body with required DOT lighting
- 14” rear bumper with fold-down step and walk platform
- Underbody boxes for storage

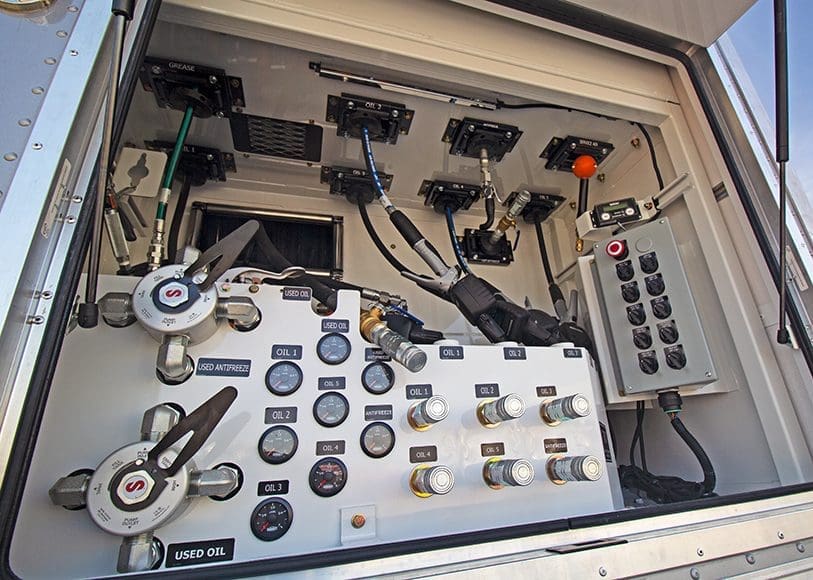

- The rear reel and pump rack are installed inside the rear cargo area of the van body.

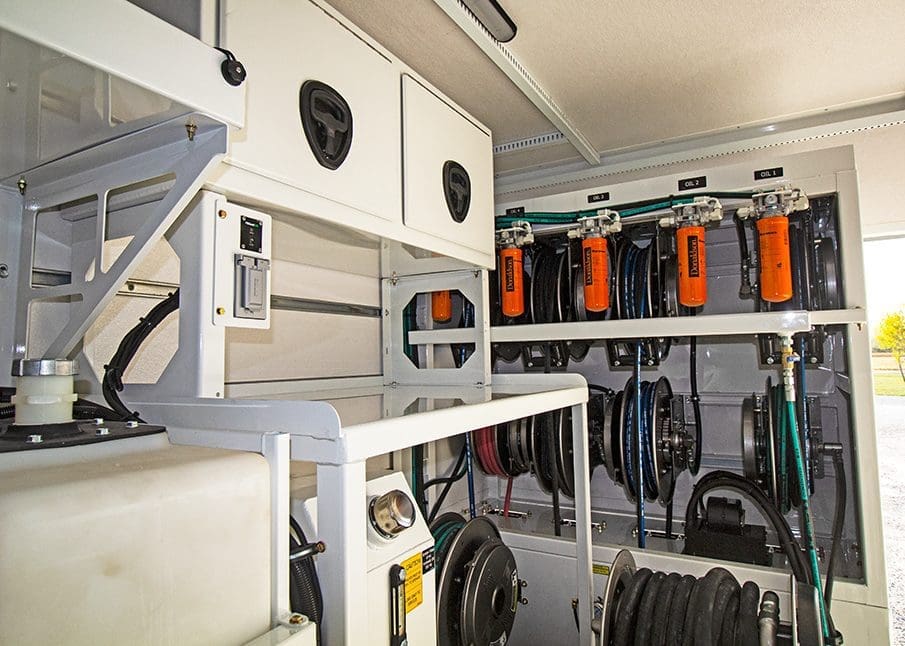

- Product reels on the reel rack with fairleads facing rearward for easy access
- Grease gun rack
- Nozzle holder
- System operation switches mounted in the weatherproof control box
- A hydraulic system control valve is installed inside the van under the catwalk.

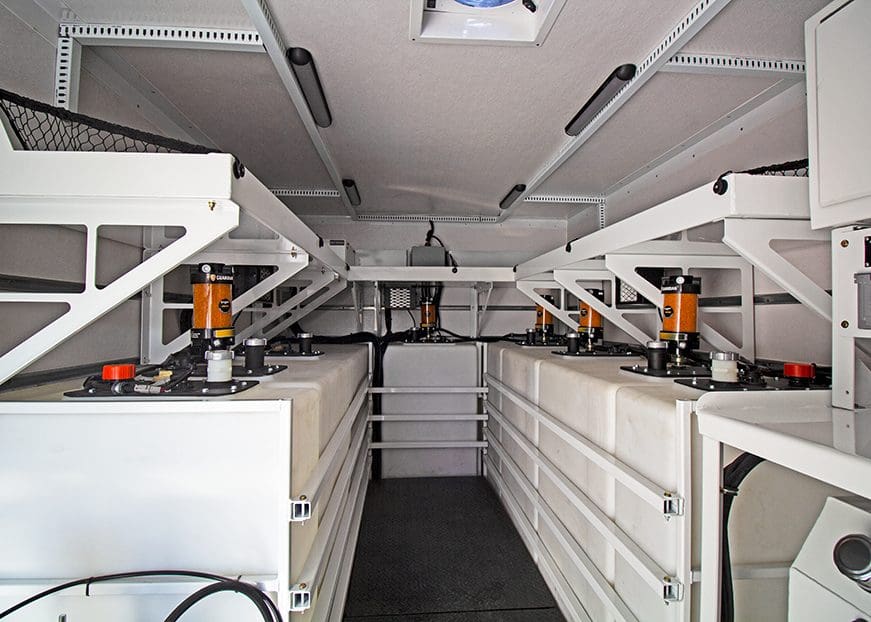

- Interior shelving at the front of the body and along the sides of the tanks
- Includes bungee cargo netting to secure cargo
- The three-step paint process gives the body a high-quality image and durability.
- Phosphate wash, epoxy primer, and topcoat
- Five-year warranty against rust and corrosion
- Endless color options
- Line-X Ultimate Linings protective coating applied to the cargo area, rear bumper, and the entire length of the bottom edge of the body provides long-lasting protection from harsh elements.
- Rubberized undercoating applied to the entire underside of the body optimizes durability.
- LED Exterior Light Package
- Grommeted and flush-mounted
- Front and rear marker lights
- Oval stop/tail/turn lights on the rear bumper and headache rack
- Reverse lights on the rear bumper with a backup alarm
- LED Rectangle work lights
- LED compartment strip lights
- Amber Strobe lights
- Control lights using the main control panel or in-cab switches

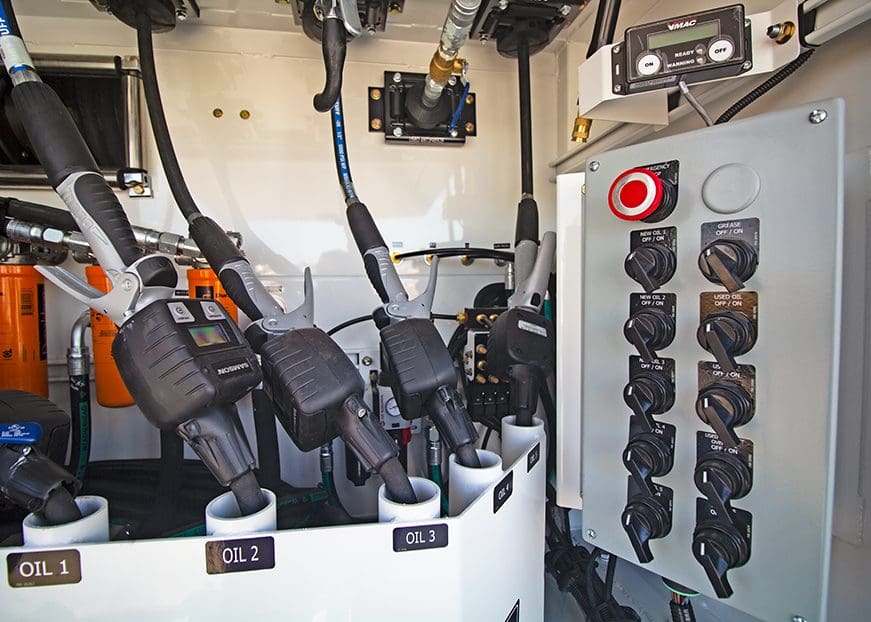

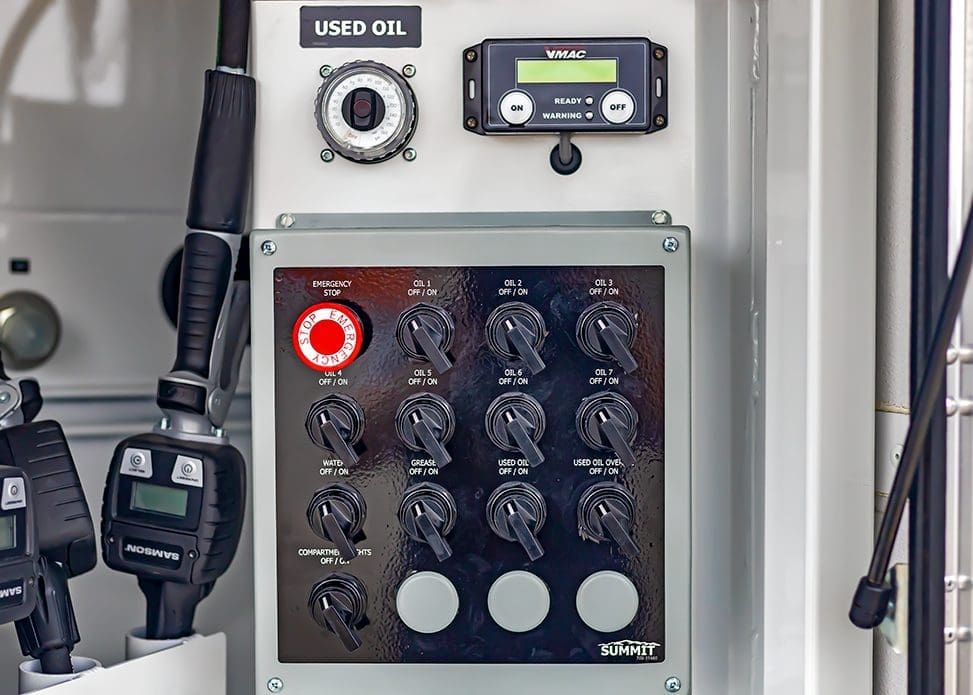

- The master control panel is mounted on the reel rack accessible from the van exterior.
- Summit designed and manufactured drawer packs
- .125” aluminum construction
- Heavy-duty 600 lbs. slides fully extend
- Lock-in & lock-out slides
- Easily removable drawers
- Lock-in drawer dividers are standard. Egg crating is optional.
- Lockable single-action handle assembly.
- Drawer depths of 3”, 5”, 7”
- Custom widths from 12”-50”
- Custom riser heights
- An integrated top shelf with dividers helps to maximize storage space.
- Optional slide-out work tray
- Wrap or paint options add color & durability.
- Cycle, load, shock, impact damage, incline, and vibration tested.
- A heavy-duty PTO-mounted variable displacement hydraulic pump with a load-sensing control allows flow regulation to suit application requirements.
- Hydraulic reservoir
- Designed for flooded suction operation
- 2.5” 150-micron mesh strainer with gate valve shut off
- 6-micron return filter with filter change valves
- The reservoir is filled with ISO 46 hydraulic oil with cold climate low viscosity oil available.
- System control on the master control panel with an in-cab shut-off switch
Body
Paint & Protective Coatings
Electrical and Light Package
Tool Boxes
Hydraulic System
Enclosed Lube Truck Body Specifications
Our lube trucks are custom-built, which means we build to your specifications. We can work together to select a chassis and design a lube body to meet application and work environment demands. Next, choose the hydraulically driven or air-driven fluid delivery and evacuation systems you need. And then, we’ll put them all together in a user-friendly design that meets safety requirements.
Oil Product Delivery
- Delivery circuit options
- Flow rates from 2.5 up to 20 gpm
- Hydraulic-driven 1:1 gear pump
- Air-operated piston pump
- Tank-mounted Rochester level gauges with remote readout
- Digitally metered nozzle sized to match circuit delivery rates
- Tank options
- Carbon steel: 50,60,90,120,150,250 gal tanks
- Poly tanks: 40,60,90,150,150,200,300 gal tanks
Antifreeze Delivery
- Delivery circuit options
- Hydraulic-driven centrifugal
- Air-operated double diaphragm pump
- Tank-mounted Rochester level gauges with remote readout
- Non-metered delivery nozzle
- Optional digital metered nozzle
- Tank options
- Poly tanks: 40,60,90,150,150,200,300 gal tanks
- Stainless steel: 50,60,90,120,150,250 gal tanks
Waste Oil & Antifreeze
- Air-operated double diaphragm pumps with directional valves
- Single line load and offload of used product
- 1” AODD for used oil.
- ½” AODD for used antifreeze
- Larger sizes are available for higher flow requirements.
- An electronic level indicator with shutoff prevents overflow of the waste system.
- Tank options
- Poly tanks: 40,60,90,150,150,200,300 gal tanks
- Stainless steel: 50,60,90,120,150,250 gal tanks

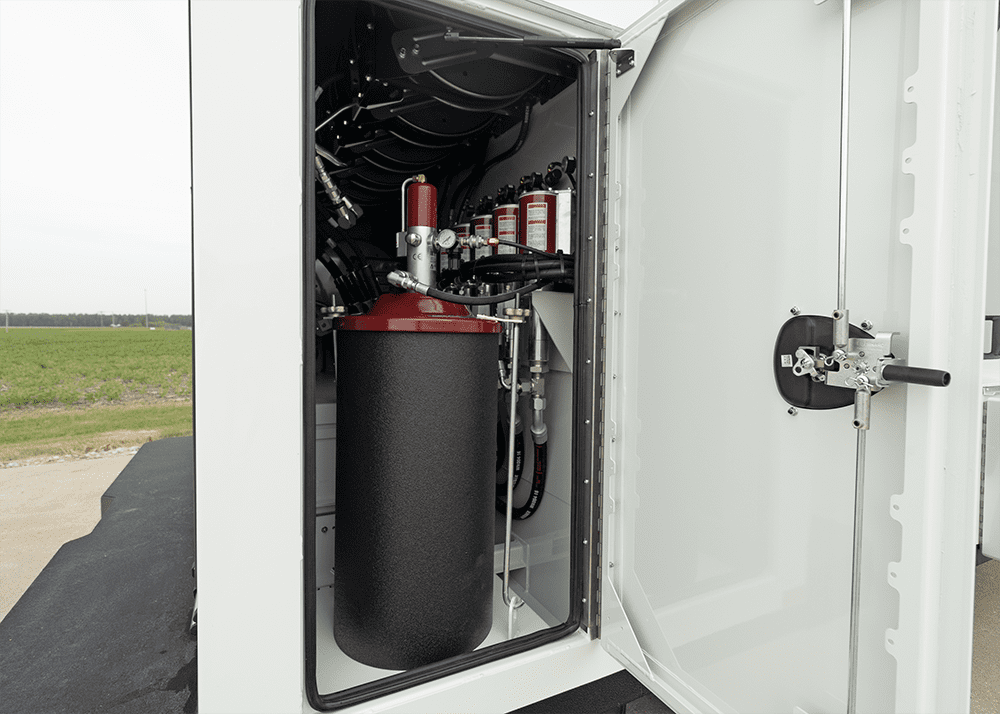

Chassis Grease System
- 120# and 400# grease systems
- Air-driven or hydraulically-driven
- Hannay Reels grease reel and nozzle
DEF Delivery System
- Air-operated DEF diaphragm pump
- Hannay Reels ½” x 50′ SWR reel with ½” hose
- Metered nozzle
- Tank options
- Stainless steel: 50,60,90,120,150,250 gal tanks
