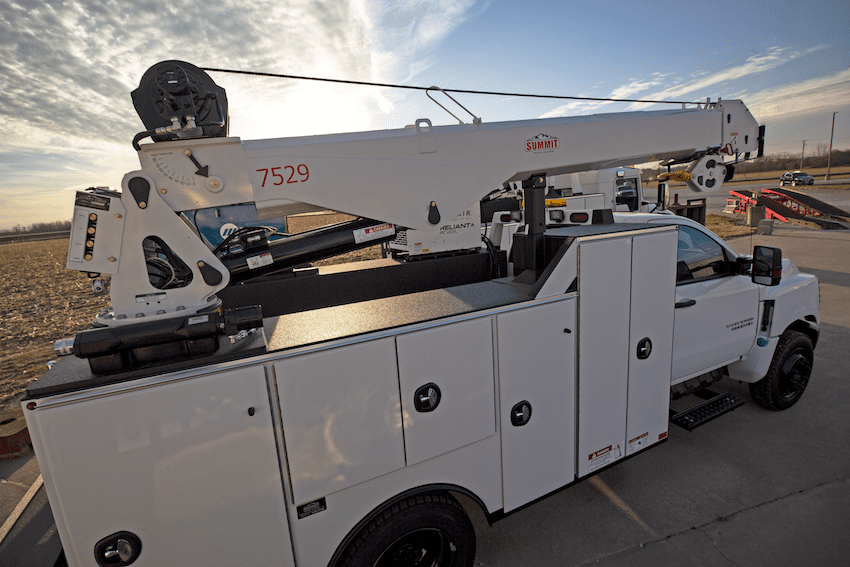

Summit’s truck-mounted telescopic service cranes are designed to meet the demands of today’s heavy equipment service industry.

Our hydraulic and electric truck cranes have a proven track record for dependability, whether deep in a mine or out on a construction site.

To provide the lifting capacity, power, and versatility needed for your application, we offer heavy-duty telescopic service truck cranes with lifting capacities from 6,000 lb to 14,000 lb and a maximum horizontal reach of 21 feet or 29 feet. Through strength, reliability, and safety, Summit Cranes get the job done.

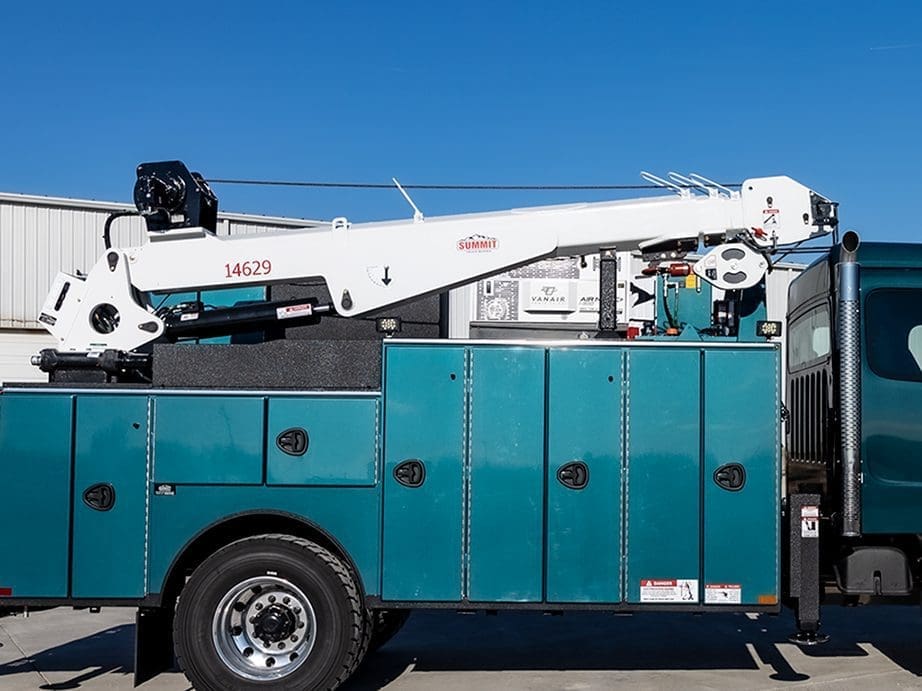

14629

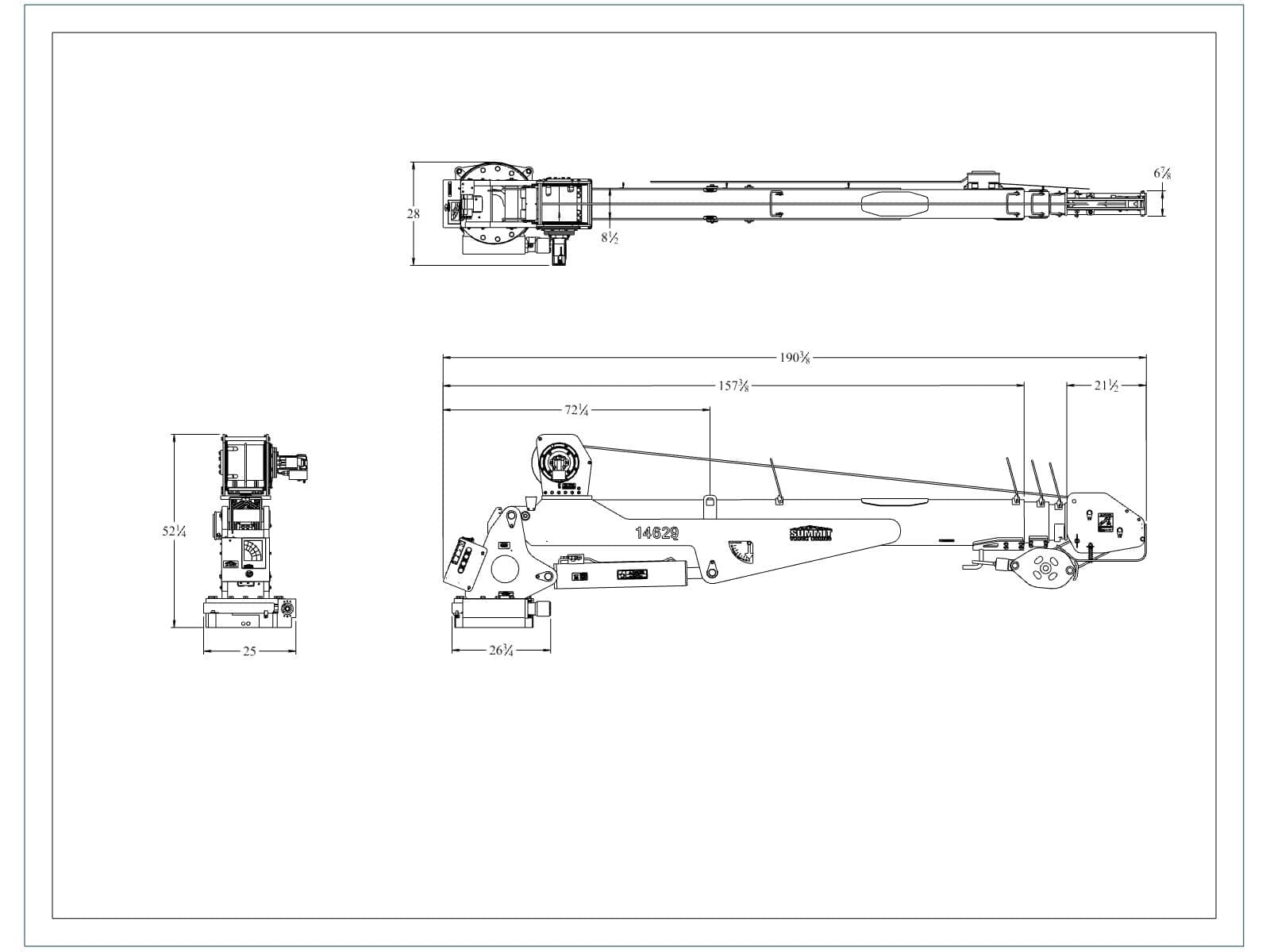

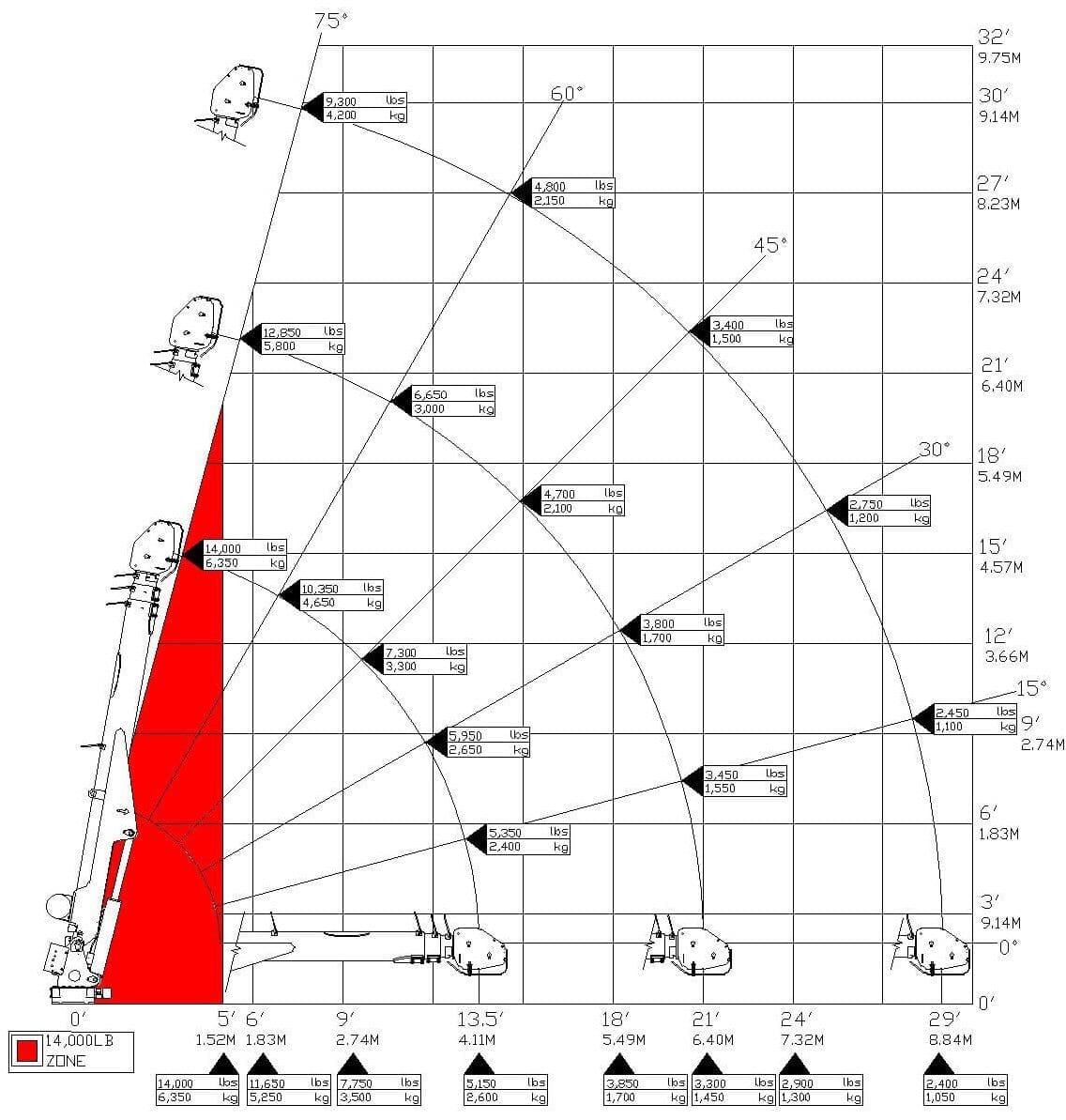

Telescopic Hydraulic Crane

ASE

ADVANCED SAFETY ELECTRONICS

Our innovative ASE Phase 4 control system has elevated jobsite safety and performance.

We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can incorporate the telematics data into your fleet management solution.

  • Increase OSHA Dart Rate and ROI
  • Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
  • Built-in safety features protect against jobsite hazards and ensure safe crane operation.
  • Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.

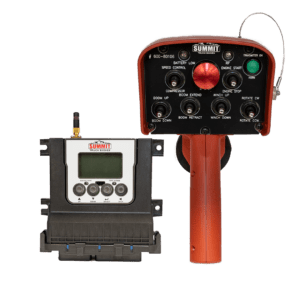

  • Three control points: main control in the rear compartment, cab control panel, and wireless remote control
    It prevents crane functionality under unsafe operating conditions
  • Digital displays real-time load moment indicator (LMI) data on the main panel and remote control.
  • Display alerts in easy-to-read text: e.g., oil temp, outriggers successfully deployed, crane overload, etc.
  • Standard on all hydraulic crane service trucks

Learn more about ASE

summit ASE cranes controls system with LMI data

Crane Comparison Chart

Summit Service Crane Specifications

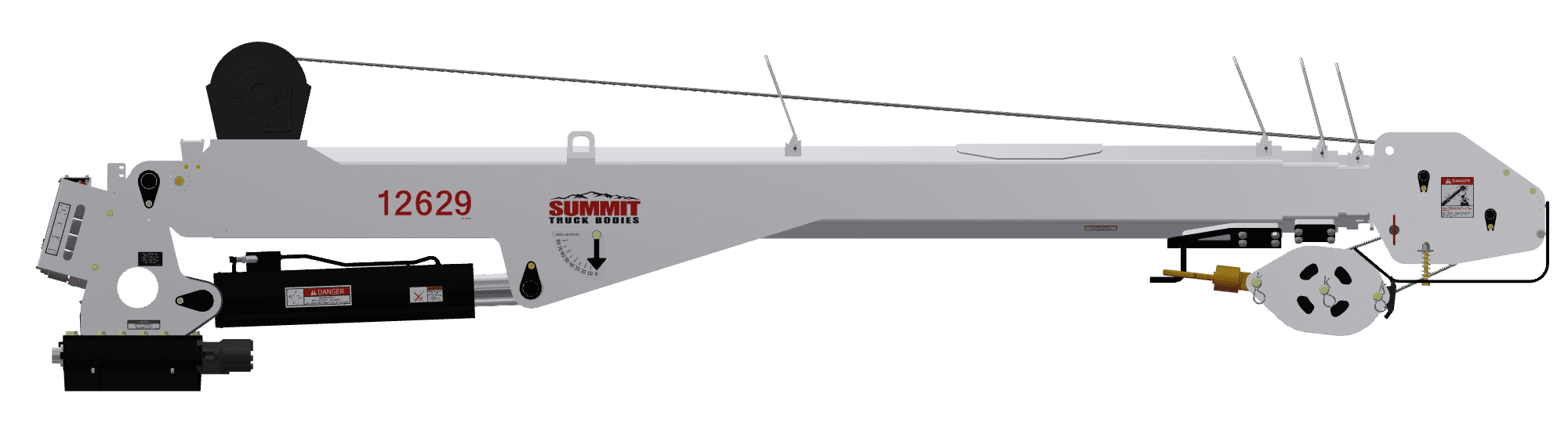

Model 4416E 6422E 6620 6629 7529 10620 10629 12629 14629
Max Lift Capacity (lb) 4,000 6,000 6,000 6,000 7,500 10,000 10,000 12,000 14,000
Crane Rating (ft-lb) 16,000 36,000 38,000 38,000 45,000 60,000 60,000 66,000 70,000
Horizontal Lifting Radius(ret) 7′ 10′ 6″ 10′ 9″ 12′ 9″ 13′ 10″ 12′ 9″ 13′ 7″ 13′ 7″ 14′
Max Horizontal Reach(ext) 16′ 22′ 20′ 9″ 28′ 7″ 29′ 7″ 20′ 8″ 28′ 11″ 28′ 11″ 28′ 10″
Max Vertical Lift Height 16′ 23′ 22′ 29′ 4″ 26′ 8″ 22′ 30′ 6″ 30′ 6″ 30′ 6″
Boom Elevation -5° to 75°
Crane Rotation 360° Continuous 400° Continuous
Max Winch Line Speed 22 ft/mn 30 ft/min 60 ft/min
Rope Diameter 1/4″ 5/16″ 3/8″ 3/8″ 7/16″ 7/16″ 7/16″ 7/16″ 12″
Stowed Height (crane only) 34 9/16″ 37 7/8″ 40 5/8″ 40 5/8″ 43″ 41 1/4″ 41 1/4″ 42 3/8″ 52 1/4″
Approx Weight 825 lb 1,817 lb 1,750 lb 1,890 lb 2,100 lb 2,320 lb 2,600 lb 2,640 lb 3,420 lb
Mountaing Space Reqd 14″ x 14″ 18″ x 18″ 21″ x 25″ 21″ x 25″ 25.5 x 35.5″ 21″ x 25″ 21″ x 25″ 21″ x 25″ 25.5” x 34.5”
Controls Single-function Wireless Controls Wireless Control System Standard: ASE Phase 4 or Phase 1(ship out cranes only)
Power Supply Reqd 12VDC
PTO & Pump (8 gpm @ 2800 psi)
All-in-one power unit
* Specifications are subject to change without notification.
