20 Series

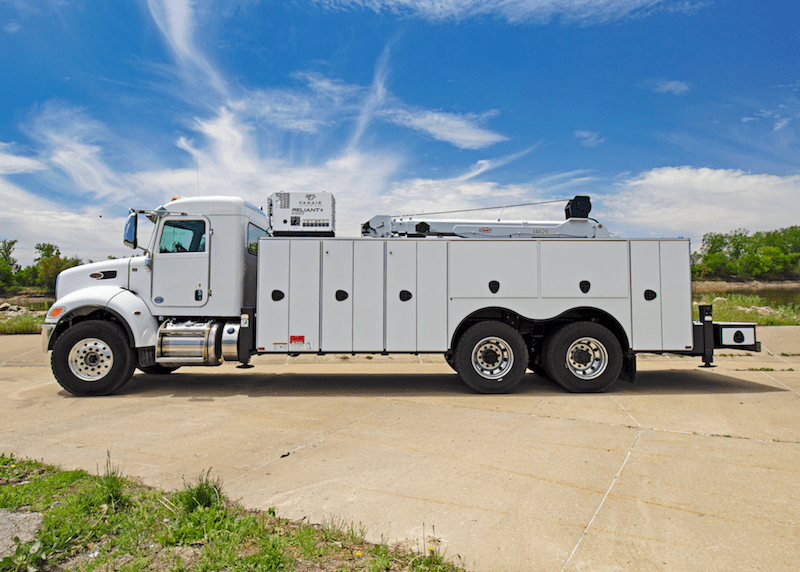

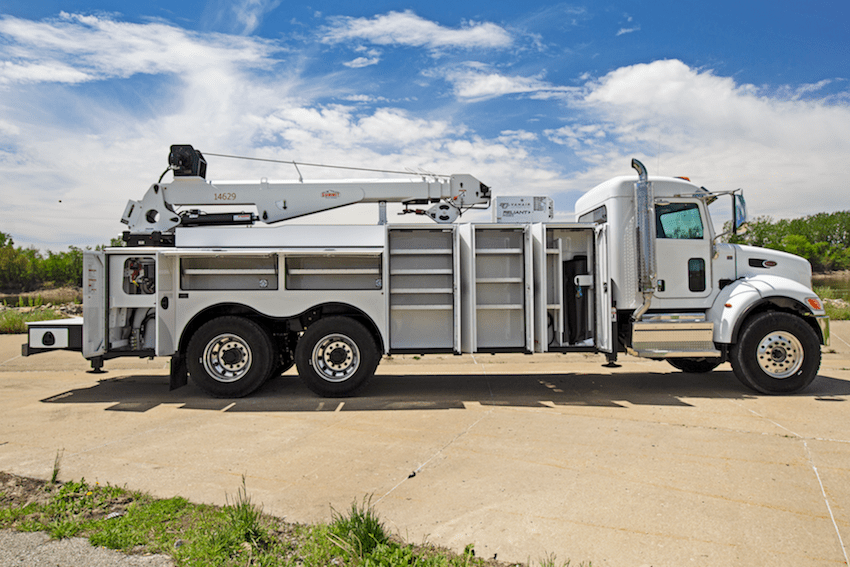

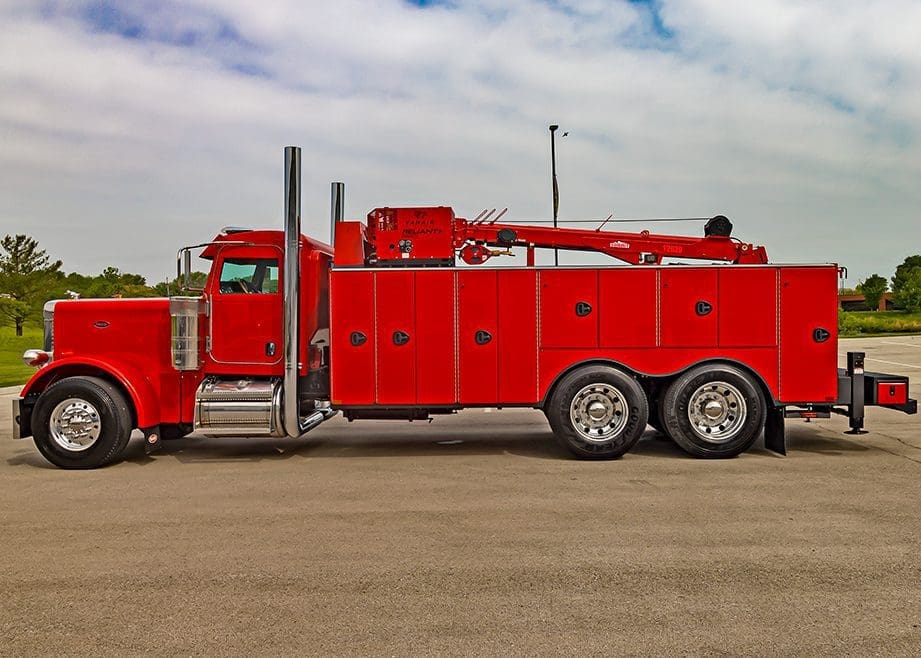

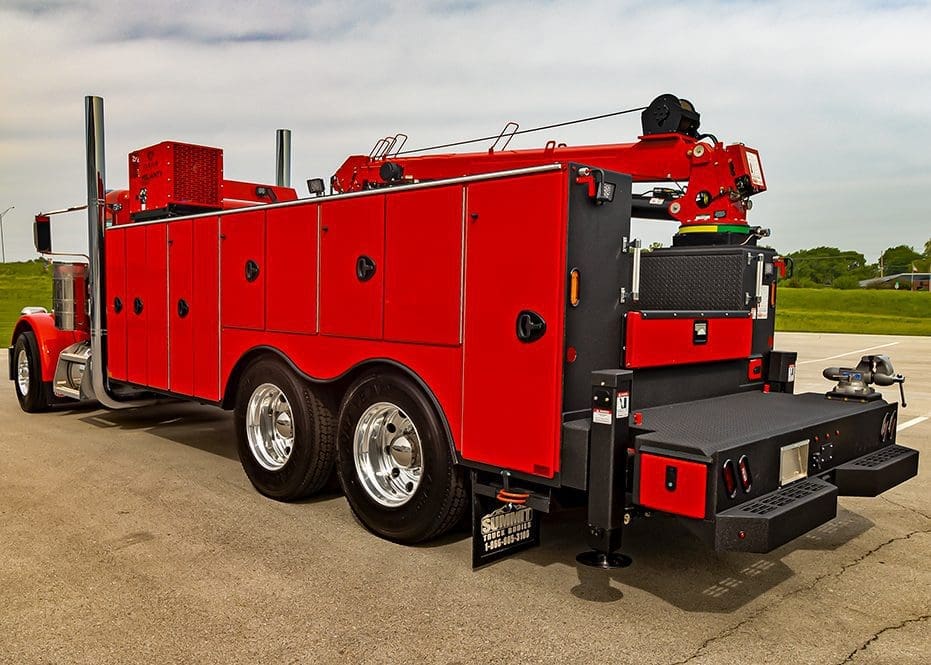

custom Heavy duty truck body

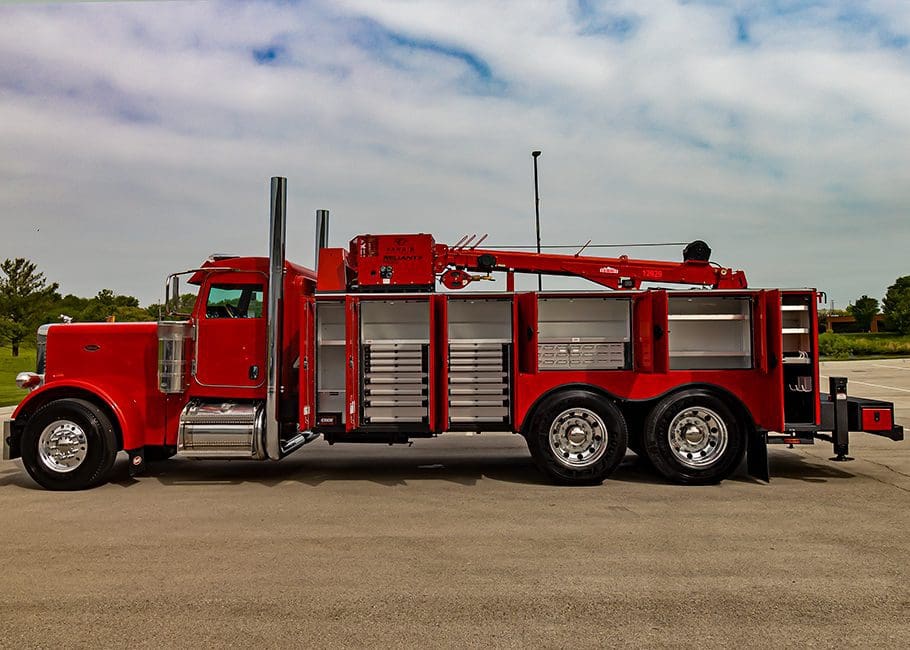

Our largest custom heavy-duty truck body, the 20 Series, is the mobile mechanic’s dream.

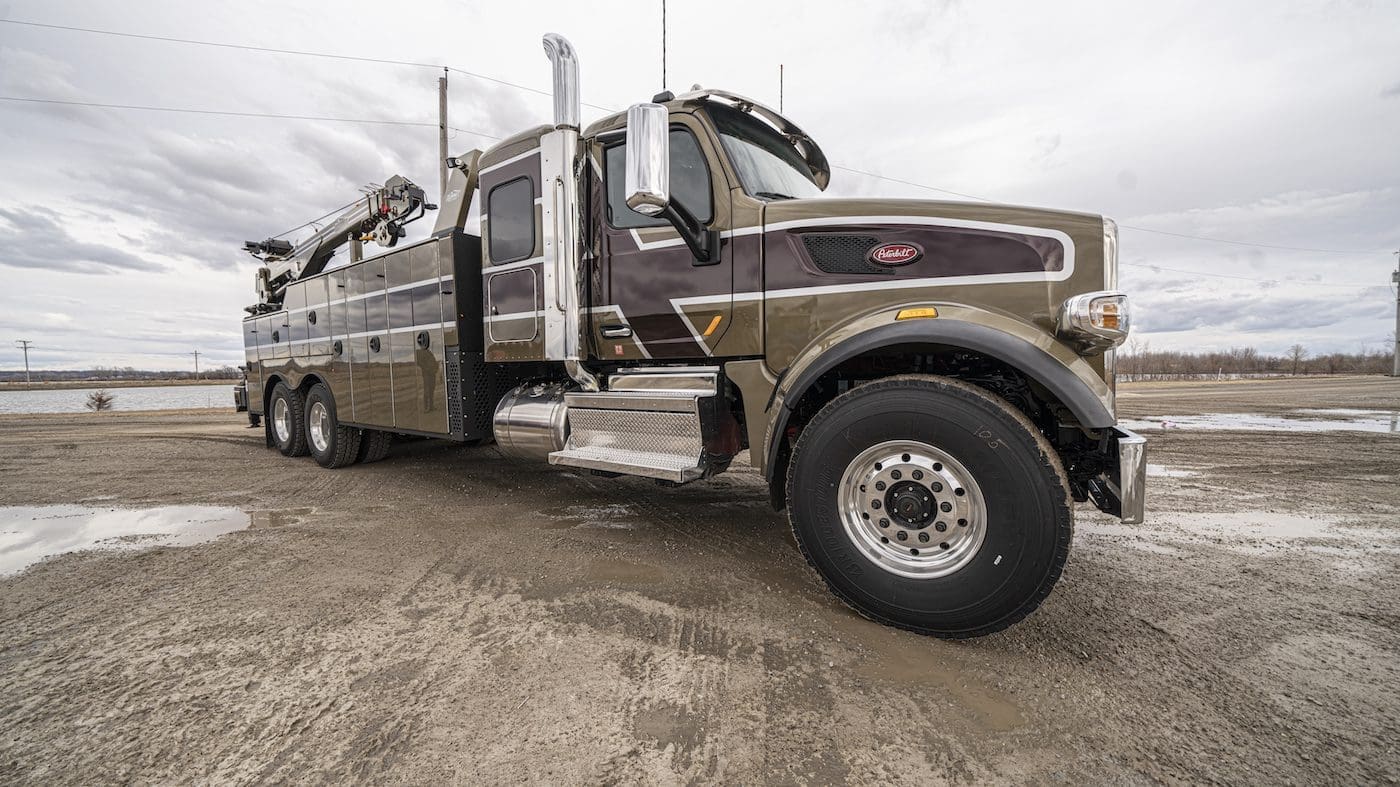

Although we have never built two the same, we will fully equip your truck as needed to face your biggest jobs. Many of these truck bodies are designed for versatility, so mechanics can get any job done in the most remote work site.

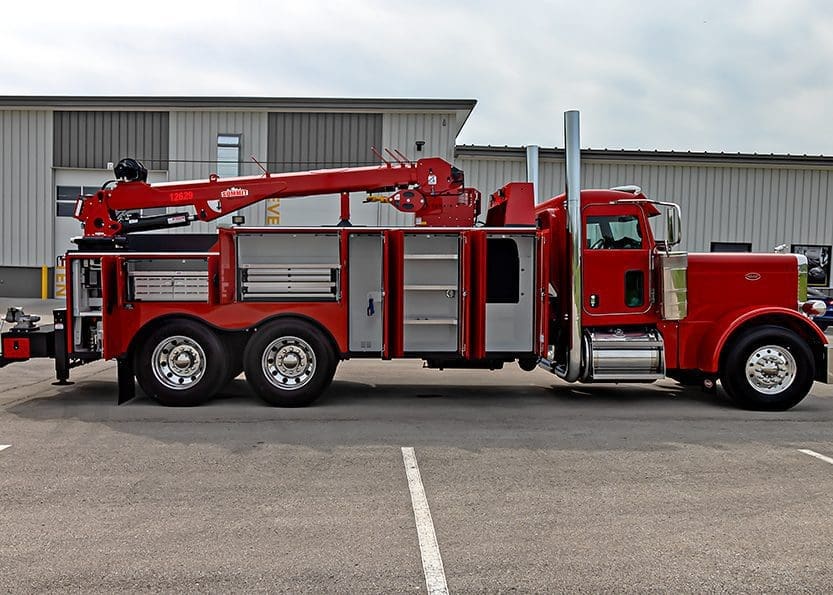

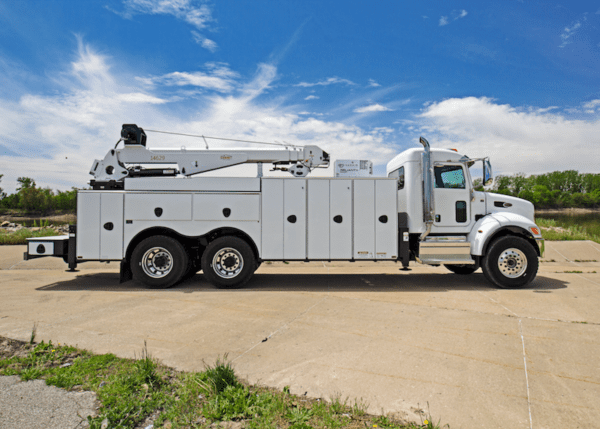

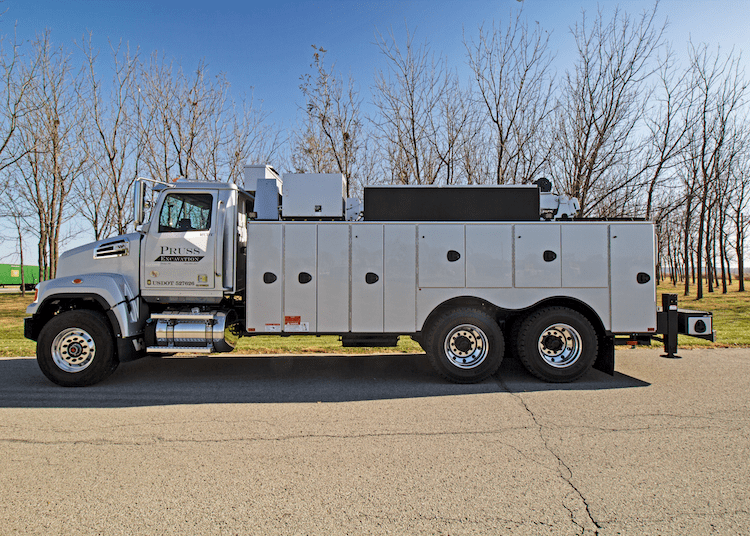

The custom heavy-duty truck body is commonly mounted on a 60-66K GVWR tandem axle and can carry up to a 14K crane.

You will have the payload capacity and storage space to carry all the tools and equipment to the most remote job sites to finish any job in arduous conditions safely. For example, the 20 Series truck body can carry tools for complete repair work and lube equipment to perform preventative maintenance.

Highlights

Summit truck bodies are engineered for strength and durability, built with premium materials and quality manufacturing.

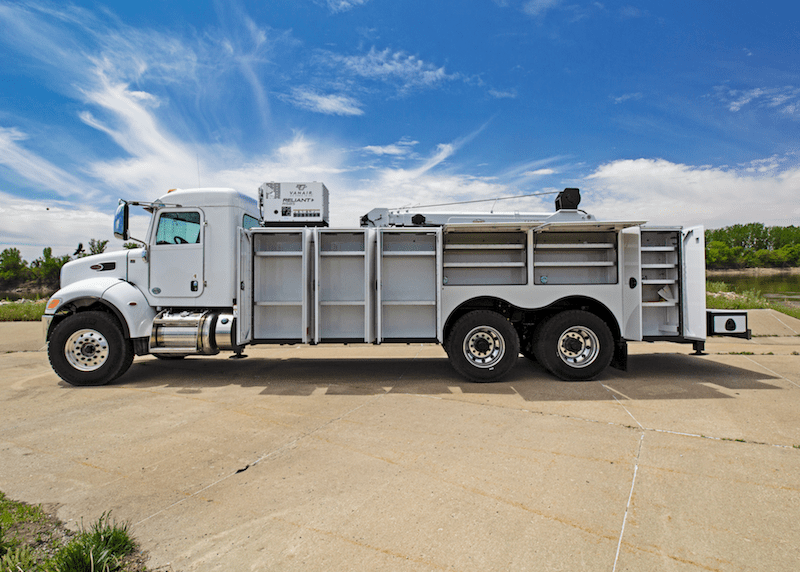

300 cu ft of compartment storage configured to increase productivity.

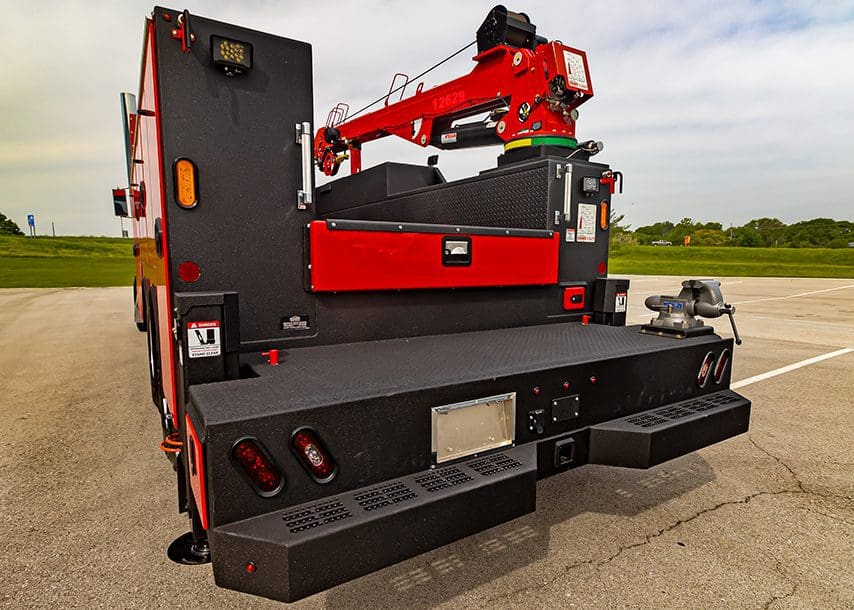

Tool bumper with grip strut steps and grab handles for safe cargo access.

ASE integrated operating system for the safe and efficient control of crane, body, and chassis functions

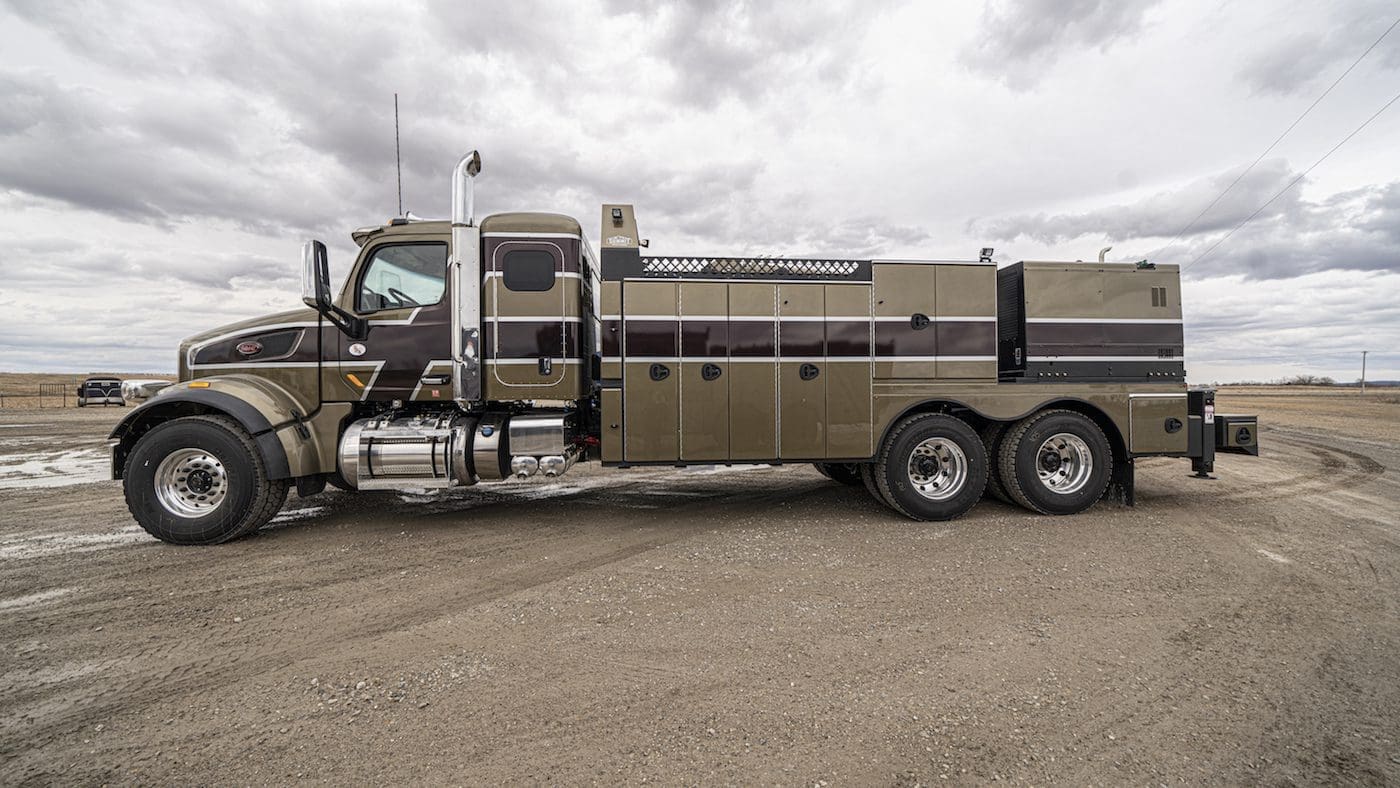

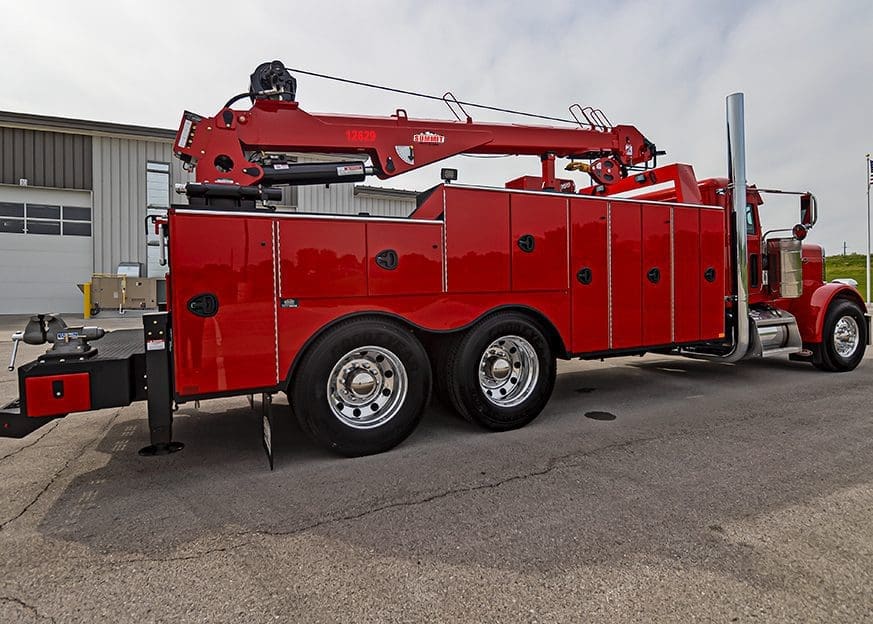

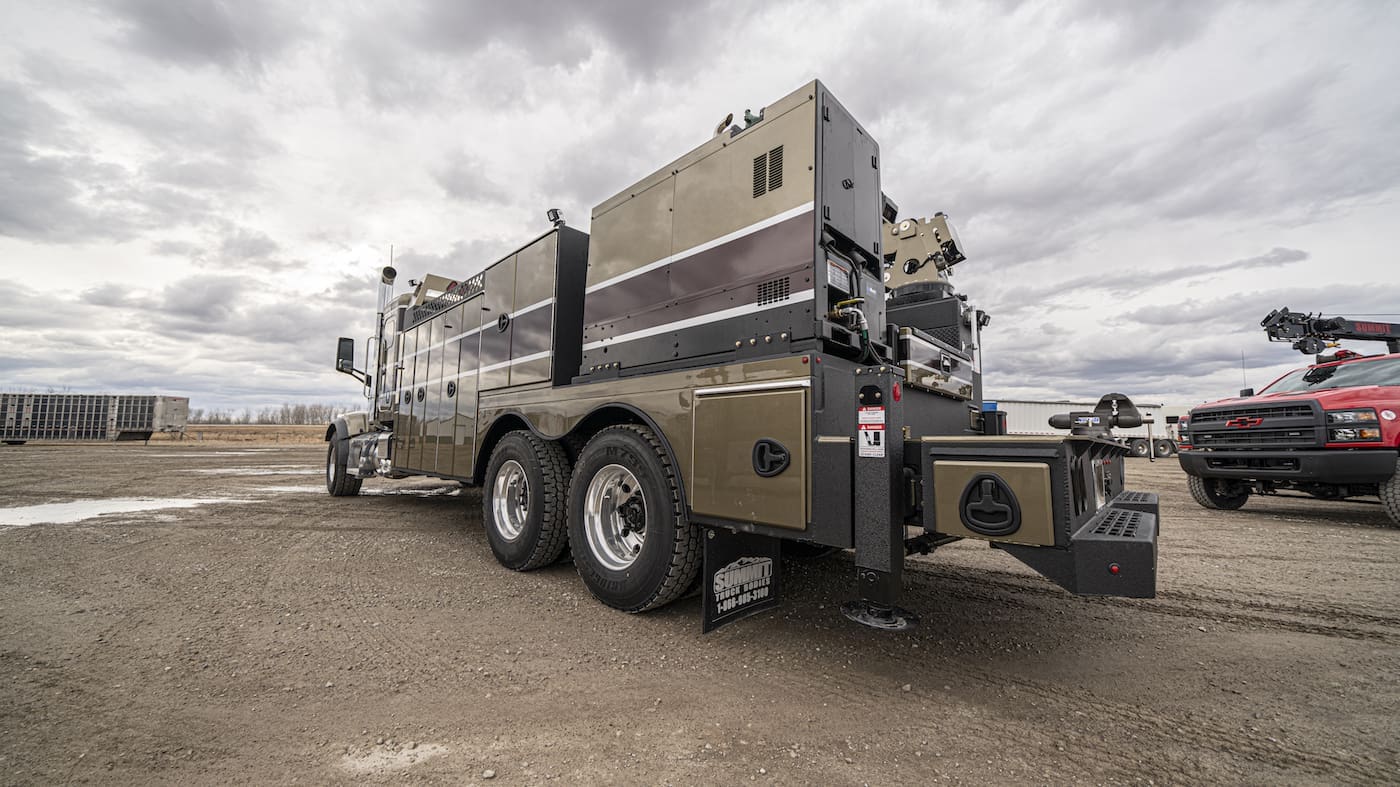

Custom heavy duty truck body line bore body

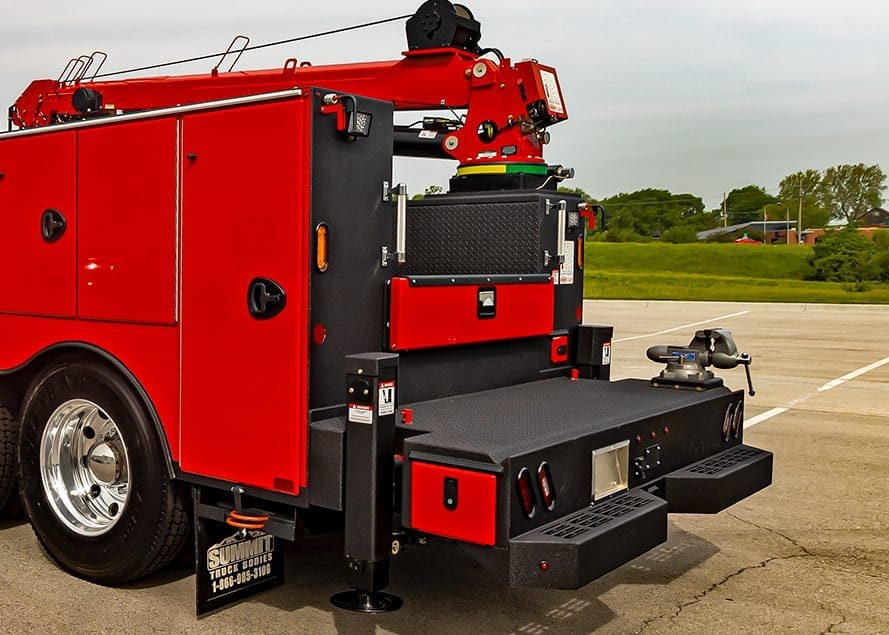

custom heavy duty truck body bumper with grip strut steps built in

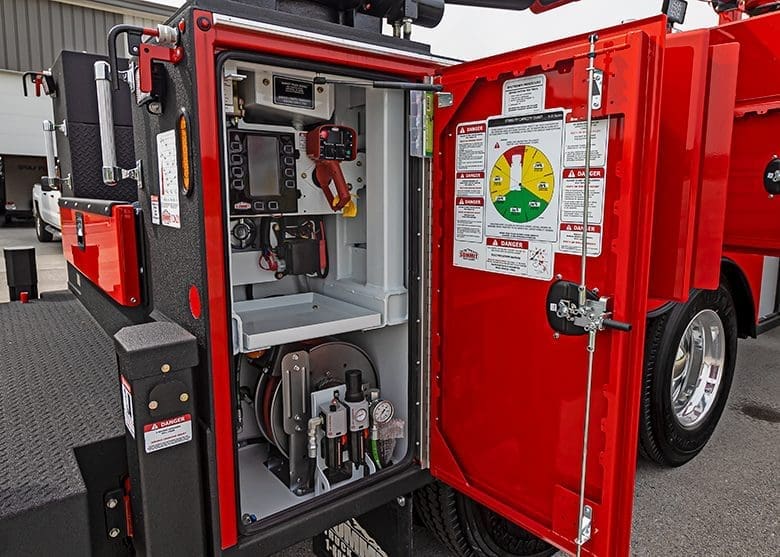

crane safety technology for heavy duty service truck

20 Series

Common Applications

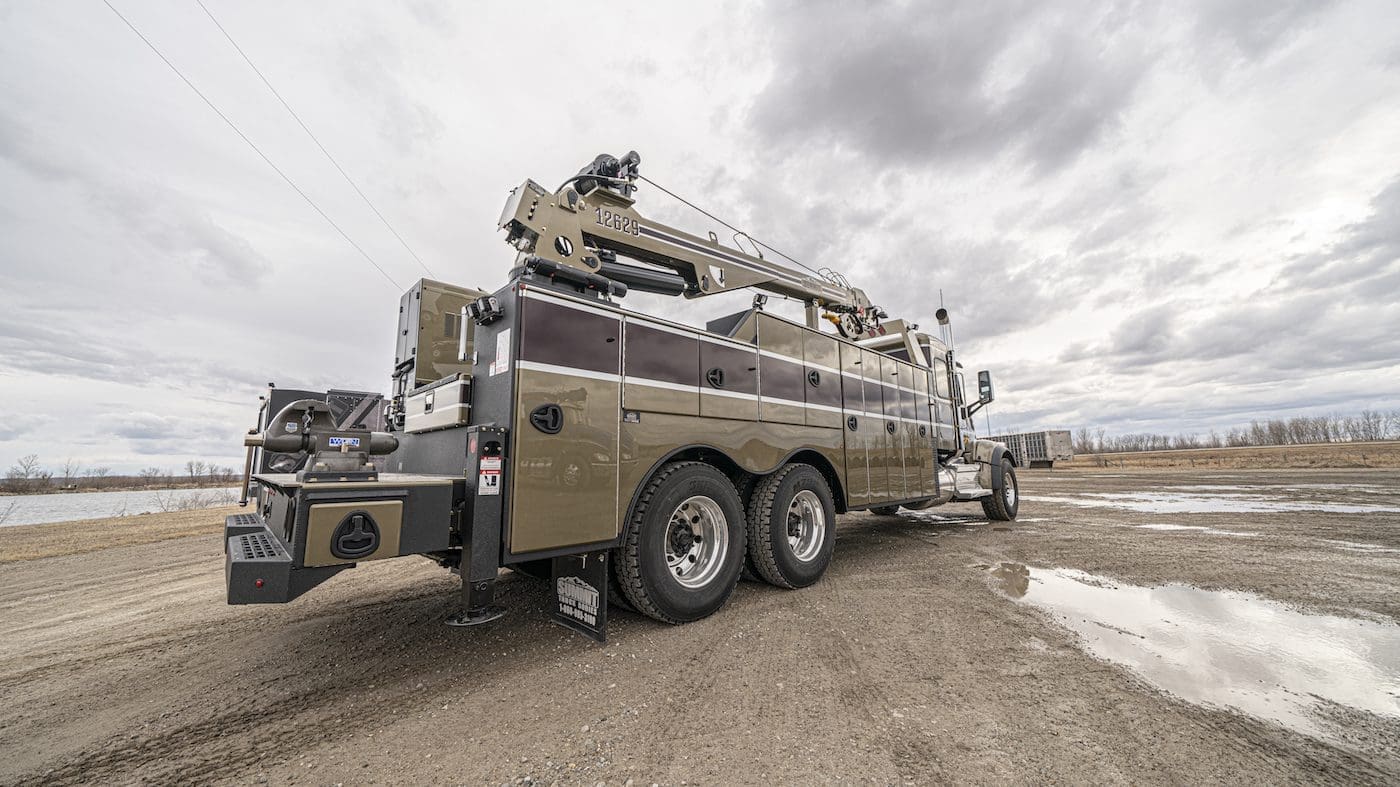

This 20 Series can be the ultimate workshop custom-designed for any industry application. We have equipped this body for forestry, mining, and heavy construction applications. Tailor the custom heavy-duty truck body to be a lube-service combo or for specialized work, such as line-boring.

Features

Standard Body

10 ga. galvannealed steel body construction
1/8” aluminum bolt-on doors with an internal frame
Full-length piano-style aluminum hinges
Automotive-style bulb weather stripping
Ergonomic three-point compression door latches keep compartments sealed tight.
Aluminum drip rail above compartment doors
3/16” diamond tread plate floor in the cargo area to reduce the risk of slips and falls.
Swivel D-ring tie-downs flush-mounted on the cargo area walls
- 6,000 lbs. Capacity
A fully integrated crane support structure
Tool bumper with storage compartment
- Integrated bumper steps with grip strut provide slip-resistant access to the cargo area.
- 2.5” 18,000 lbs automotive-style receiver hitch

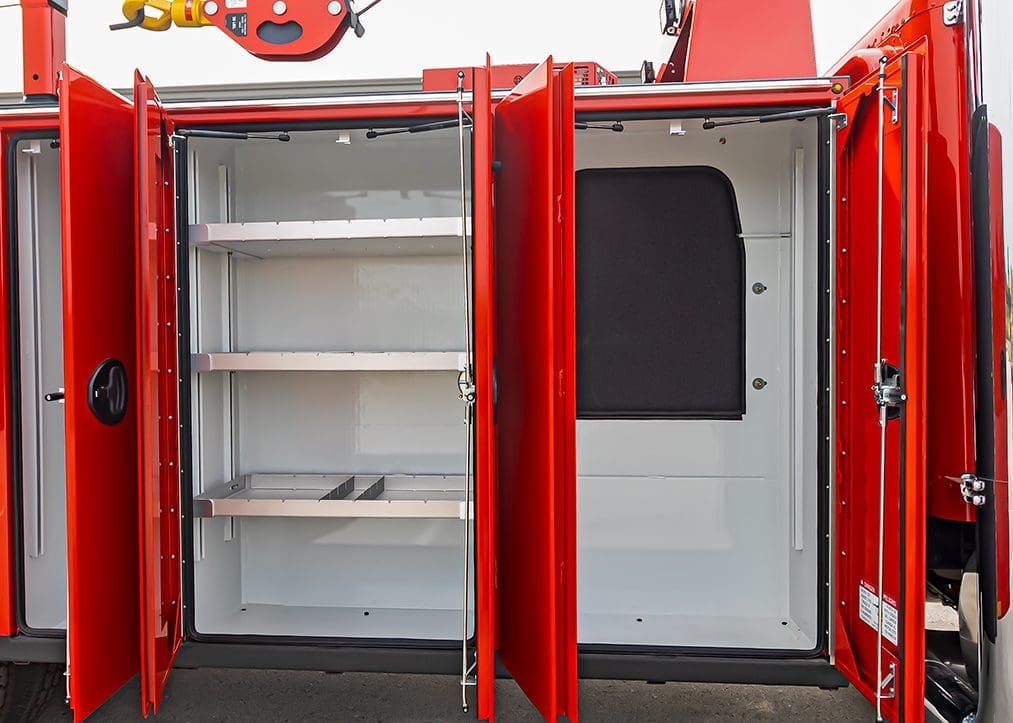

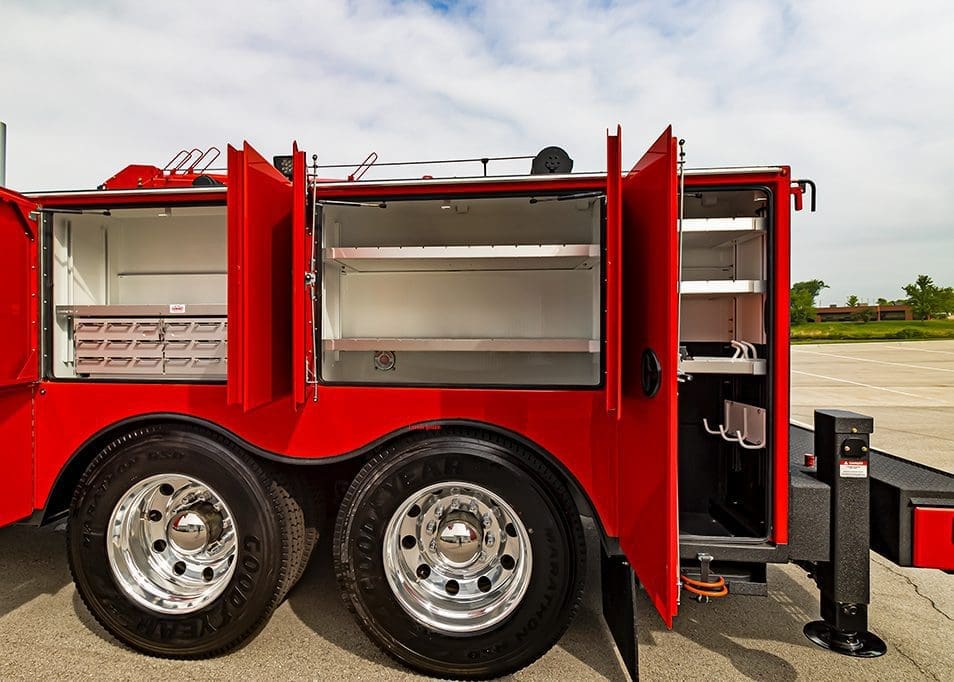

Infinitely adjustable compartment shelves with dividers
Bright polished knurled grab handles mounted on the rear side packs aid in safe three-point access to the cargo area.
12” aluminum slam-style lockable tailgate
Torch bottle storage compartment
- Vented and reinforced floor
- Torch bottle retainer with ratchet straps
Reinforced welder riser mounting blocks on top of DS sidepack
Safety placards and decals

Paint & Protective Coatings

The three-step Delfleet paint process gives the body a high-quality image and durability.
- Phosphate wash, PPG epoxy primer, and PPG topcoat.
- Five year PPG warranty against rust and corrosion
- Endless color options
Line-X protective coating applied to the cargo area, rear bumper, side pack front, top, rear, and the entire length of the bottom edge of the body provides long-lasting protection from harsh elements.
Rubberized undercoating applied to the entire underside of the body optimizes durability.

Electrical & Light Package

LED Light Package
- Grommeted and flush-mounted
- Front and rear marker lights
- Oval stop/tail/turn lights on the rear bumper and headache rack
- Reverse lights on the rear bumper with a backup alarm
LED Rectangle work lights
LED compartment strip lights
Control lights from ASE main control panel, chassis cab panel, and crane remote
7-way RV-style trailer plug
Control lights from control panels in the rear compartment and cab.
Weatherproof latching main body power panel installed in crane compartment.
- Includes push-button panel to control crane, outriggers, and 12V body accessories, including lights
Electrical wiring harnesses feature Deutsch connectors and braided protective sleeves.

Tool Boxes

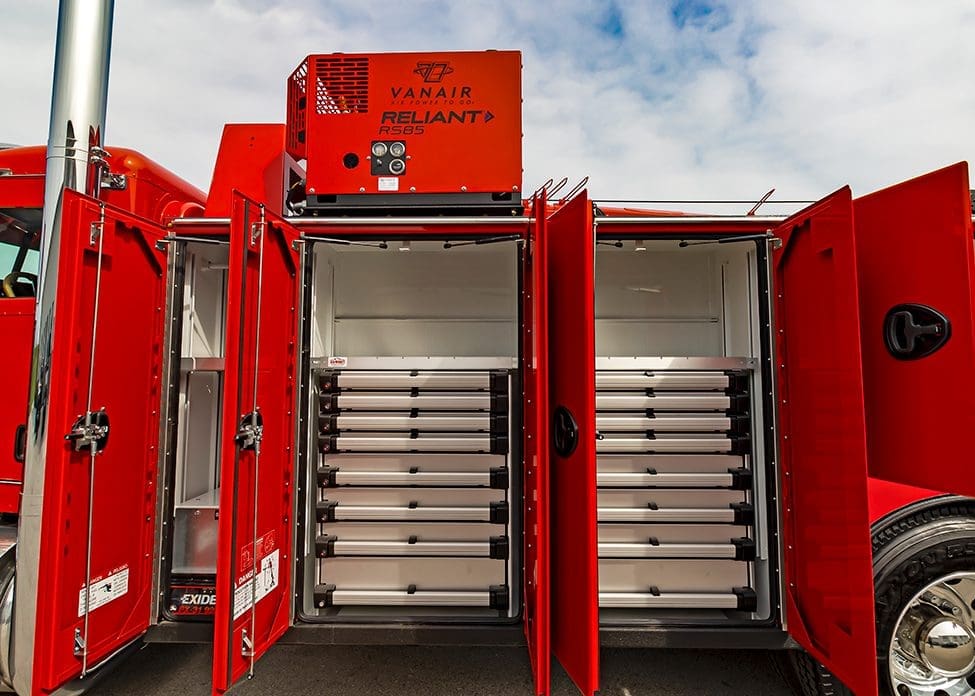

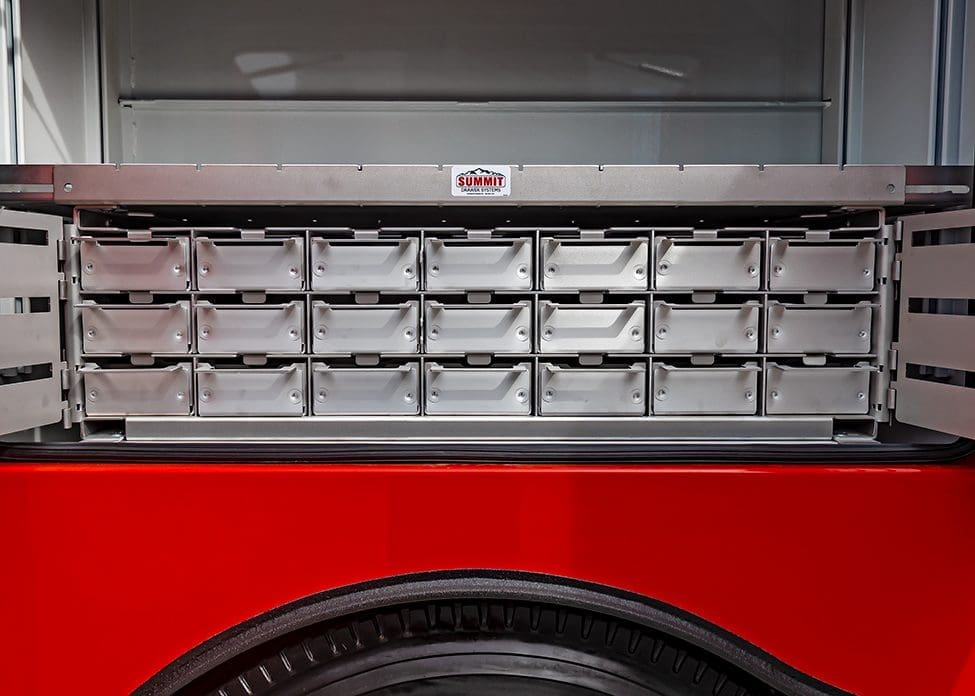

Summit designed and manufactured drawer packs.
.125” aluminum construction
Heavy-duty 600 lbs. slides fully extended.
Lock-in & lock-out slides.
Removable drawers.
Lock-in drawer dividers are standard with optional egg crating.
Lockable single-action handle assembly.
Drawer depths of 3”, 5”, and 7”
Custom widths from 12”-50”.
Custom riser heights.
An integrated top shelf with dividers.
Optional slide-out work tray.
Wrap or powder coat options add color & durability.
Cycle, load, shock, impact damage, incline, and vibration tested.

Hydraulic System

Open center fixed displacement gear pump.
PTO mounted to the transmission.
32-gal hydraulic reservoir

Air Compressor Systems

Hydraulic-driven reciprocating or rotary screw air compressor
40 CFM free air output at 100 psi
175 psi max output (reciprocating)
150 psi max output (rotary screw)
Hannay ½” x 50’ HD spring rewind hose reel
- 50’ air hose terminated with ½” male NPT hose end
- Payout door on the rear of the side pack

ASE Crane System

Our innovative Advanced Safety Electronics (ASE) Phase 4 control system has elevated jobsite safety and performance.

We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can also incorporate the telematics data into your fleet management solution.

Increase OSHA Dart Rate and ROI
Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
Built-in safety features protect against jobsite hazards and ensure safe crane operation.
Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
Three control points: main control in rear compartment, cab control panel, and wireless remote control
Prevents crane functionality under unsafe operating conditions

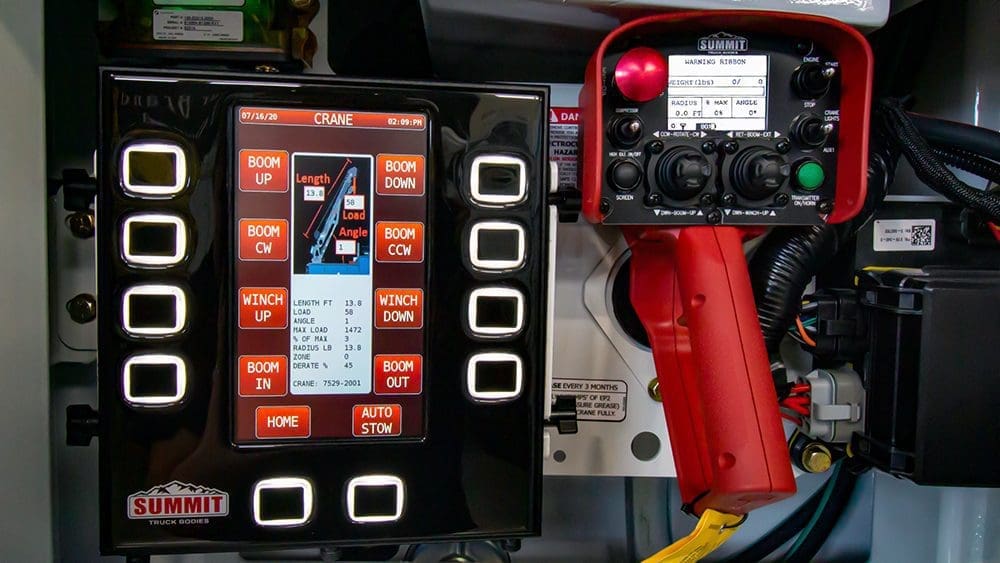

Digital displays of real-time load moment indicator (LMI) data on the main panel and remote control.
Display alerts in easy-to-read text: e.g., oil temp, outriggers successfully deployed, crane overload, etc.
Standard on all hydraulic crane service trucks.
