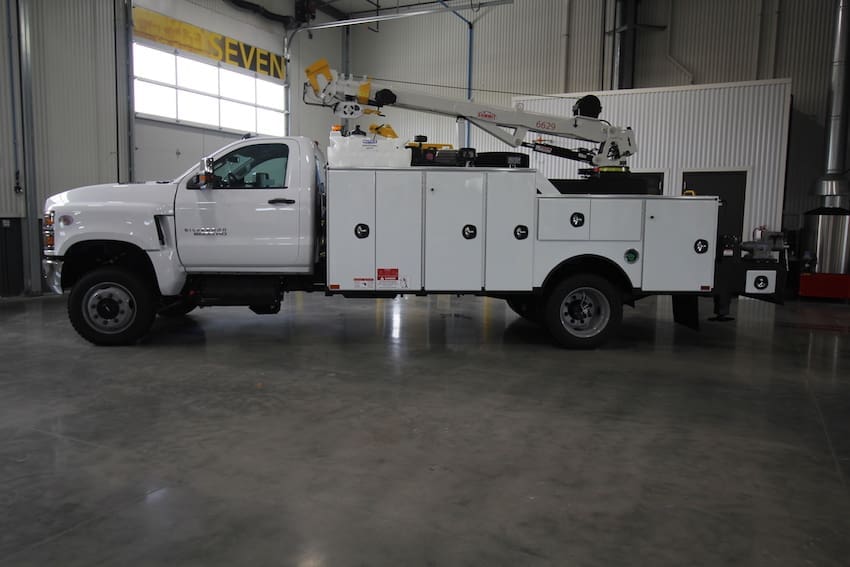

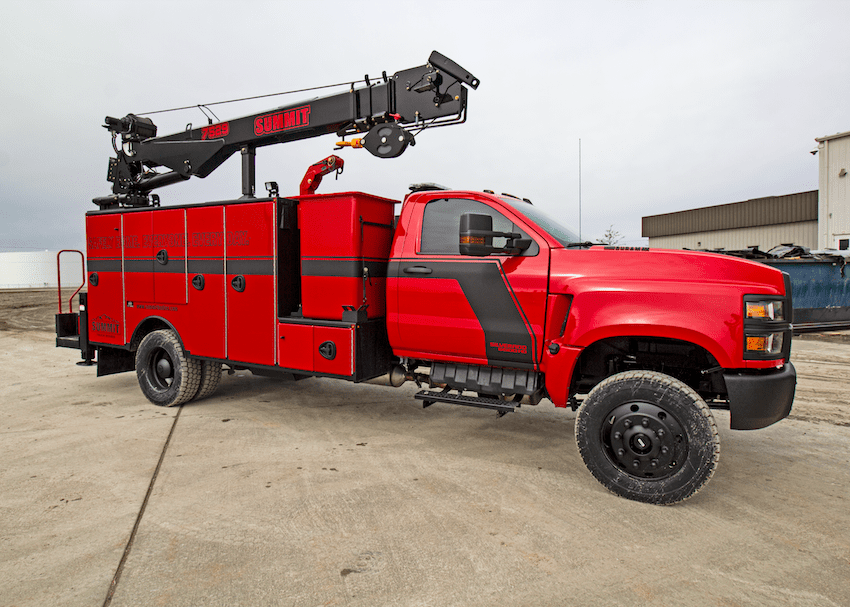

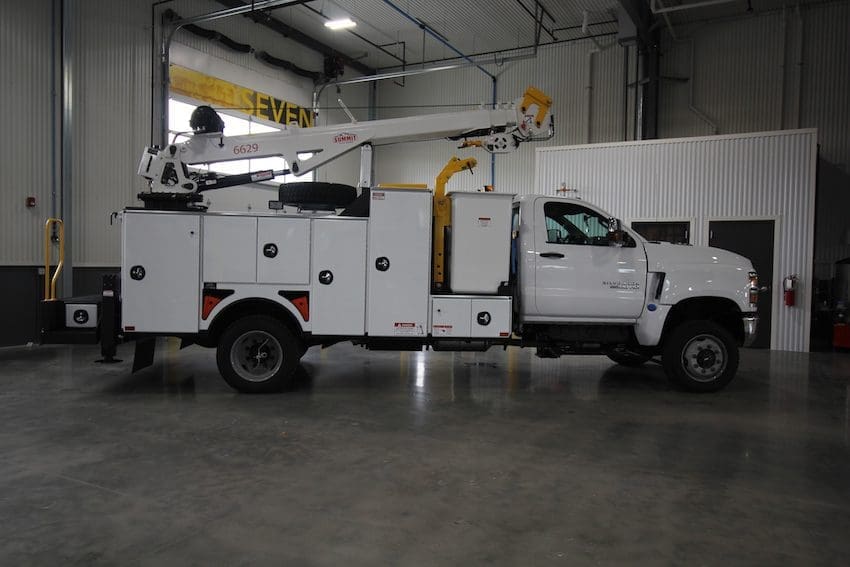

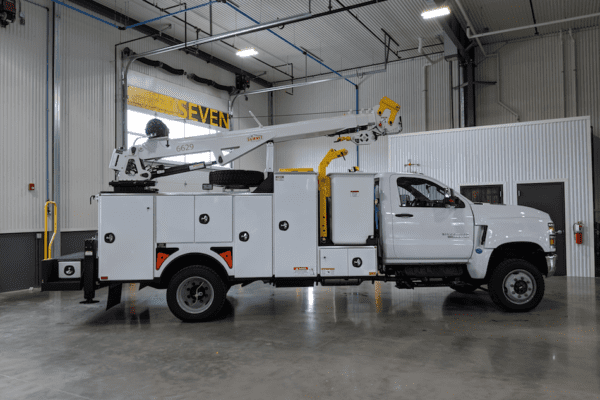

Man-bucket Platform Truck

man bucket truck

Adding our man bucket to your crane will increase the versatility of your service truck.

Having it will help one technician efficiently get a two-person job done safely.

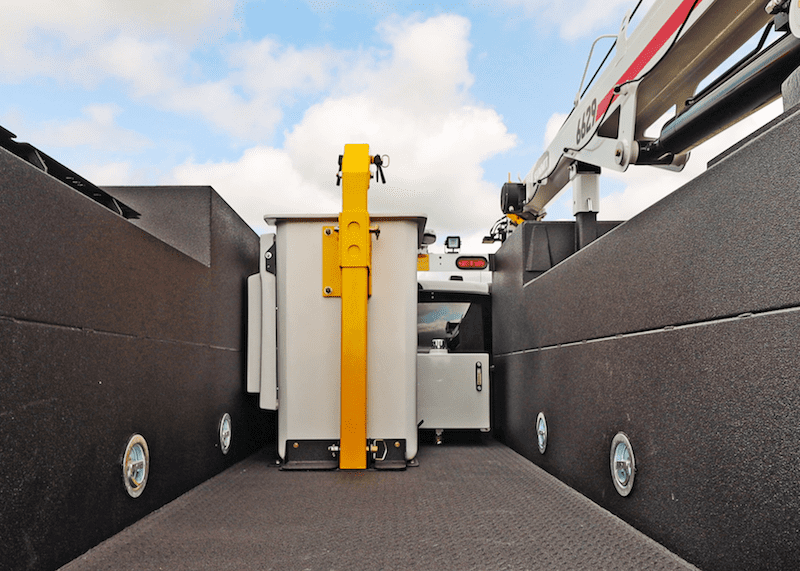

Although you can store it in your cargo area, having the custom service body with a man-bucket storage platform gives you easier access to the bucket and attachments.

Highlights

Summit truck bodies are engineered for strength and durability, built with premium materials and quality manufacturing.

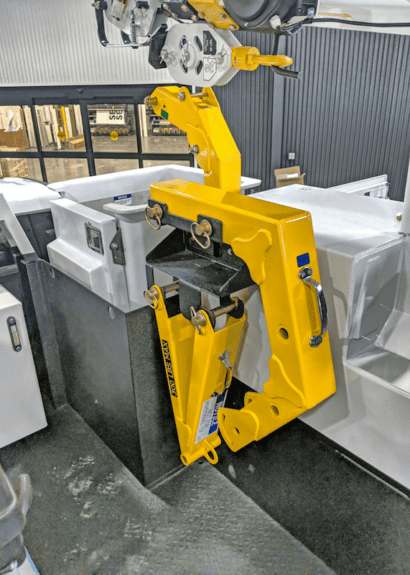

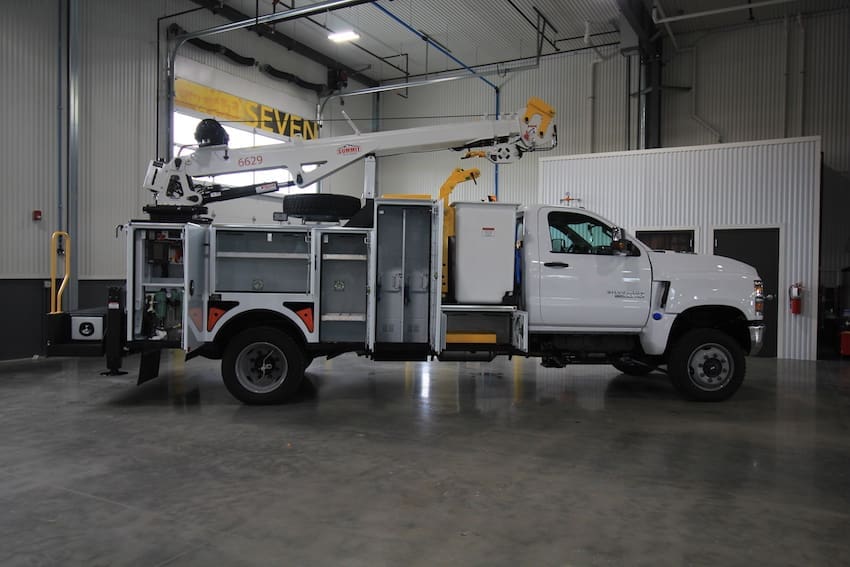

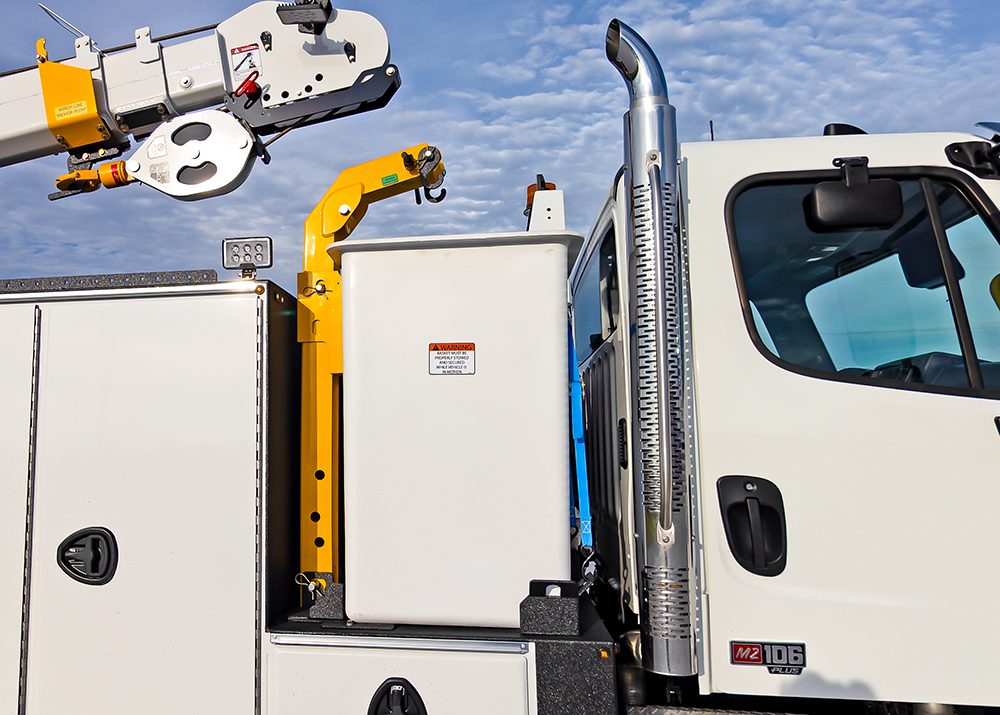

A built-in storage platform and increased compartment storage for attachments and other required accessories are available.

A bumper with a side step and grab handles provides safe and easy access to the cargo area.

ASE integrated operating system for the safe and efficient control of crane, body, and chassis functions include man-bucket operation mode.

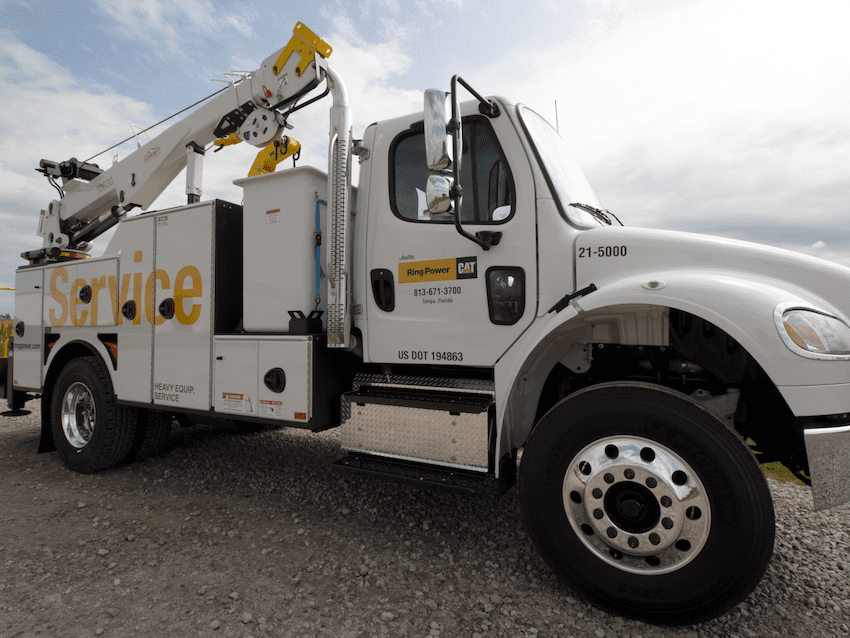

Ring Power Caterpillar custom 9-Series man bucket truck

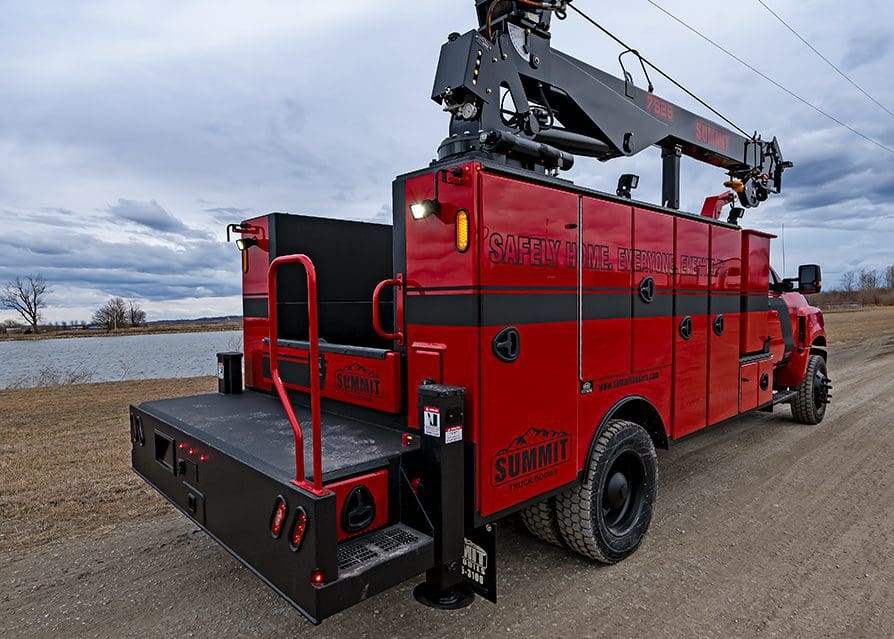

man bucket truck custom side step bumper

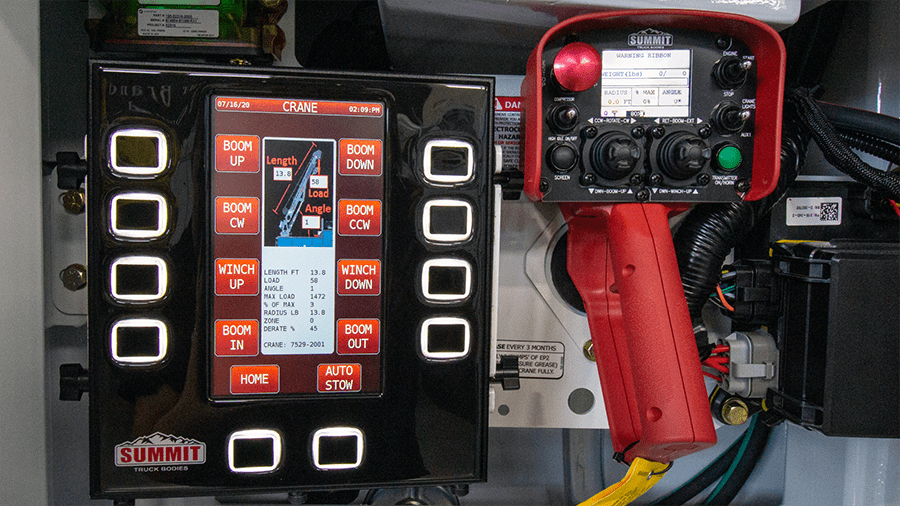

summit ASE cranes controls system with LMI data

Man Bucket

Common Applications

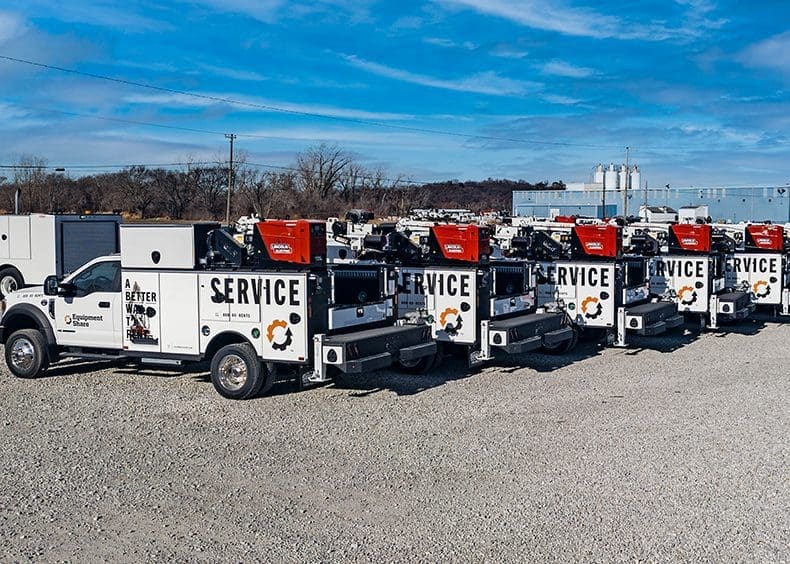

A man-bucket truck is a good option for equipment dealers, rental companies, owner-operators, oil & gas, energy and utility industry workers, and municipalities. Any company that requires service technicians to work high off the ground will benefit from the man bucket platform.

Features

Standard Body

10 ga. or 12 ga galvannealed steel body construction
1/8” aluminum bolt-on doors with an internal frame
Full-length piano-style aluminum hinges
Automotive-style bulb weather stripping
Ergonomic three-point compression door latches keep compartments sealed tight.
Aluminum drip rail above compartment doors

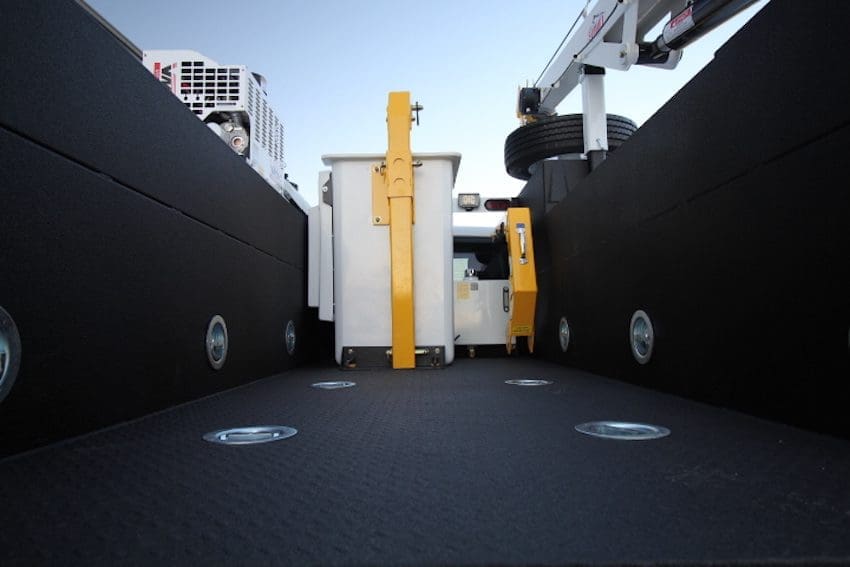

3/16” diamond tread plate floor in the cargo area to reduce the risk of slips and falls.
Swivel D-ring tie-downs flush-mounted on the cargo area walls: Qty 6
- 6,000 lbs. Capacity
A fully integrated crane support structure
30″ tool bumper with a side step and grab handles gives you safe access to the cargo area.
- 2.5” 18,000 lbs automotive-style receiver hitch

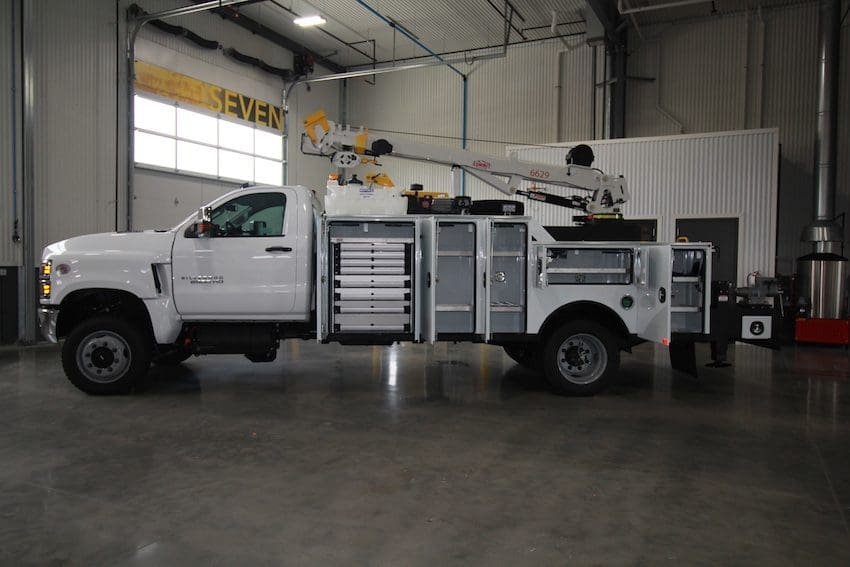

Infinitely adjustable compartment shelves with dividers
Bright polished knurled grab handle mounted on the rear of the DS side pack.
12” H aluminum slam style lockable tailgate
Torch bottle storage compartment
- Vented and reinforced floor
- Torch bottle retainer with ratchet straps
Reinforced welder riser mounting blocks on top of DS sidepack
Safety placards and decals

Paint & Protective Coatings

The three-step paint process gives the body a high-quality image and durability.
- Phosphate wash, epoxy primer, and topcoat.
- Five-year warranty against rust and corrosion
- Endless color options
Line-X protective coating applied to the cargo area, rear bumper, side pack front, top, rear, and the entire length of the bottom edge of the body provides long-lasting protection from harsh elements.
Rubberized undercoating applied to the entire underside of the body optimizes durability.

Electrical & Light Package

LED Light Package
- Grommeted and flush-mounted
- Front and rear marker lights
- Oval stop/tail/turn lights on the rear bumper and headache rack
- Reverse lights on the rear bumper with a backup alarm
LED Rectangle work lights
LED compartment strip lights
Control lights from the ASE main control panel, chassis cab panel, and crane remote
Control lights from control panels in the rear crane compartment and cab.
- Push-button panel to controls for crane, outriggers, and 12V body accessories, including lights

Tool Boxes

Summit designed and manufactured drawer packs.
.125” aluminum construction
Heavy-duty 600 lbs. slides fully extended.
Lock-in & lock-out slides.
Removable drawers.
Lock-in drawer dividers are standard, with optional egg crating.
Lockable single-action handle assembly.
Drawer depths of 3”, 5”, 7”
Custom widths from 12”-50”.
Custom riser heights.
An integrated top shelf with dividers.
Optional slide-out work tray.
Wrap or powder coat options add color & durability.
Cycle, load, shock, impact damage, incline, and vibration tested.

Hydraulic System

Open center fixed displacement gear pump.
PTO mounted to the transmission.
26 or 32 gal hydraulic reservoir

Air Compressor Systems

Hydraulic-driven reciprocating or rotary screw air compressor
40 CFM free air output at 100 psi
175 psi max output (reciprocating)
150 psi max output (rotary screw)
Hannay ½” x 50’ HD spring rewind hose reel
- 50’ air hose terminated with ½” male NPT hose end
- The payout door on the rear of the side pack
ASME underbody air receiver
- 15 gal air storage tank
- Mechanical air tank moisture drain
Norgren ½” Filter/Lubricator/Regulator

ASE Crane System

Our innovative Advanced Safety Electronics (ASE) Phase 4 control system has elevated jobsite safety and performance.

We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can incorporate the telematics data into your fleet management solution.

Increase OSHA Dart Rate and ROI
Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
Built-in safety features protect against jobsite hazards and ensure safe crane operation.
Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
Three control points: main control in the rear compartment, cab control panel, and wireless remote control
It prevents crane functionality under unsafe operating conditions
Digital displays of real-time load moment indicator (LMI) data on the main panel and remote control.
Display alerts in easy-to-read text: e.g., oil temp, outriggers successfully deployed, crane overload, etc.
Standard on all hydraulic crane service trucks.

Visit the ASE page to learn more.
