10620 Hydrualic Crane
service truck crane
Summit’s telescopic service truck cranes are designed to meet the demands of today’s heavy equipment service industry.
Our hydraulic and electric service truck cranes have a proven track record for dependability, whether deep in a mine or out on a construction site.
To provide the lifting capacity, power, and versatility needed for your application, we offer heavy-duty hydraulic telescopic service truck cranes with lifting capacities from 6,000 lb to 14,000 lb and a maximum horizontal reach of 21 feet or 29 feet. Through strength, reliability, and safety, Summit Cranes get the job done.
Read our Guide to Selecting the Right Mobile Service Truck Crane to make sure you have the right crane to get the job done.

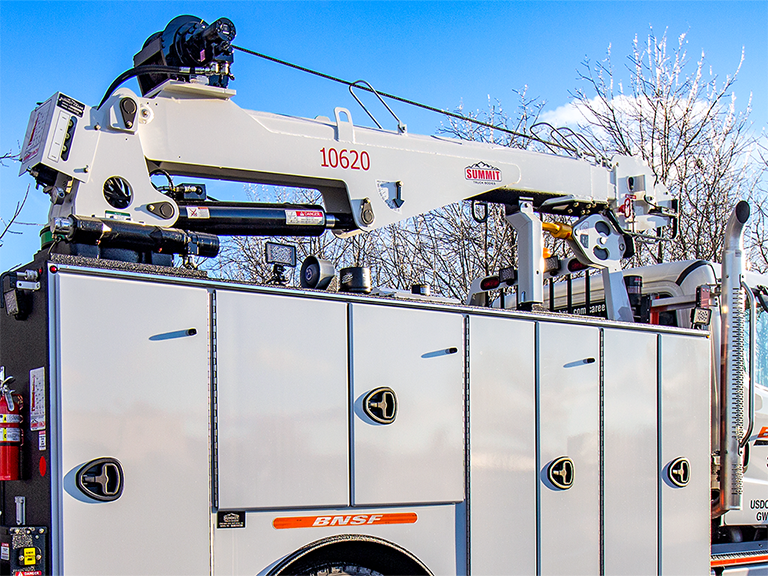

10620

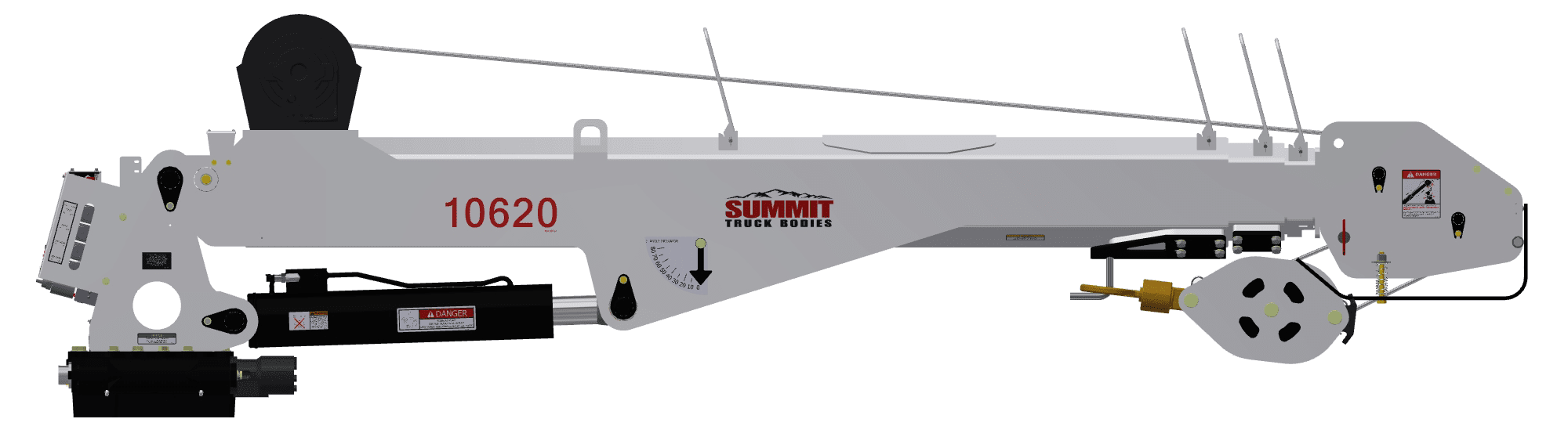

Telescopic Hydraulic Crane

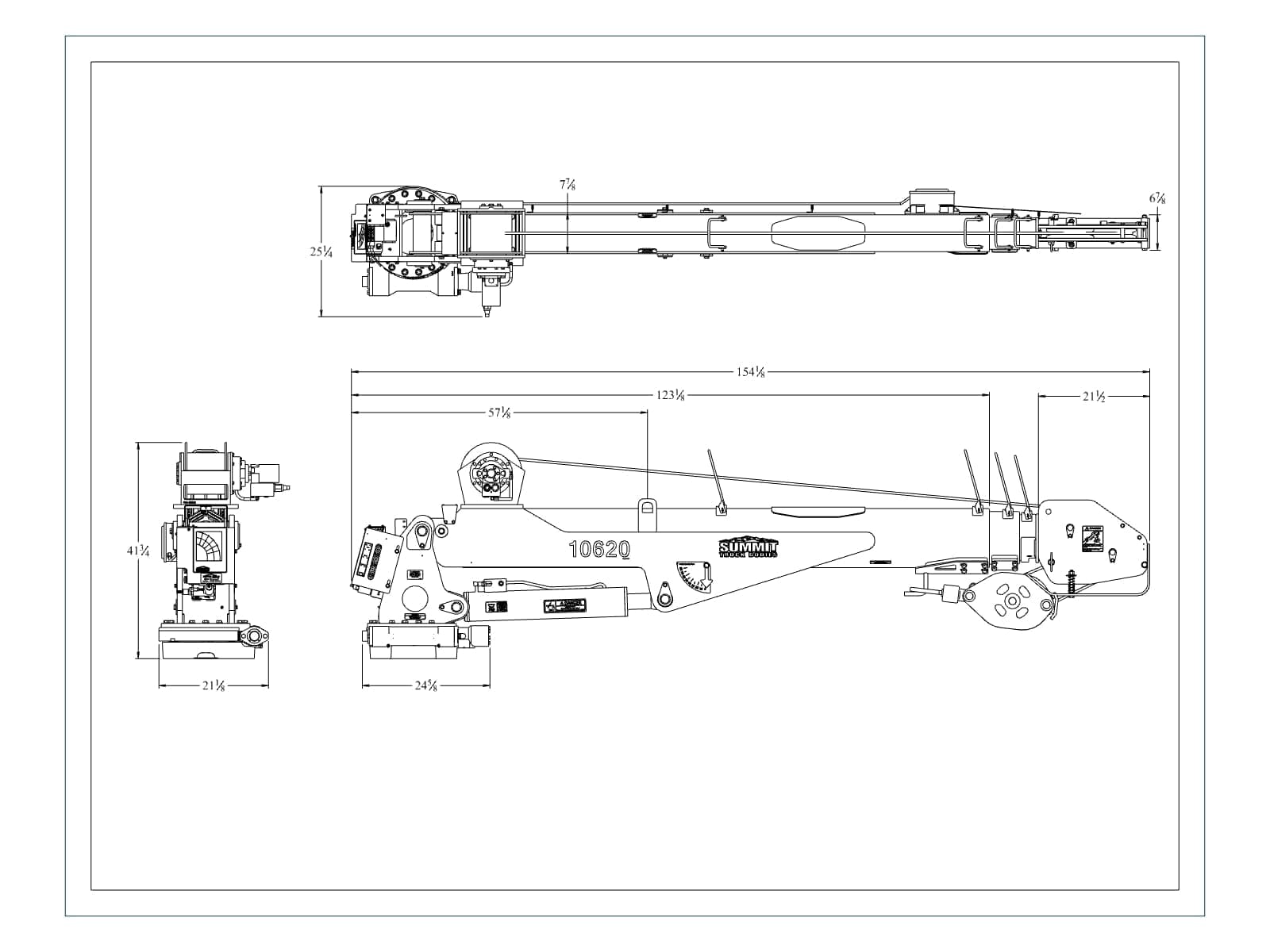

10620 Crane Specifications
| Max Lifting Capacity | 10,000 lb. (4500 kg) |
| Crabe Rating | 60,000 ft-lb. (81.3 kN-m) |
| Horizontal Lifting Radius (ret) | 12′ 9″ (3.88 m) from CL of Crane |
| Boom Extension | 1st Stage Hydraulic 61” (154.9 cm) 2nd Stage Hydraulic 58” (147.3 cm) |
| Max. Horizontal Reach (ext) | 20’ 8” (6.29 m) from CL of Crane |
| Boom Elevation | -5° to +75° |
| Winch Specifications | |
| Rope Diameter | 7/16” (1.1 cm) |
| Max. Winch Line Pull Speed | 60 ft/min (18.2 m/min) |
| Max. Single Part Line | 5,000 lb. (2267 kg) |
| Max. Double Part Line | 10,000 lb. (4500 kg) |
| Rotation | 400° Power |

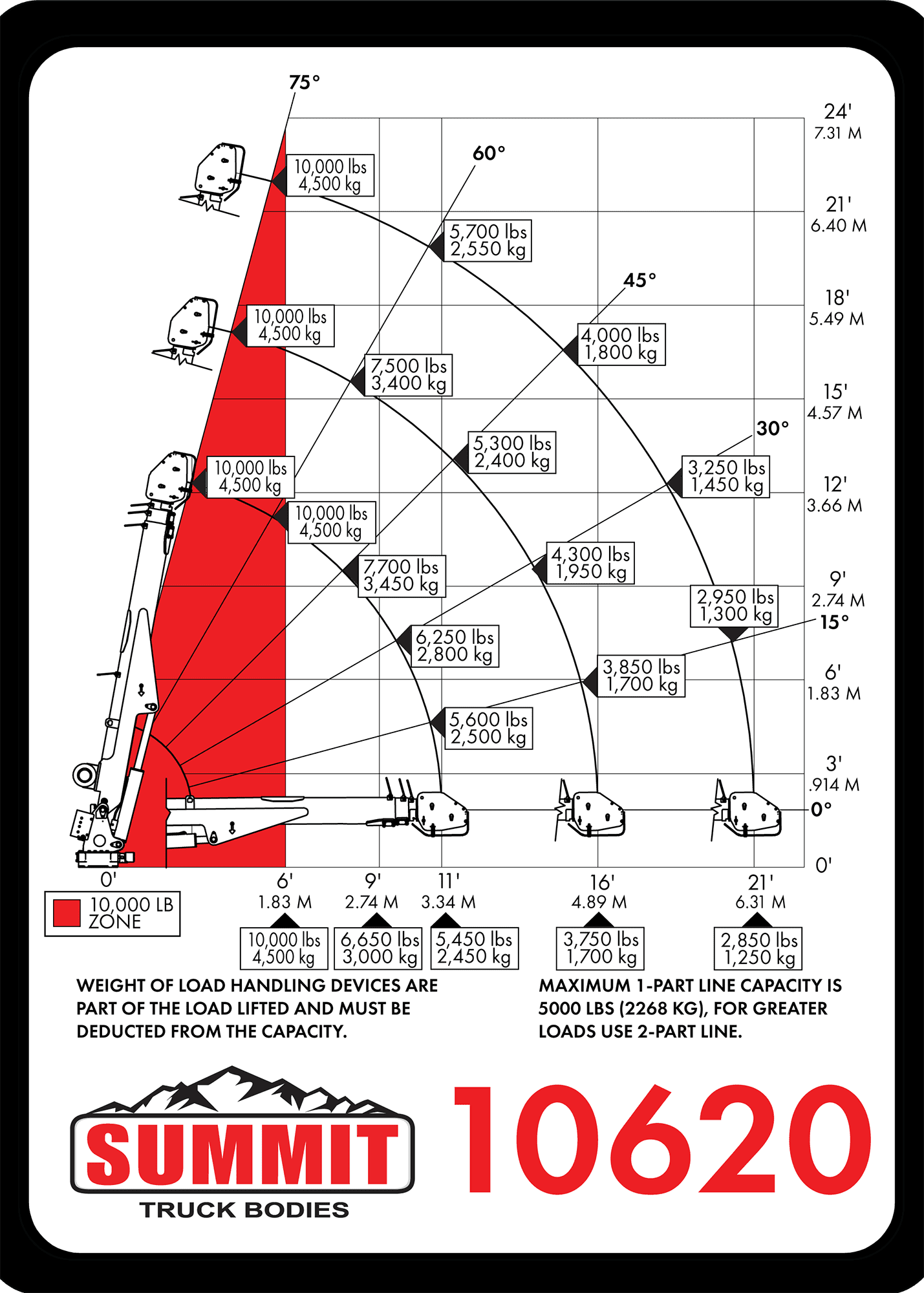

| Lifting Capacities | 10,000 lb. @ 6’ (4500 kg @1.83 m) 6,650 lb. @ 9’ (3000 kg @ 2.74 m) 5,000 lb. @ 12’ (2250 kg @ 3.65 m) 4,000 lb. @ 15’ (1800 kg @ 4.57 m) 3,300 lb. @ 18’ (1450 kg @ 5.7 m) 3,000 lb. @ 20’ (1350 kg @ 6.1 m) |
| Mounting Space Reqd | 21”x 25” (53.3 cm x 63.5 cm) |
| Approx. Weight | 2,320 lb. (1066 kg) |
| Controls | Wireless Control System Standard |
| Power Supply Reqd | PTO & Pump 8 gpm (30.2 lpm) @ 2800 psi All-in-one power unit |
10620 Hydraulic Service Truck Cranes Feature
The Summit 10k hydraulic crane is commonly mounted on our 8 Series truck body.
- Boom mounted winch
- 400° Rotation
- Overload Protection
- Auto-release hook stow
- PPG powder-coated boom
- ANSI B30.5 and OSHA 1910.180
- ASE Phase 4 Control System with wireless remote standard on all hydraulic cranes.
- A smarter, safer, and more efficient way to operate your crane, outriggers, and more.
- Visit our ASE page to learn more.
- Phase 1 crane controls on ship-out cranes
Service Truck Crane Options
- Crane Lights with swivel bracket
- Man-bucket & accessories
- Tire Jib
- Synthetic Rope
ASE Phase 1 Crane Control System
If you are thinking of upgrading your crane or replacing an older model service truck crane, we can help you. At Summit Truck Bodies, our parts department sells cranes directly from the factory. All our cranes come equipped with the ASE Phase 1 control system, which is easy to use and plug-and-play. This system includes a radio receiver, wireless radio transmitters, and a tether cord. We ship all our cranes.
Phase 1 Transmitter Features
- Lightweight
- Waterproof
- Impact Resistant
- Multifunction
- Proportional Trigger
- Overload Protection
- E-Stop
- Engine/Start-Stop
- Powered with 4 AA Batteries
- LED Indicator
- Steady Flashing Green = Unit
- Red Flashing = Low Battery
- Tether Cable (optional use)
ASE
ADVANCED SAFETY ELECTRONICS
Our innovative ASE Phase 4 control system has elevated jobsite safety and performance.
We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can incorporate telematics data into your fleet management solution.
- Increase OSHA Dart Rate and ROI
- Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
- Built-in safety features protect against jobsite hazards and ensure safe crane operation.
- Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
- Three control points: main control in the rear compartment, cab control panel, and wireless remote control
It prevents crane functionality under unsafe operating conditions - Digital displays of real-time load moment indicator (LMI) data on the main panel and remote control.
- Display alerts in easy-to-read text: e.g., oil temp, outriggers successfully deployed, crane overload, etc.
- Standard on all hydraulic crane service trucks
Crane Comparison Chart
Summit Service Truck Crane Specifications
| Model | 4416E | 6422E | 6620 | 6629 | 7529 | 10620 | 10629 | 12629 | 14629 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Lift Capacity (lb) | 4,000 | 6,000 | 6,000 | 6,000 | 7,500 | 10,000 | 10,000 | 12,000 | 14,000 | ||||||||||||||
| Crane Rating (ft-lb) | 16,000 | 36,000 | 38,000 | 38,000 | 45,000 | 60,000 | 60,000 | 66,000 | 70,000 | ||||||||||||||
| Horizontal Lifting Radius(ret) | 7′ | 10′ 6″ | 10′ 9″ | 12’9 | 13′ 10″ | 10′ 9″ | 13′ 7″ | 13′ 7″ | 14′ | ||||||||||||||
| Max Horizontal Reach(ext) | 16′ | 22′ | 20′ 9″ | 28′ 7″ | 29′ 7″ | 20′ 8″ | 28′ 11″ | 28′ 11″ | 28′ 10″ | ||||||||||||||
| Max Vertical Lift Height | 16′ | 23′ | 22′ | 29′ 4″ | 22′ | 29 4″ | 29′ 4″ | 30′ 6″ | 30′ 6″ | ||||||||||||||
| Boom Elevation | -5° to 75° | ||||||||||||||||||||||
| Crane Rotation | 360° Continuous | 400° Continuous | |||||||||||||||||||||
| Max Winch Line Speed | 22 ft/mn | 30 ft/min | 60 ft/min | ||||||||||||||||||||
| Rope Diameter | 1/4″ | 5/16″ | 3/8″ | 3/8″ | 7/16″ | 7/16″ | 7/16″ | 7/16″ | 12″ | ||||||||||||||
| Stowed Height (crane only) | 34 9/16″ | 37 7/8″ | 40 5/8″ | 40 5/8″ | 43″ | 41 1/4″ | 41 1/4″ | 42 3/8″ | 52 1/4″ | ||||||||||||||
| Approx Weight | 825 lb | 1,817 lb | 1,750 lb | 1,890 lb | 2,100 lb | 2,320 lb | 2,600 lb | 2,640 lb | 3,420 lb | ||||||||||||||
| Mountaing Space Reqd | 14″ x 14″ | 18″ x 18″ | 21″ x 25″ | 21″ x 25″ | 25.5 x 35.5″ | 21″ x 25″ | 21″ x 25″ | 21″ x 25″ | 25.5” x 34.5” | ||||||||||||||
| Controls | Single-function Wireless Controls | Wireless Control System Standard: ASE Phase 4 or Phase 1(ship out cranes only) | |||||||||||||||||||||
| Power Supply Reqd | 12VDC |
|
|||||||||||||||||||||
| * Specifications are subject to change without notification. | |||||||||||||||||||||||
