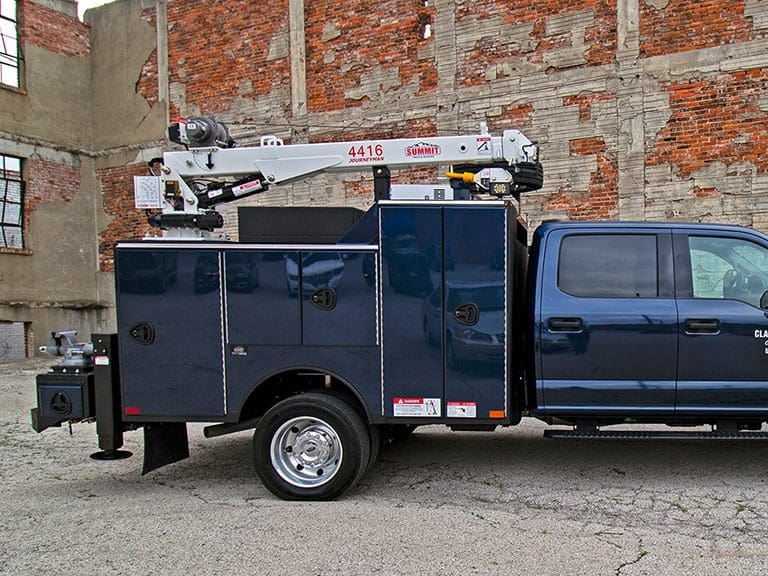

4416 electric Crane
Electric service truck crane
Summit’s electric service truck cranes are designed to meet the demands of today’s heavy equipment service industry.
Our service truck cranes are renowned for their unwavering reliability; they have proven their efficiency and effectiveness time and again, from harsh mining environments to bustling construction sites.
Our heavy-duty hydraulic telescopic service cranes provide the ideal lifting capacity, power, and versatility for your needs. With lifting capacities ranging from 6,000 to 14,000 pounds and a maximum horizontal distance of 21 or 29 feet, we guarantee that our cranes can effectively handle any job. At Summit, we prioritize strength, reliability, and safety to ensure your project is completed with the utmost precision and accuracy.

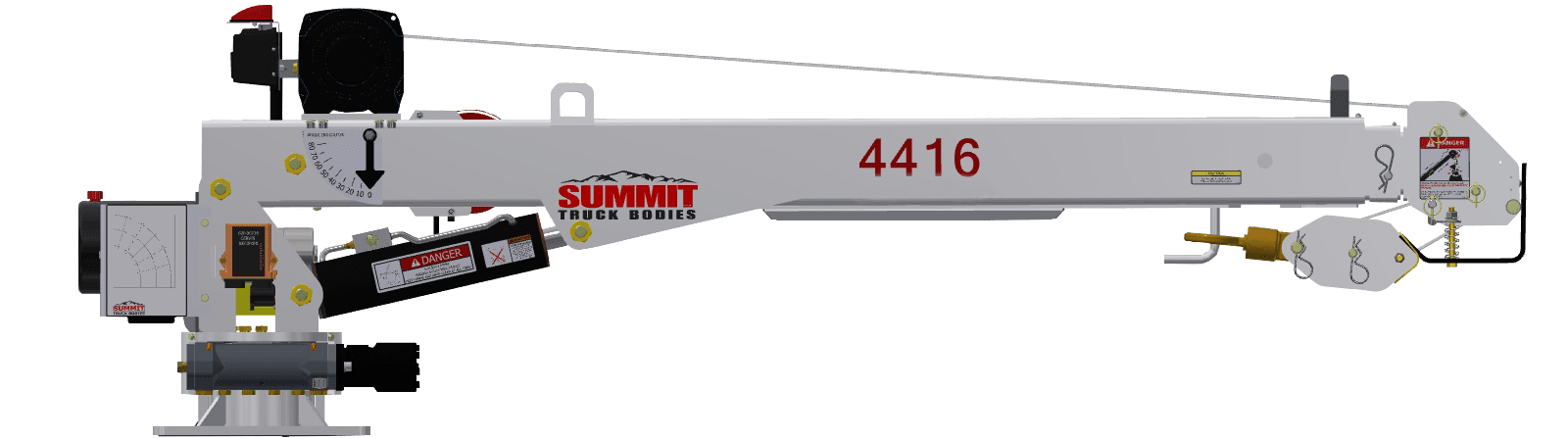

4416 E
Telescopic electric Crane
4416E Crane Specifications
| Max Lifting Capacity | 4,000 lb. (1814.3 kg) |
| Crane Rating | 16,000 ft-lb. (21.6 kN-m) |
| Standard Boom Length (ret) | 8’0” (2.4 m) from CL of Crane |
| Boom Extension | 1st Stage Hydraulic 48” (121.9 cm) 2nd Stage Manual 48” (121.9 cm) |
| Max. Horizontal Reach (ext) | 16’ (4.8 m) from CL of Crane |
| Boom Elevation | -5° to +75° |
| Rope Diameter | 1/4″ (0.6 cm) |
| Max. Winch Line Pull Speed | 22 ft/min (6.7 m/min) |
| Max. Single Part Line | 2,000 lb. (907 kg) |
| Max. Double Part Line | 4,000 lb. (1814 kg) |
| Rotation | 360° Continuous |

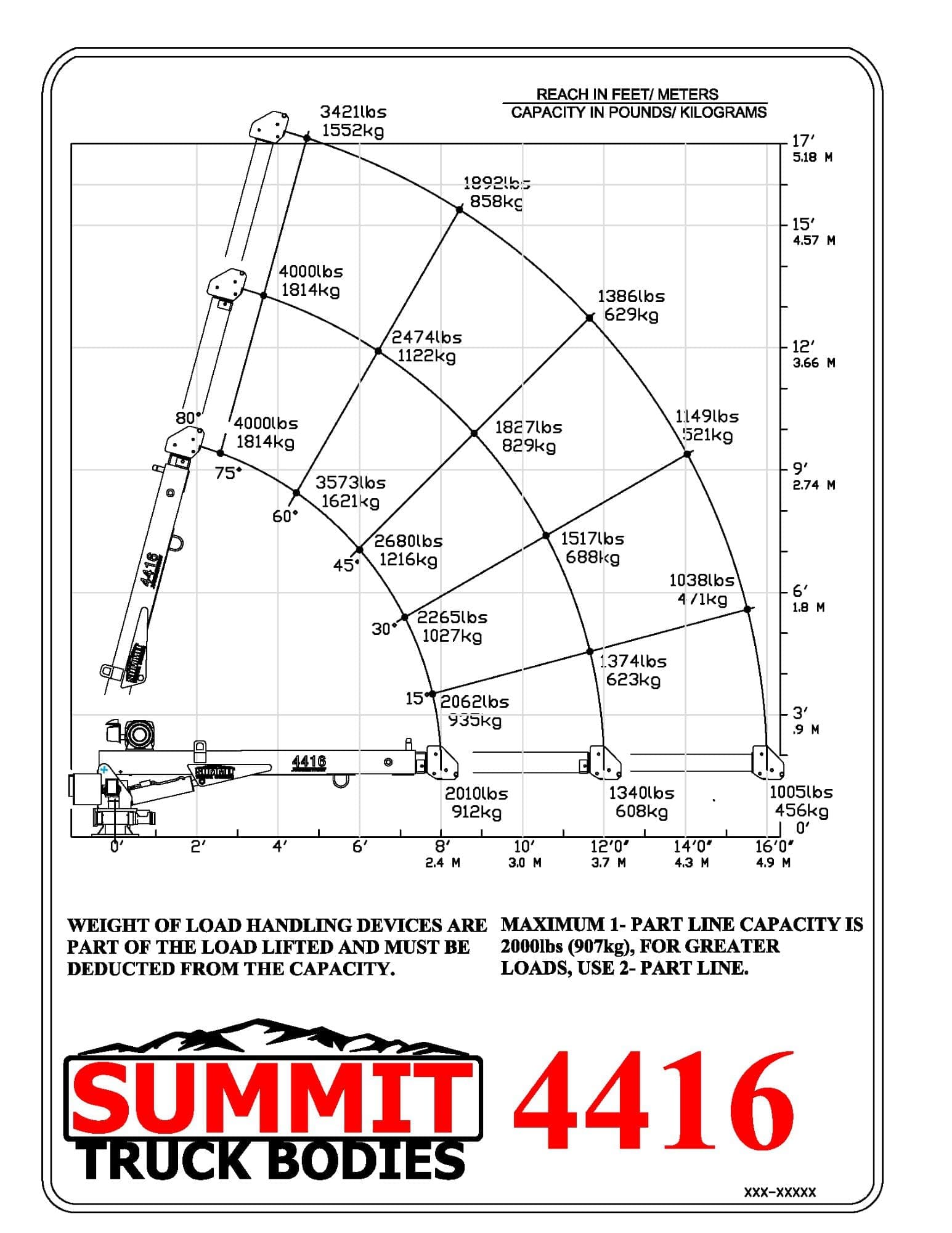

| Lifting Capacities | 4,000 lb. @ 4’ (1814 kg @ 1.2 m) 2,667 lb. @ 6’ (1209 kg @ 1.8 m) 2,000 lb. @ 8’ (907 kg @ 2.4 m) 1,333 lb. @ 12’ (604 kg @ 3.6 m) 1,143 lb. @ 14’ (518 kg @ 4.2 m) 1,000 lb. @ 16’ (453 kg @ 4.8 m) |
| Mounting Space Reqd | 17 1/2” x 17 1/2” (44.4 cm x 44.4 cm) |
| Approx. Weight | 825 lb. (375 kg) |
| Controls | Single-function Wireless Control System |
| Power Supply Reqd | 12V DC Hydraulic Power Unit 1.3 gpm (4.9 lpm) @ 2800 psi |
4416E Electric Service Truck Crane Features
Summit 4K hydraulic crane is commonly mounted on our 7 Series truck body.
- Boom mounted winch
- 360° Continuous Rotation
- Overload Protection
- Auto-release hook stow
- PPG powder-coated boom
- ANSI B30.5a and OSHA 1910.180
- Single-function Wireless Control
Crane Options
- Crane Lights with swivel bracket
- Tire Jib
- Synthetic Rope
Wireless Crane Control
If you want to upgrade your current crane or need to replace an older crane, we can help. Summit Truck Bodies parts department handles factory direct crane sales. All our ship-out electric cranes are shipped with the standard single-function wireless control system. This wireless control system is an easy-to-use plug-and-play control system. It comes with a radio receiver and wireless radio transmitter.
Electric Transmitter Features
- Lightweight
- Impact Resistant
- Overload Protection
- Powered with 2 AA Batteries
- LED Indicator
- TX Flashing = Remote is ON
- Red Flashing = Low Battery
Crane Comparison Chart
Summit Crane Specifications
| Model | 4416E | 6422E | 6620 | 6629 | 7529 | 10620 | 10629 | 12629 | 14629 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Lift Capacity (lb) | 4,000 | 6,000 | 6,000 | 6,000 | 7,500 | 10,000 | 10,000 | 12,000 | 14,000 | ||||||||||||||
| Crane Rating (ft-lb) | 16,000 | 36,000 | 38,000 | 38,000 | 45,000 | 60,000 | 60,000 | 66,000 | 70,000 | ||||||||||||||
| Standard Boom Length(ret) | 7′ | 10′ 6″ | 10′ 7″ | 12’9 | 14′ 5″ | 10′ 9″ | 13′ 7″ | 13′ 5″ | 13′ | ||||||||||||||
| Max Horizontal Reach(ext) | 16′ | 22′ | 20′ 8″ | 28′ 7″ | 29′ | 20′ 8″ | 28′ 8″ | 28′ 9″ | 29′ | ||||||||||||||
| Max Vertical Lift Height | 16′ | 23′ | 22′ | 29′ 4″ | 22′ | 29 4″ | 29′ 4″ | 30′ 6″ | |||||||||||||||
| Boom Elevation | -5° to 75° | ||||||||||||||||||||||
| Crane Rotation | 360° Continuous | 400° Continuous | |||||||||||||||||||||
| Max Winch Line Speed | 22 ft/mn | 30 ft/min | 60 ft/min | ||||||||||||||||||||
| Rope Diameter | 1/4″ | 5/16″ | 3/8″ | 3/8″ | 7/16″ | 7/16″ | 7/16″ | 7/16″ | 12″ | ||||||||||||||
| Stowed Height (crane only) | 34 9/16″ | 37 7/8″ | 40 5/8″ | 40 5/8″ | 43″ | 41 1/4″ | 41 1/4″ | 42 3/8″ | 52 1/4″ | ||||||||||||||
| Approx Weight | 825 lb | 1,817 lb | 1,720 lb | 1,900 lb | 2,100 lb | 2,350 lb | 2,620 lb | 2,640 lb | 3,440 lb | ||||||||||||||
| Mountaing Space Reqd | 14″ x 14″ | 18″ x 18″ | 21″ x 25″ | 21″ x 25″ | 21″ x 25″ | 21″ x 25″ | 21″ x 25″ | 21″ x 25″ | 21″ x 25″ | ||||||||||||||
| Controls | Single-function Wireless Controls | Wireless Control System Standard: ASE Phase 4 or Phase 1(ship out cranes only) | |||||||||||||||||||||
| Power Supply Reqd | 12VDC |
|
|||||||||||||||||||||
| * Specifications are subject to change without notification. | |||||||||||||||||||||||
Learn about pricing
Talk to your regional sales rep about hydraulic or electric truck cranes you need to help improve safety and productivity on the job site or call our factory Parts Sales Department to add or replace many of the options.
