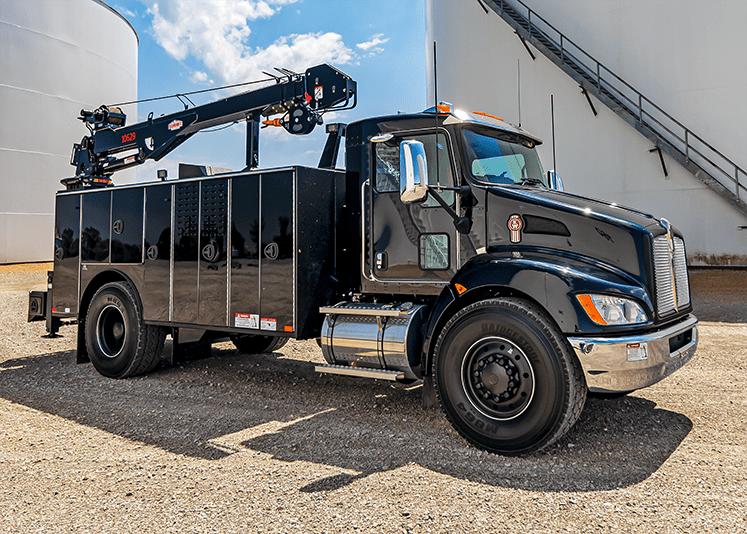

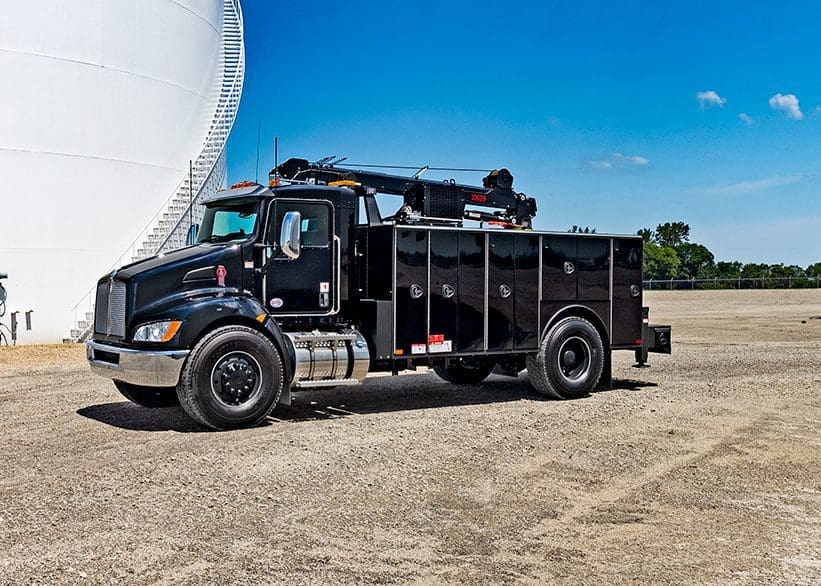

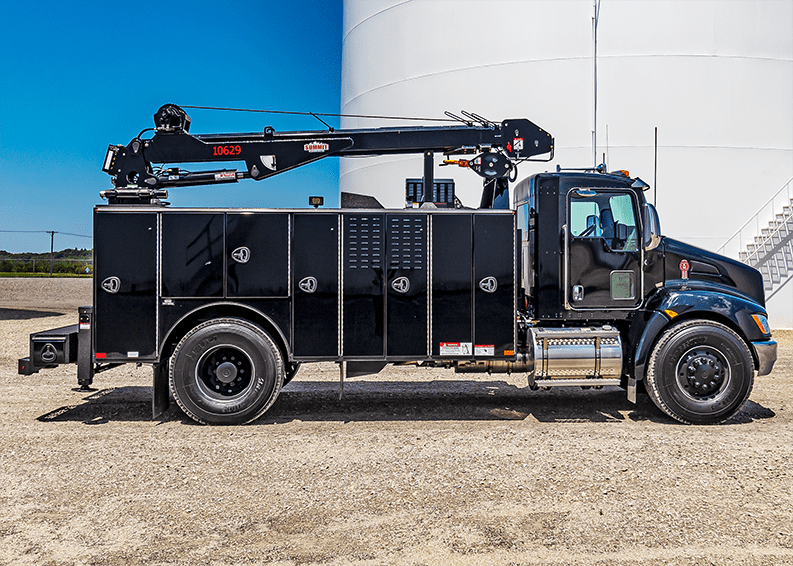

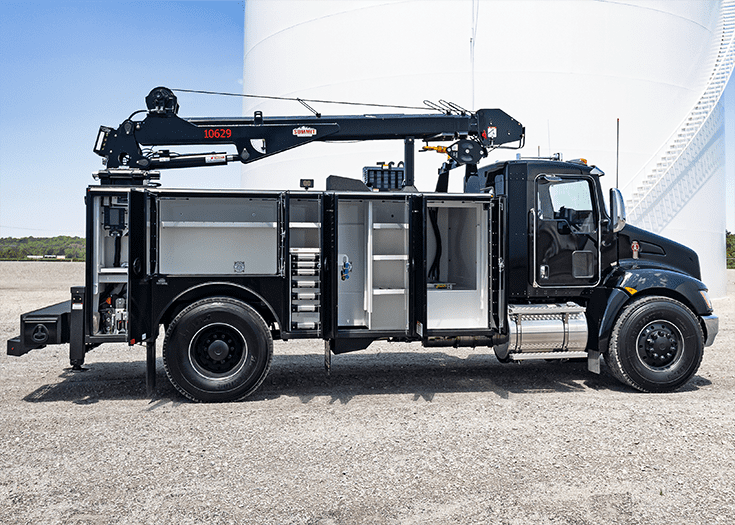

10 Series

heavy-duty service truck

When the job demands strength and reliability, the 10 Series heavy-duty service truck rises to the challenge.

Designed to tackle the most challenging tasks, this versatile mechanics truck is built to keep your team efficient and your equipment running in peak condition.

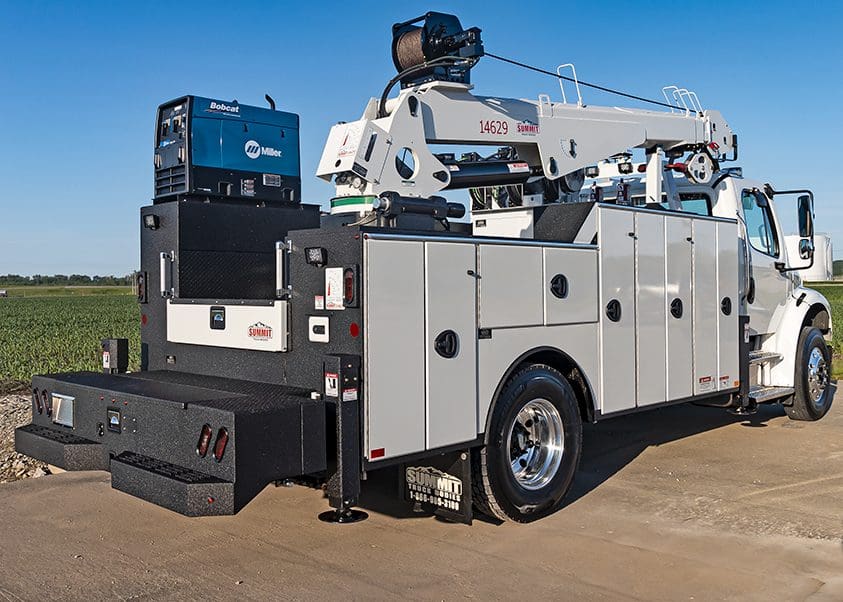

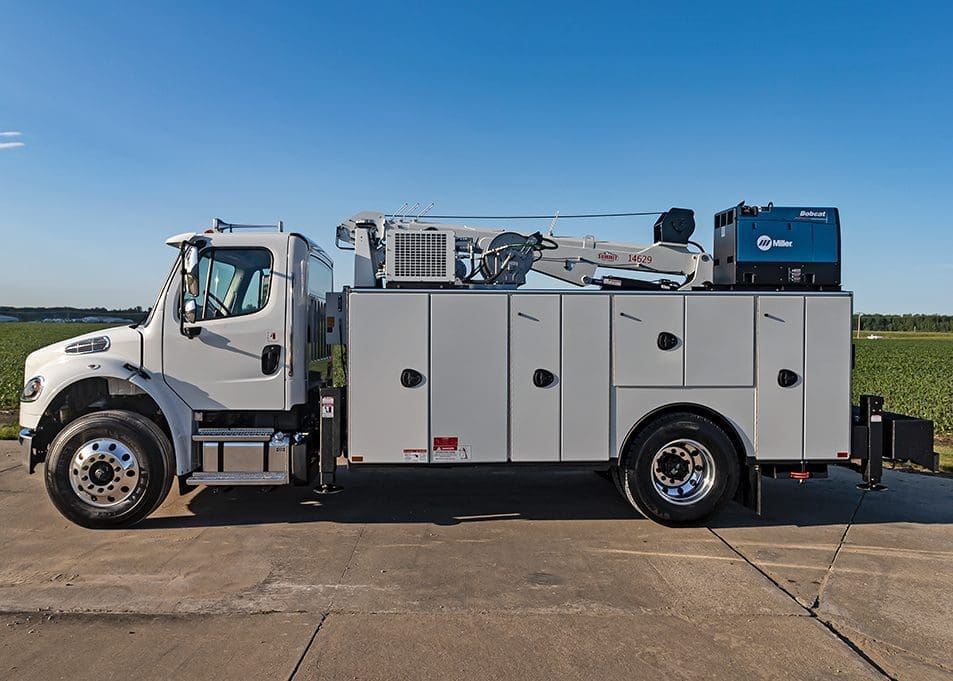

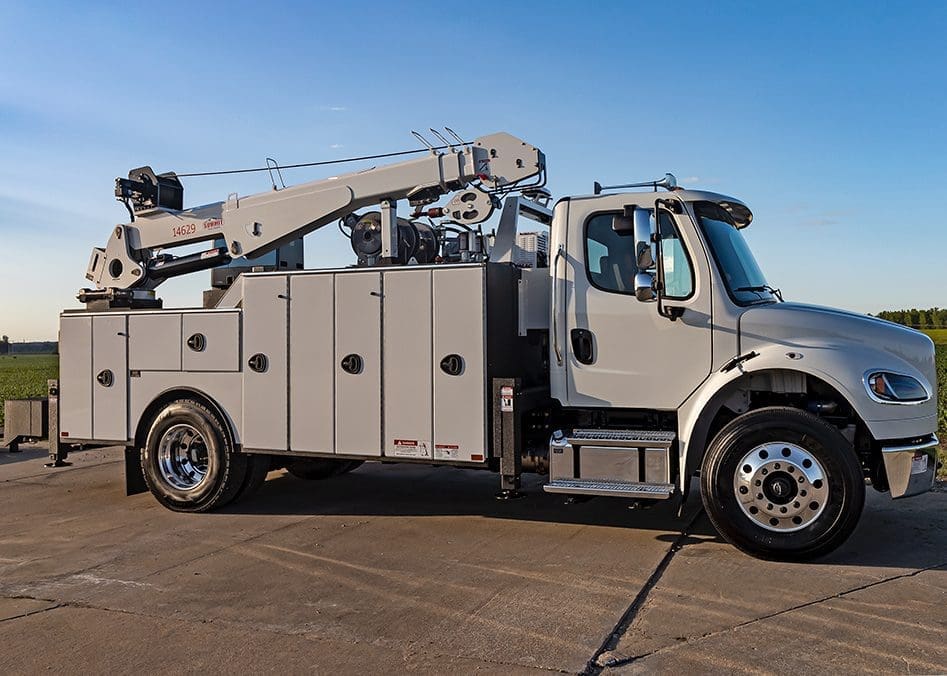

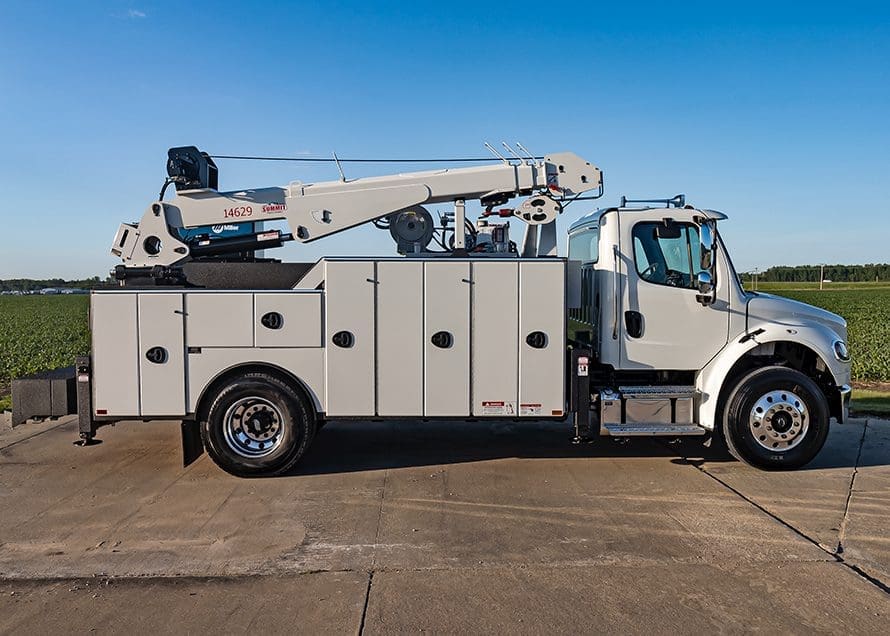

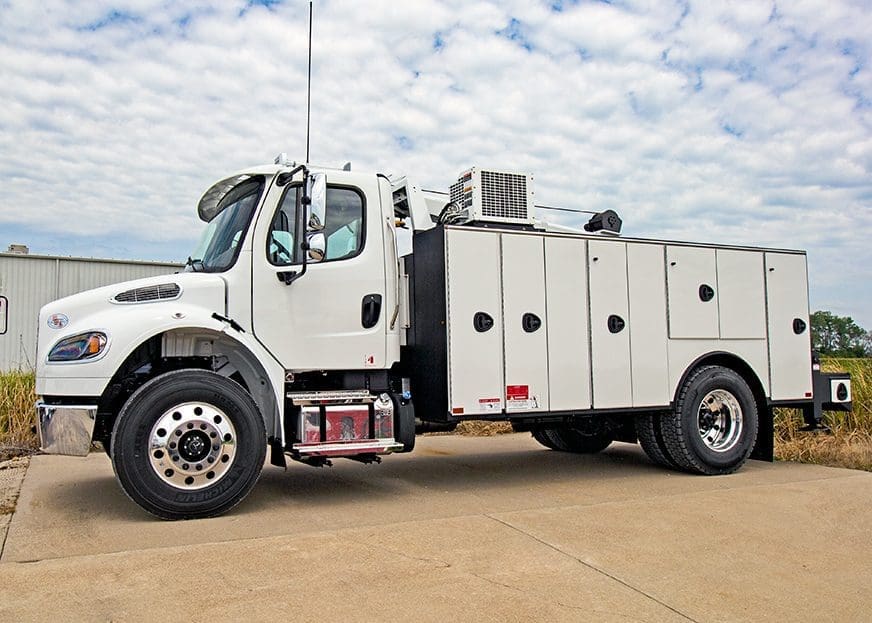

Mounted on a 33,000 GVWR chassis, the 14’ service body is engineered for power and versatility. It accommodates cranes with up to 14,000 lbs capacity, making it ideal for heavy lifting in demanding work environments.

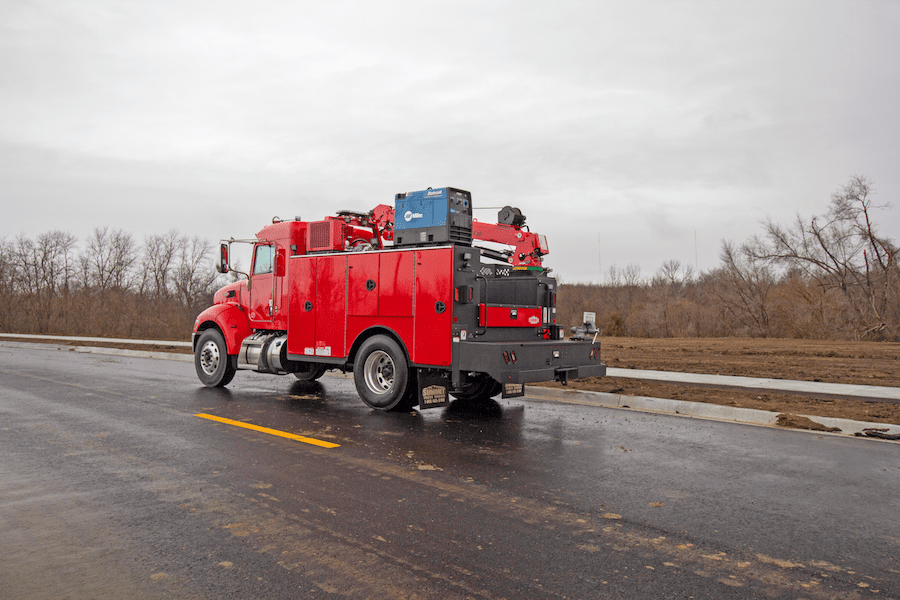

What sets the 10 Series apart is its adaptability. Frequently customized into a service-lube combo, this heavy-duty service truck doubles as a mechanics truck, allowing technicians to perform maintenance and repairs on-site efficiently. From rugged construction sites to remote locations, this truck ensures your team has the tools they need right where they need them.

Highlights

The 10 Series heavy-duty service truck is designed with features that prioritize durability, efficiency, and safety. These highlights make it the ultimate mechanics truck for demanding work environments

Built with premium materials, Summit truck bodies are engineered to endure tough jobs and deliver long-lasting performance.

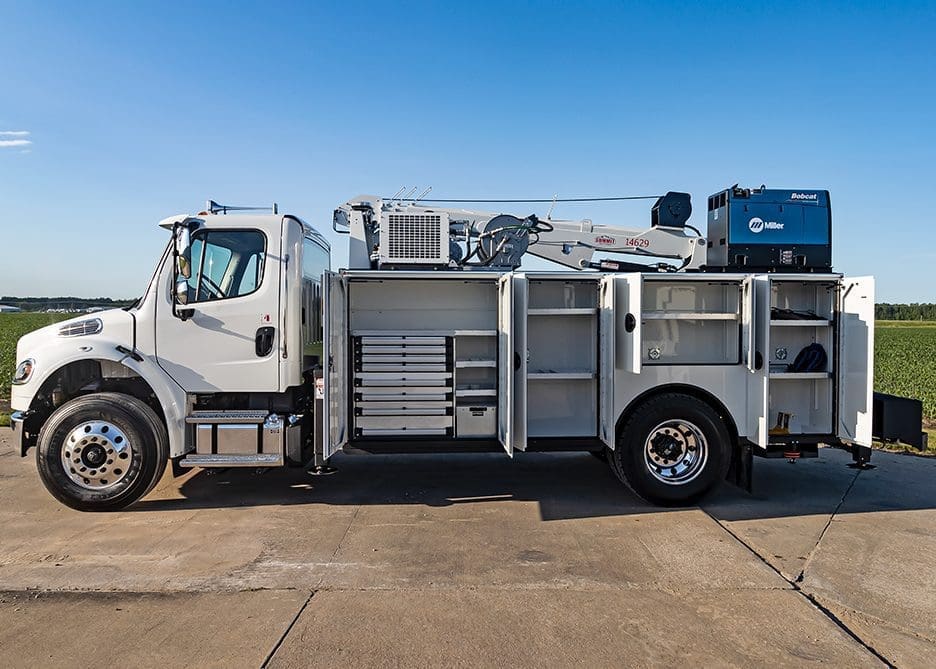

With 222 cubic feet of storage, the thoughtfully configured compartments are designed to improve efficiency and keep tools organized.

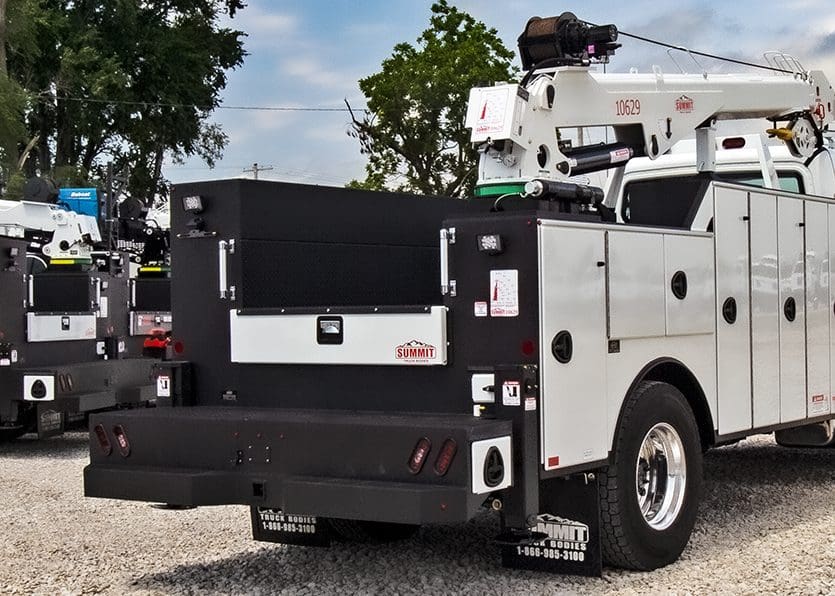

The rugged tool bumper includes grip strut steps and grab handles, ensuring safe and easy access to the cargo area.

Our ASE integrated operating system offers intuitive control of crane, body, and chassis functions, delivering enhanced safety and streamlined operations on the job site.

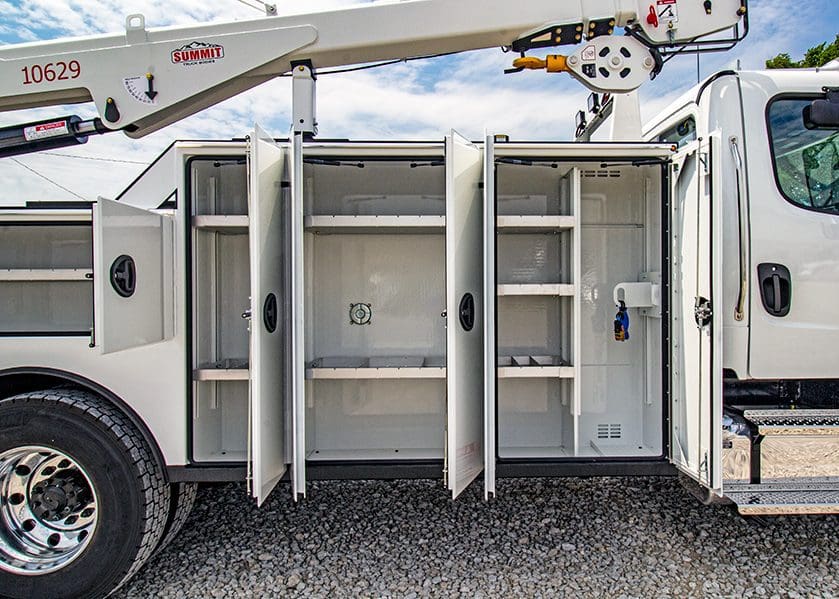

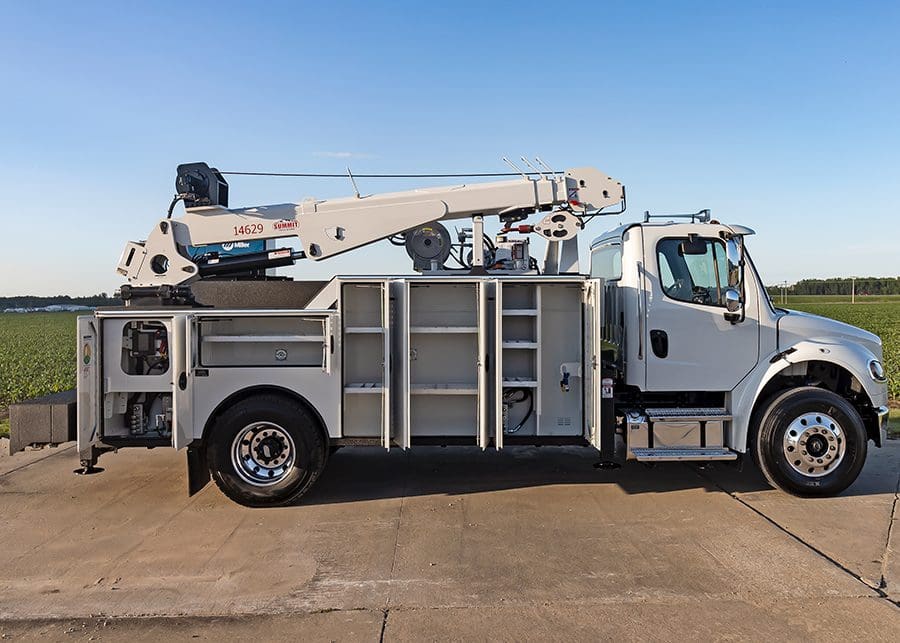

storage compartments with aluminum shelves

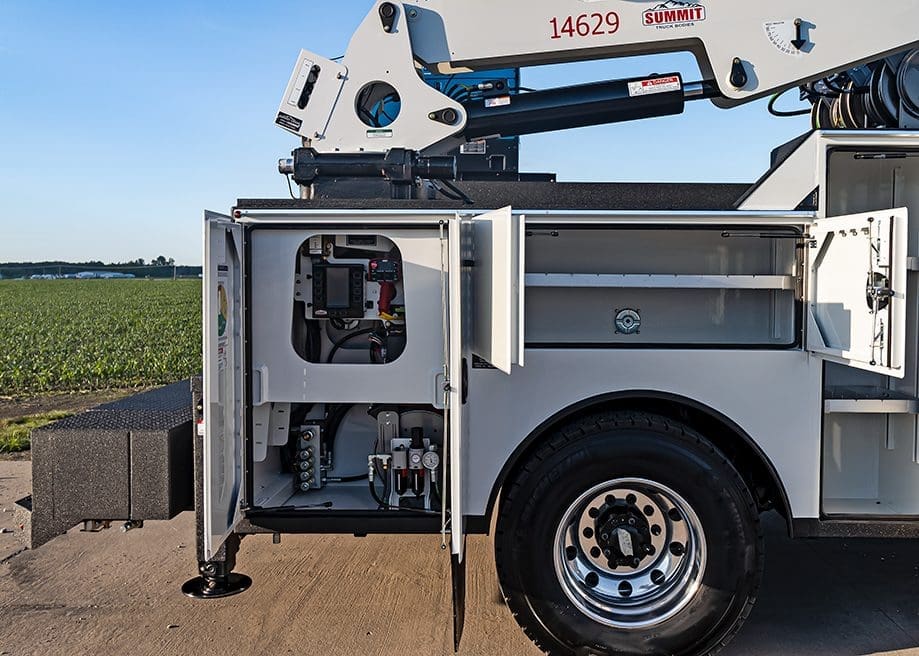

summit ASE cranes controls system with LMI data

10 Series

Common Applications

The 10 Series heavy-duty service truck is built to adapt to your unique job requirements, regardless of location or conditions. Frequently customized as a service-lube combo, this versatile mechanics truck thrives in remote and rugged work environments.

Ideal for construction companies, heavy equipment dealers, and equipment rental businesses, the 10 Series is designed to maximize equipment uptime. Whether maintaining machinery on a busy construction site or performing repairs in a remote mine, this truck ensures your team has everything they need to keep operations running smoothly.

With its durable design and extensive customization options, the 10 Series is a dependable solution for industries that demand reliability and efficiency.

Features

The 10 Series heavy-duty service truck is designed with top-tier features that prioritize durability, safety, and efficiency. Each component is carefully selected to meet the demands of your work environment.

Standard Body

10 ga. galvannealed steel body construction
1/8” aluminum bolt-on doors with an internal frame
Full-length piano-style aluminum hinges
Automotive-style bulb weather stripping
Ergonomic three-point compression door latches keep compartments sealed tight.
Aluminum drip rail above compartment doors
3/16” diamond tread plate floor in the cargo area reduces the risk of slips and falls.
Swivel D-ring tie-downs flush-mounted on the cargo area walls: Qty 6
- 6,000 lbs. Capacity
A fully integrated crane support structure

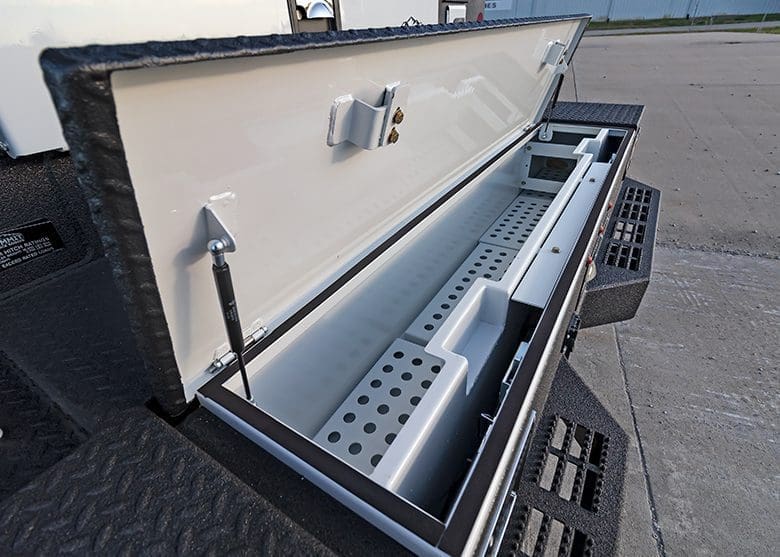

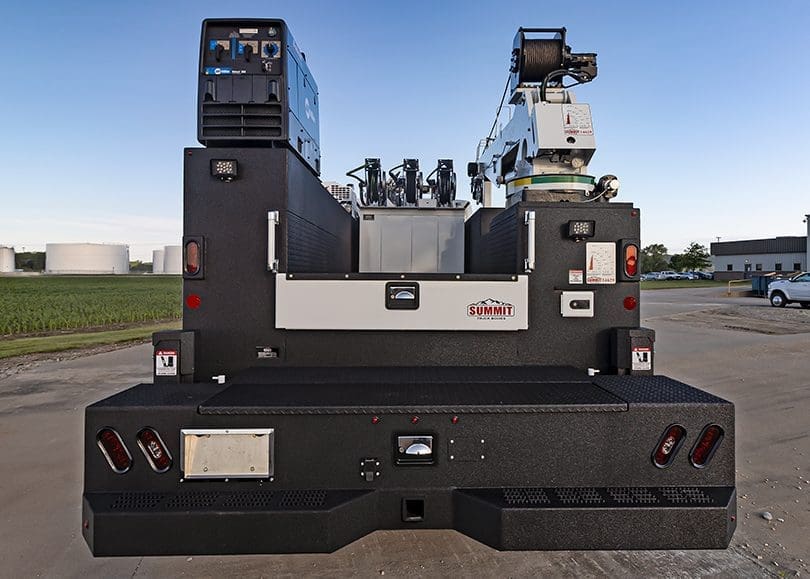

24” D tool bumper with storage compartment
- Integrated bumper steps with grip strut provide slip-resistant access to the cargo area.
- 2.5” 18,000 lbs automotive-style receiver hitch
Infinitely adjustable compartment shelves with dividers
Bright polished knurled grab handles mounted on the rear side packs aid in safe three-point access to the cargo area.
12” aluminum slam-style lockable tailgate

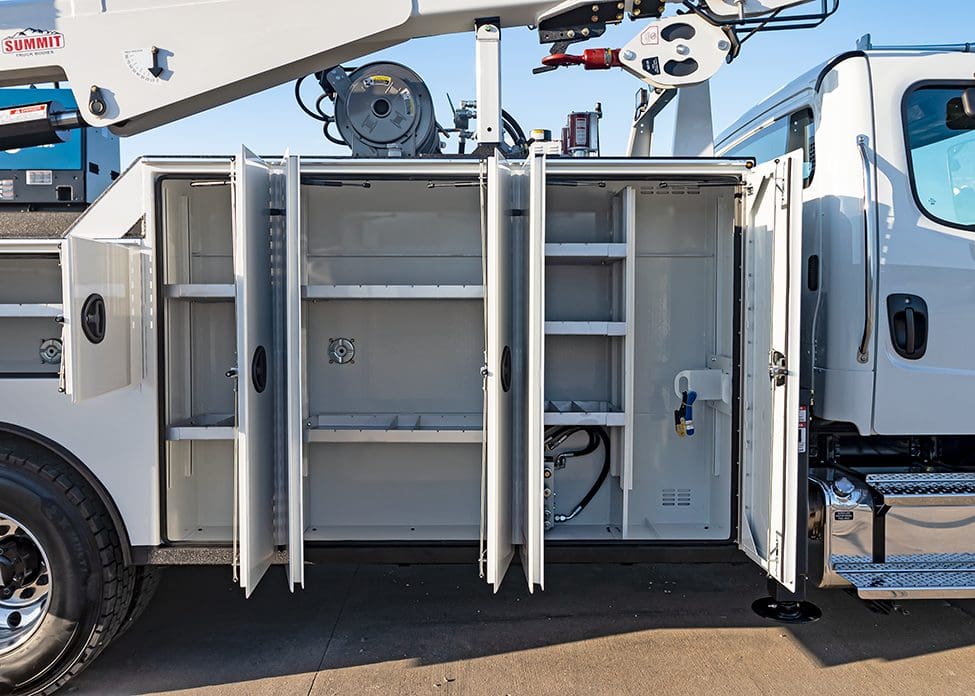

Torch bottle storage compartment
- Vented and reinforced floor
- Torch bottle retainer with ratchet straps

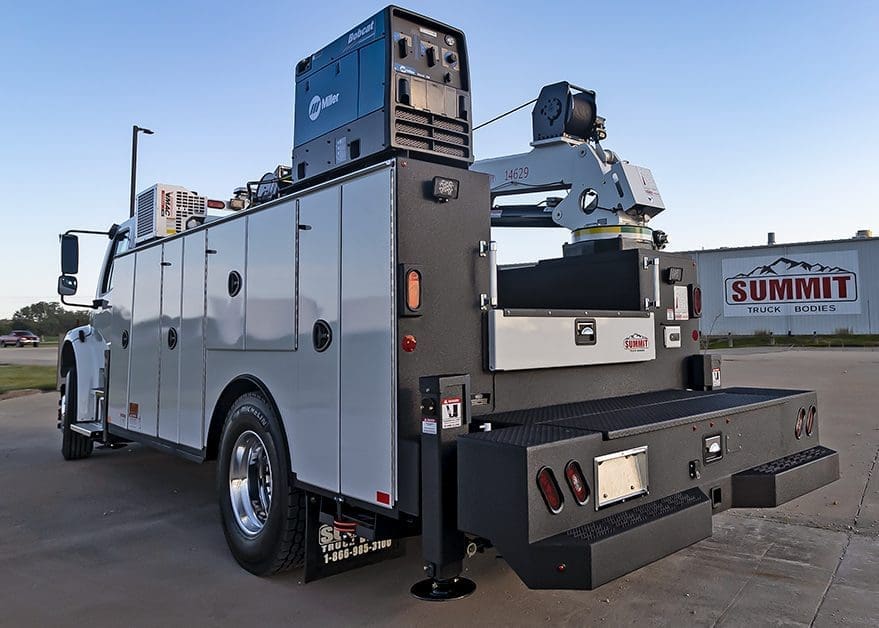

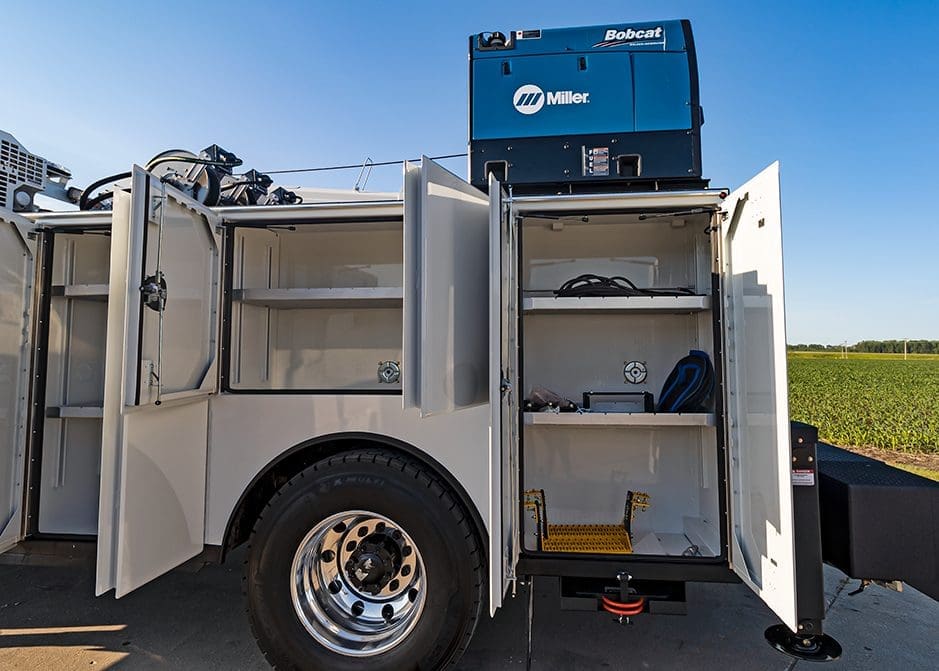

Reinforced welder riser mounting blocks on top of DS sidepack
Safety placards and decals

Paint & Protective Coatings

The three-step paint process gives the body a high-quality image and durability.
- Phosphate wash, epoxy primer, and topcoat.
- Five-year warranty against rust and corrosion
- Endless color options
Line-X protective coating applied to the cargo area, rear bumper, side pack front, top, back, and the entire length of the bottom edge of the body provides long-lasting protection from harsh elements.
Rubberized undercoating applied to the entire underside of the body optimizes durability.

Electrical & Light Package

LED Light Package
- Grommeted and flush-mounted
- Front and rear marker lights
- Oval stop/tail/turn lights on the rear bumper and headache rack
- Reverse lights on the rear bumper with a backup alarm
LED Rectangle work lights
LED compartment strip lights
Control lights from the ASE main control panel, chassis cab panel, and crane remote
7-way RV-style trailer plug
Control lights from control panels in the rear compartment and cab.
A weatherproof latching main body power panel was installed in the crane compartment.
- Includes push-button panel to control crane, outriggers, and 12V body accessories, including lights
Electrical wiring harnesses feature Deutsch connectors and braided protective sleeves.

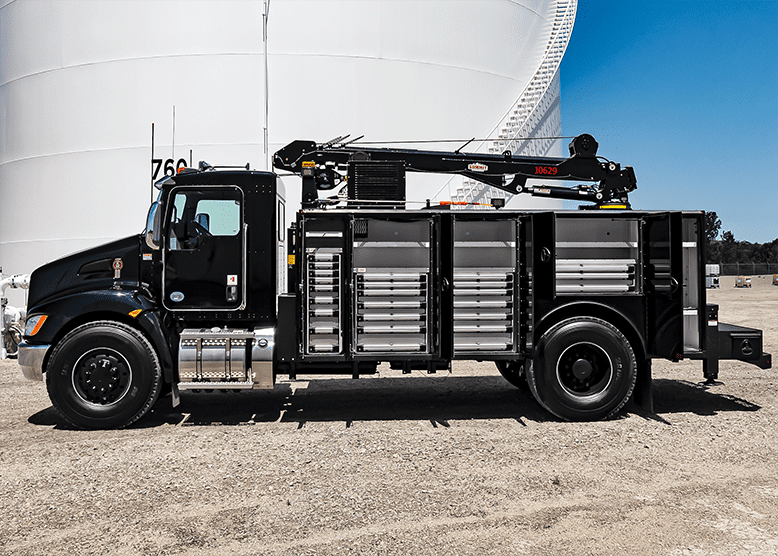

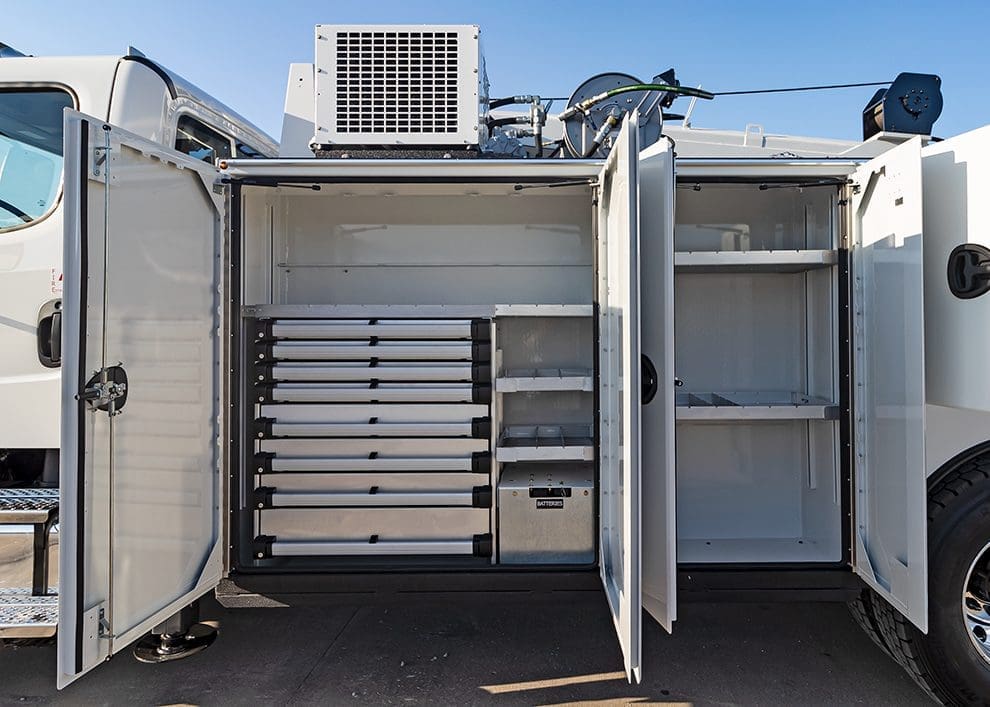

Tool Boxes

Summit designed and manufactured drawer packs.
.125” aluminum construction
Heavy-duty 600 lbs. slides fully extended.
Lock-in & lock-out slides.
Removable drawers.
Lock-in drawer dividers are standard.
Optional egg crating
Lockable single-action handle assembly.
Drawer depths of 3”, 5”, 7”
Custom widths from 12”-50”.
Custom riser heights.
An integrated top shelf with dividers.
Optional slide-out work tray.
Wrap or powder coat options add color & durability.
Cycle, load, shock, impact damage, incline, and vibration tested.

Hydraulic System

Open center fixed displacement gear pump.
PTO mounted to the transmission.
32-gal hydraulic reservoir

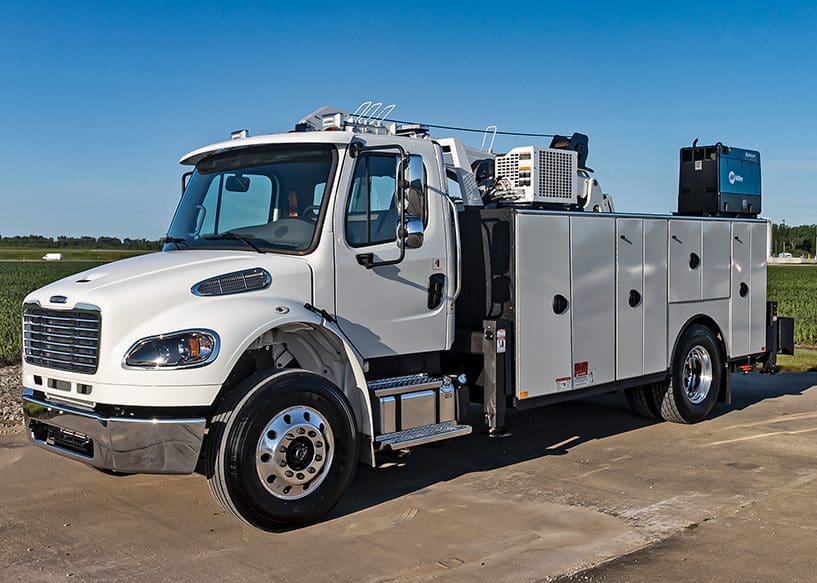

Air Compressor Systems

Hydraulic-driven reciprocating or rotary screw air compressor
40 CFM free air output at 100 psi
175 psi max output (reciprocating)
150 psi max output (rotary screw)
Hannay ½” x 50’ HD spring rewind hose reel
- 50’ air hose terminated with ½” male NPT hose end
- Payout door on the rear of the side pack
ASME underbody air receiver
- 15 gal air storage tank
- Mechanical air tank moisture drain
Norgren ½” Filter/Lubricator/Regulator

ASE Crane System

Safety and performance come standard with Summit’s Advanced Safety Electronics (ASE) Phase 4 control system.

Designed to enhance job site efficiency, this innovative system combines crane, body, and chassis operations through a network of switches and sensors that communicate in real-time.

The ASE system makes operating your heavy-duty service truck safer and more intuitive. It provides automated protection features, reduces risks in hazardous conditions, and delivers the data you need to make informed decisions. Built on the robust J1939 protocol, it integrates seamlessly with fleet telematics systems for comprehensive management.

Key Features:

Safety-First Design: Automated safety features prevent crane functionality under unsafe conditions.
Comprehensive Control: Operate the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights from three control points: rear compartment, cab panel, or wireless remote.
Real-Time Monitoring: Digital load moment indicator (LMI) displays alerts and data in clear, easy-to-read text, such as oil temperature, crane overload, or successful outrigger deployment.
Enhanced Efficiency: Streamlined operations increase productivity while reducing downtime.

The ASE system is standard on all Summit hydraulic crane service trucks, ensuring you’re equipped with the tools and technology to do the job safely and efficiently.

Learn more about ASE.
