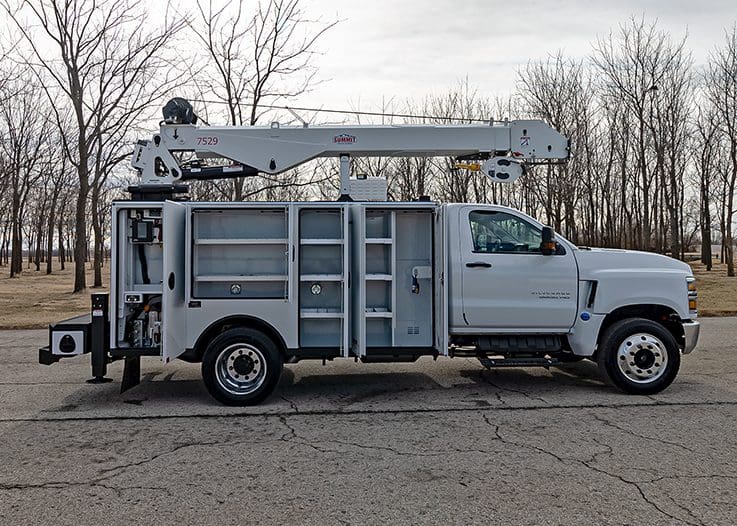

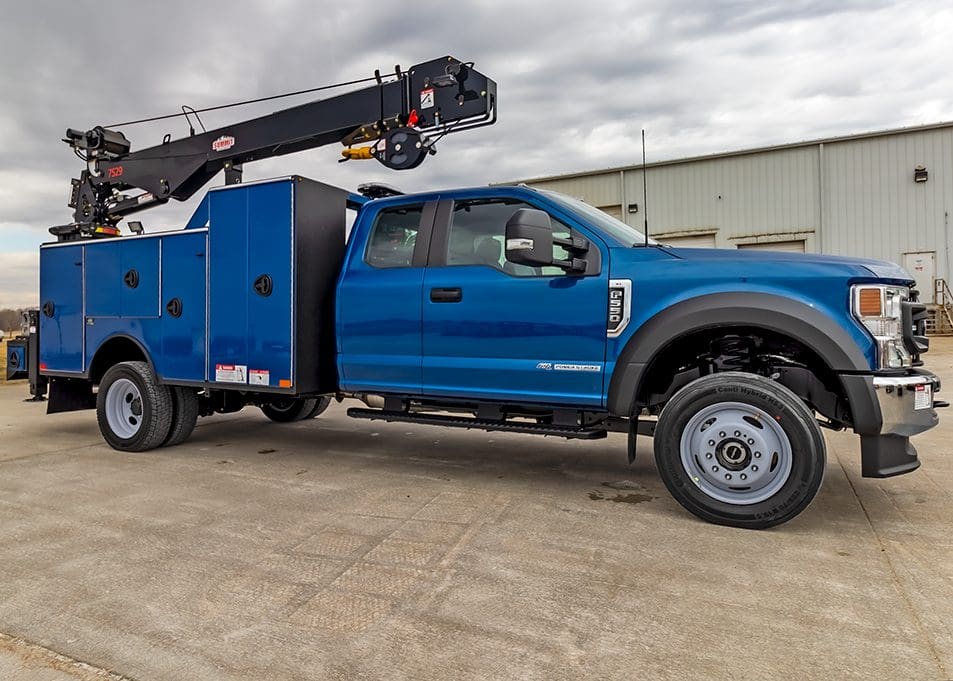

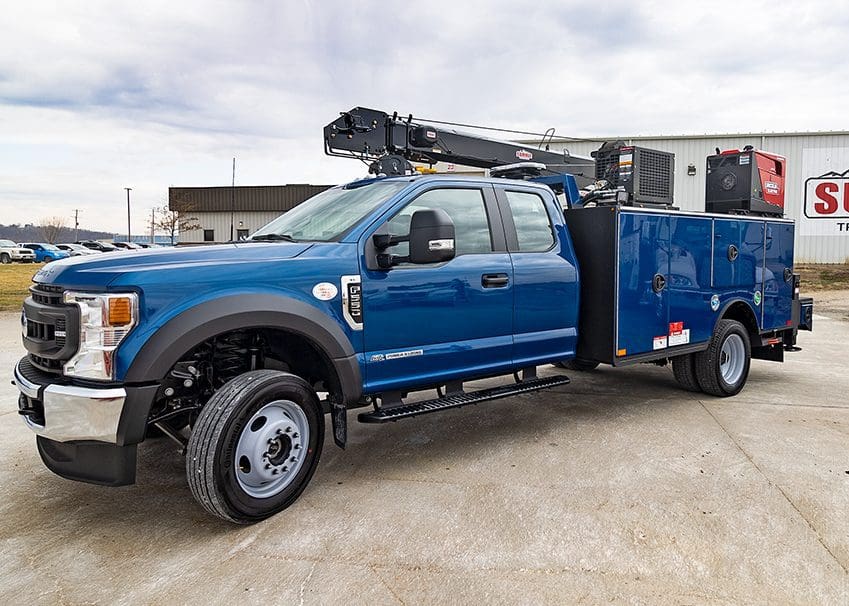

Summit 11 foot service truck body with custom paint

7 Series

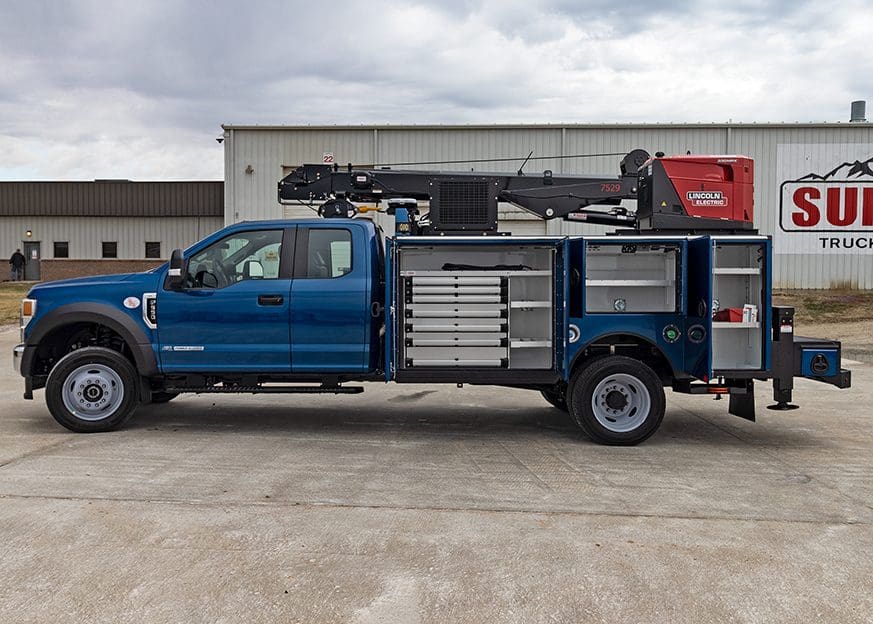

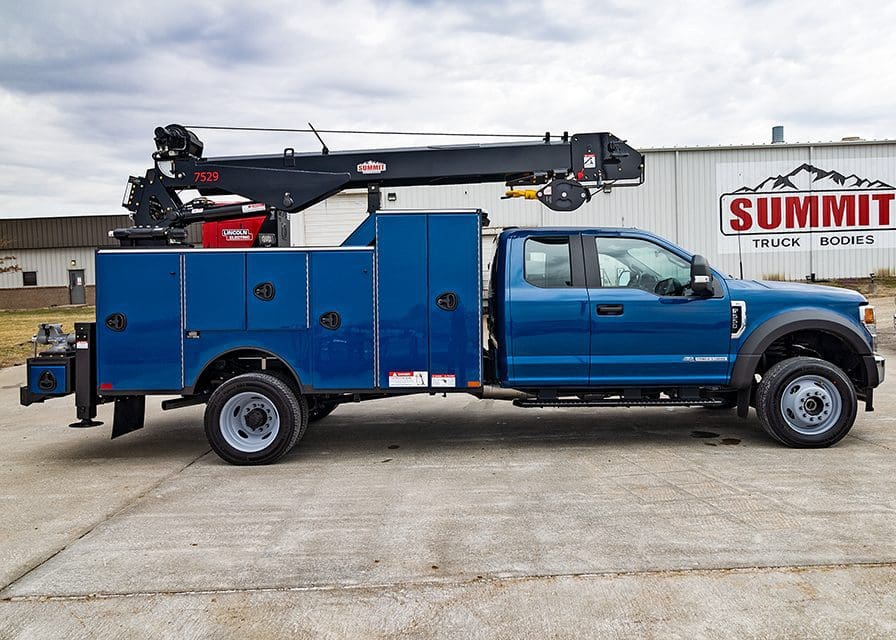

service truck with crane

When reliability and versatility matter, the 7 Series service truck with crane delivers. Built to handle the demands of medium-duty jobs, this truck is the perfect partner for your toughest tasks.

Designed for a chassis with a GVWR of up to 22,500 lbs, the 7 Series is engineered for strength and efficiency. Its 11-foot truck body can accommodate a crane with up to 7,500 lbs of lifting capacity, giving you the power to tackle heavy lifting with ease.

This medium-duty service truck is equipped with ample storage space for tools and parts, offering the flexibility to navigate busy city streets and remote job sites. Whether it’s maintenance or repairs, the 7 Series ensures you have everything you need to get the job done efficiently.

Highlights

The 7 Series service truck with crane has features that boost efficiency, durability, and safety, making it the ultimate medium-duty service truck for demanding work environments.

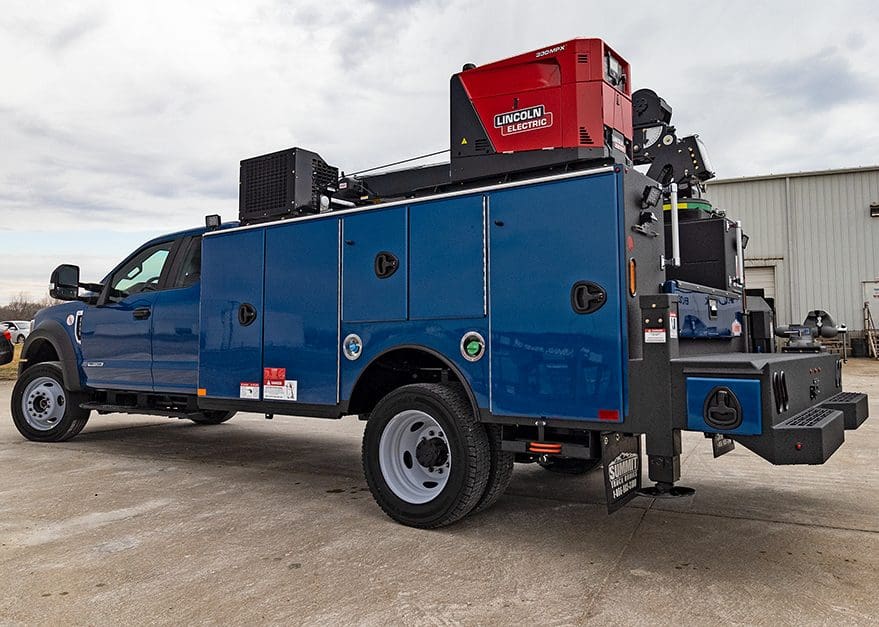

Built with premium materials and advanced manufacturing techniques, the 7 Series is engineered to withstand tough conditions and deliver long-lasting performance.

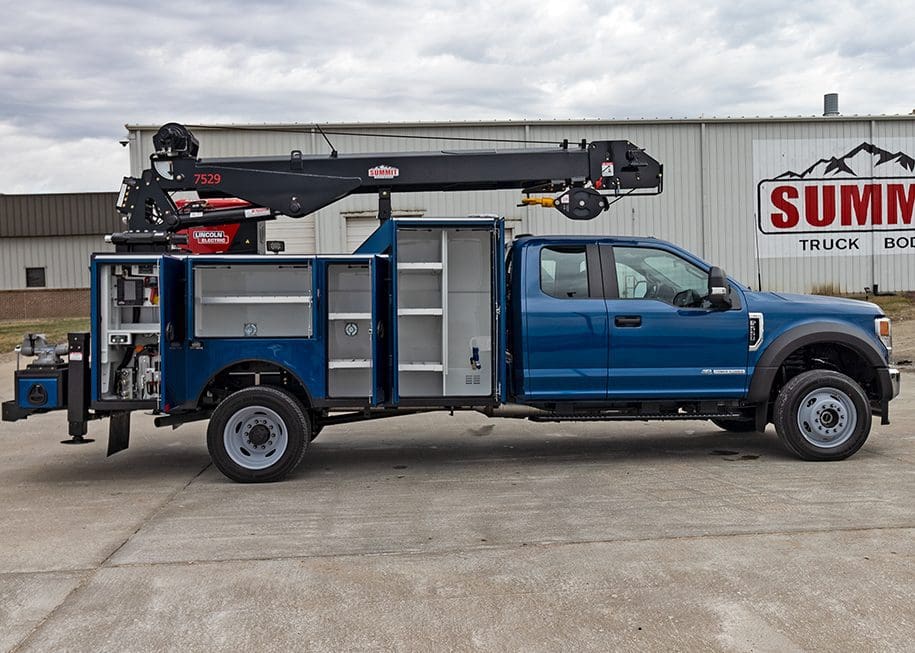

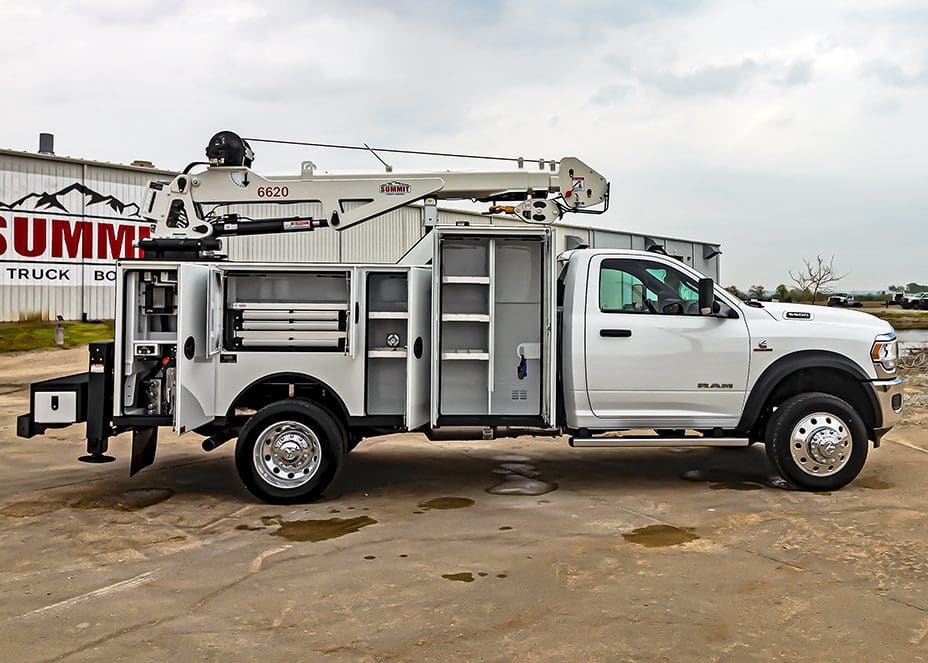

With 150 cubic feet of organized storage space, the 7 Series maximizes efficiency, ensuring your tools and parts are always within easy reach.

A robust tool bumper with integrated grip strut steps and grab handles provides safe, slip-resistant access to the cargo area.

Our user-friendly ASE system integrates crane, body, and chassis controls, offering a seamless and secure operating experience.

Summit crane control system home screen amd remote

7 Series

Common Applications

The 7 Series service truck with crane is designed to meet the diverse needs of industries that require power, flexibility, and reliability. This medium-duty service truck excels in environments ranging from remote locations to busy urban job sites.

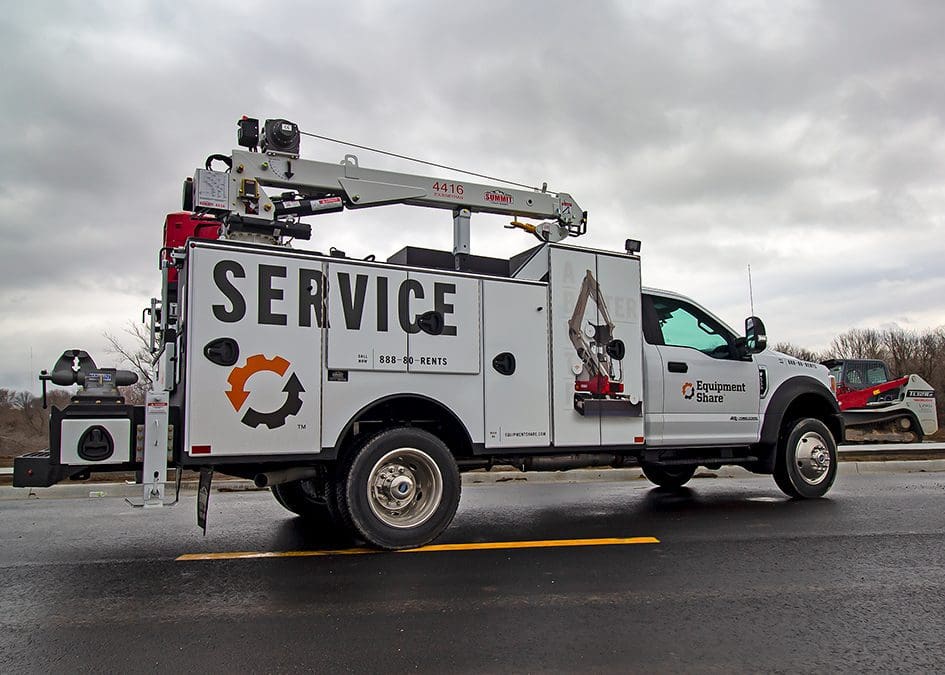

Construction companies, heavy equipment dealers, and technicians trust the 7 Series to transport tools, parts, and heavy equipment where needed most. Its durability and crane capabilities make it ideal for lifting, maintenance, and repairs in even the most demanding work conditions.

Whether navigating rugged terrains or tight city streets, the 7 Series is your go-to solution for efficiency and performance, ensuring the job gets done right the first time.

Features

The 7 Series service truck with crane has advanced features to maximize durability, safety, and functionality. As a versatile medium-duty service truck, it delivers the performance you need for any job.

Standard Body

12 ga galvannealed steel body construction
1/8” aluminum bolt-on doors with an internal frame
Full-length piano-style aluminum hinges
Automotive-style bulb weather stripping
Ergonomic three-point compression door latches keep compartments sealed tight.
Aluminum drip rail above compartment doors

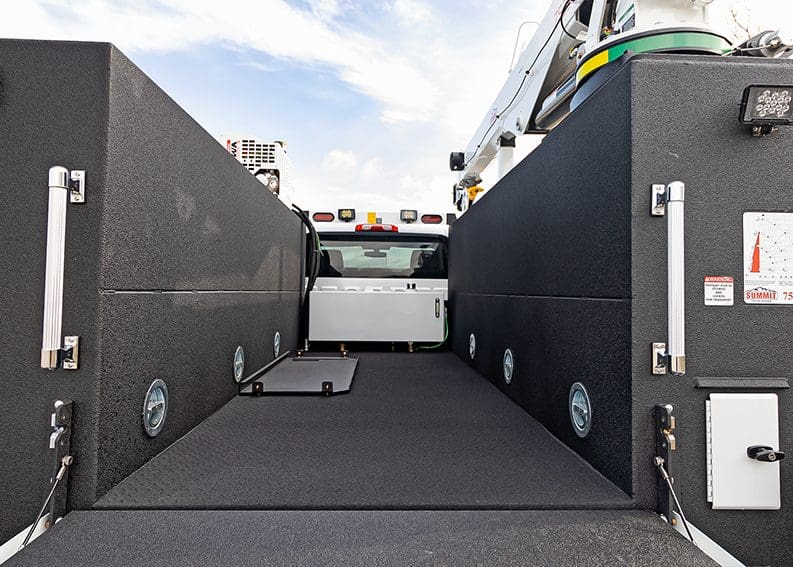

3/16” diamond tread plate floor in the cargo area to reduce the risk of slips and falls.
Swivel D-ring tie-downs flush-mounted on the cargo area walls: Qty 6
- 6,000 lbs capacity
A fully integrated crane support structure

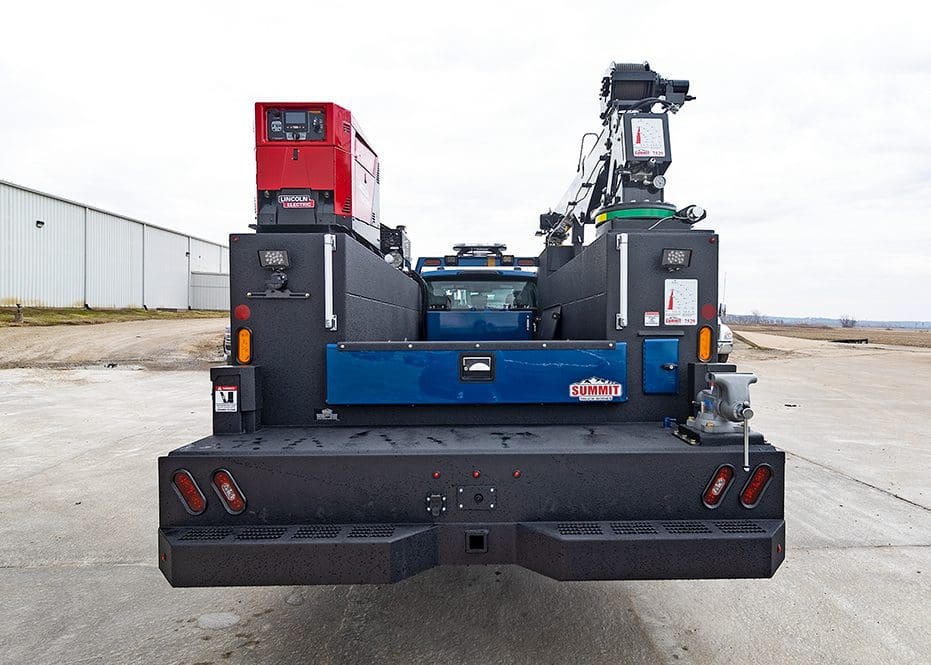

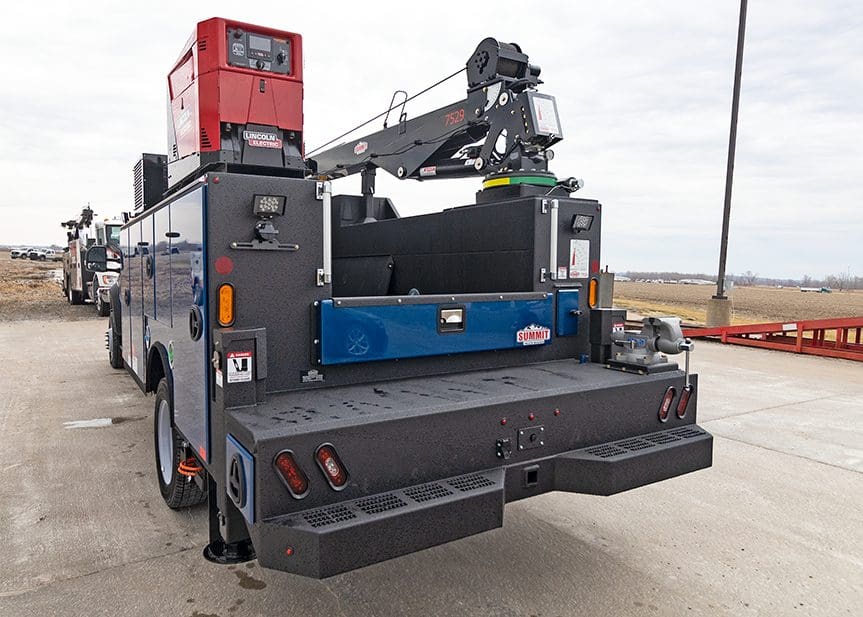

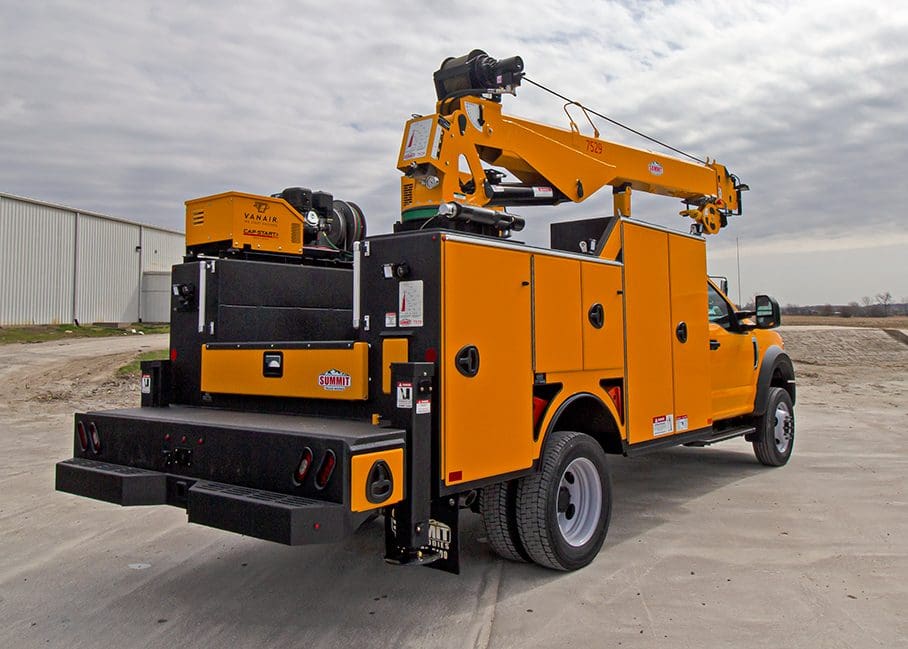

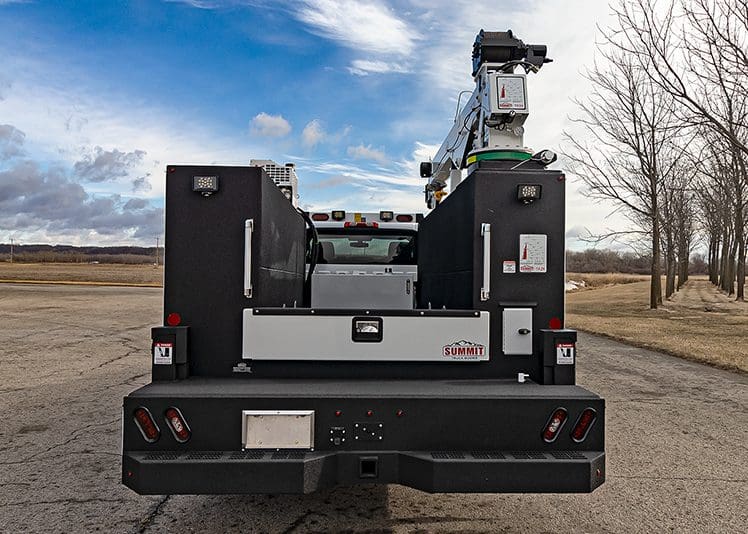

24” D tool bumper with storage compartment
- Integrated bumper steps with grip strut provide slip-resistant access to the cargo area.
- 2.5” 18,000 lbs automotive-style receiver hitch

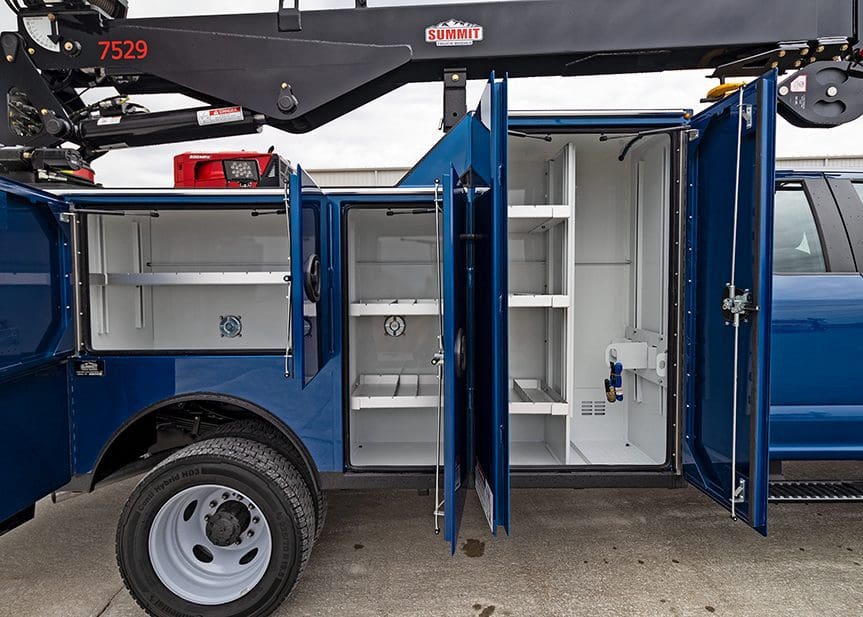

Infinitely adjustable compartment shelves with dividers
Bright polished grab handles mounted on the rear side packs aid in safe three-point contact access to the cargo area.
12” aluminum slam-style lockable tailgate

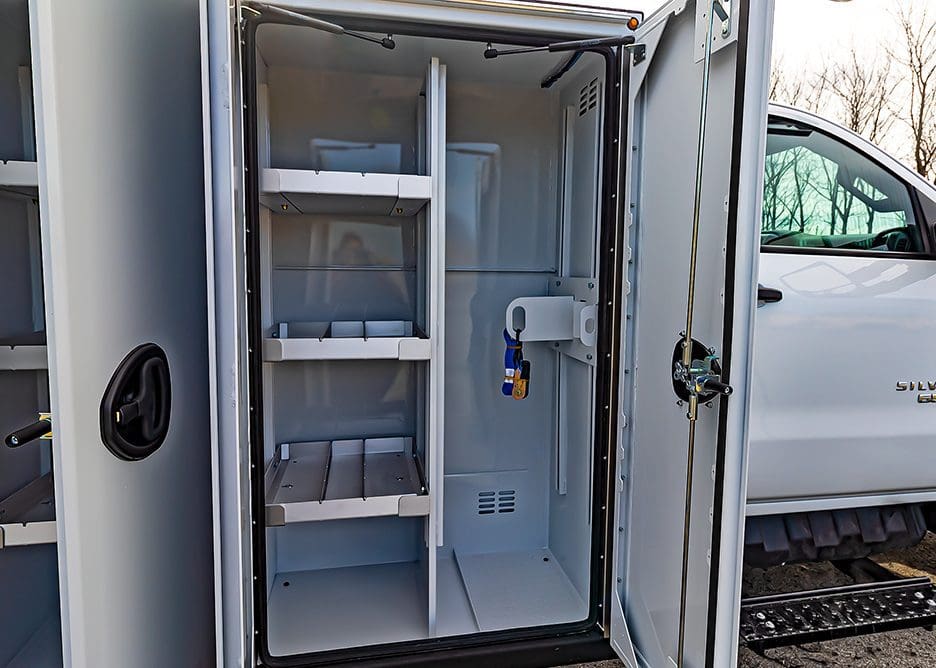

Torch bottle storage compartment
- Vented and reinforced floor
- Torch bottle retainer with ratchet straps
Reinforced welder riser mounting blocks on top of DS sidepack
Safety placards and decals

Paint & Protective Coatings

The three-step Akzo Nobel paint process gives the body a high-quality image and durability.
- Phosphate wash, Akzo Nobel epoxy primer, and PPG topcoat
- Five-year warranty against rust and corrosion
- Endless color options
Line-X protective coating applied to the cargo area, rear bumper, side pack front, top, back, and the entire length of the bottom edge of the body provides long-lasting protection from harsh elements.
Rubberized undercoating applied to the entire underside of the body optimizes durability.

Electrical & Light Package

LED Light Package
- Grommeted and flush-mounted
- Front and rear marker lights
- Oval stop/tail/turn lights on the rear bumper and headache rack
- Reverse lights on the rear bumper with a backup alarm
LED rectangle work lights
LED compartment strip lights
Control lights from the ASE main control panel, chassis cab panel, and crane remote
7-way RV-style trailer plug
Control lights from control panels in the rear compartment and cab

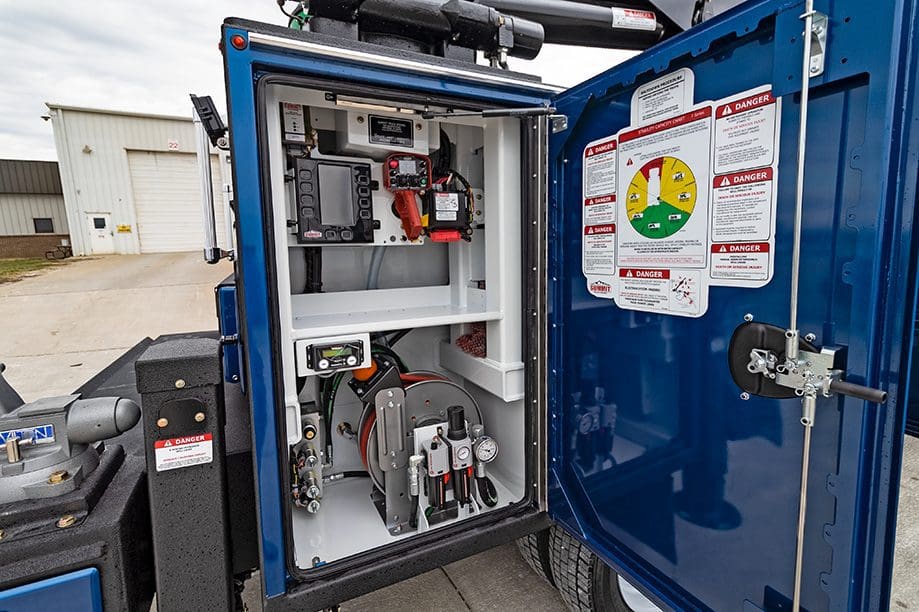

A weatherproof latching main body power panel is installed in the crane compartment.
- Includes push-button panel to control crane, outriggers, and 12V body accessories, including lights
Electrical wiring harnesses feature Deutsch connectors and braided protective sleeves

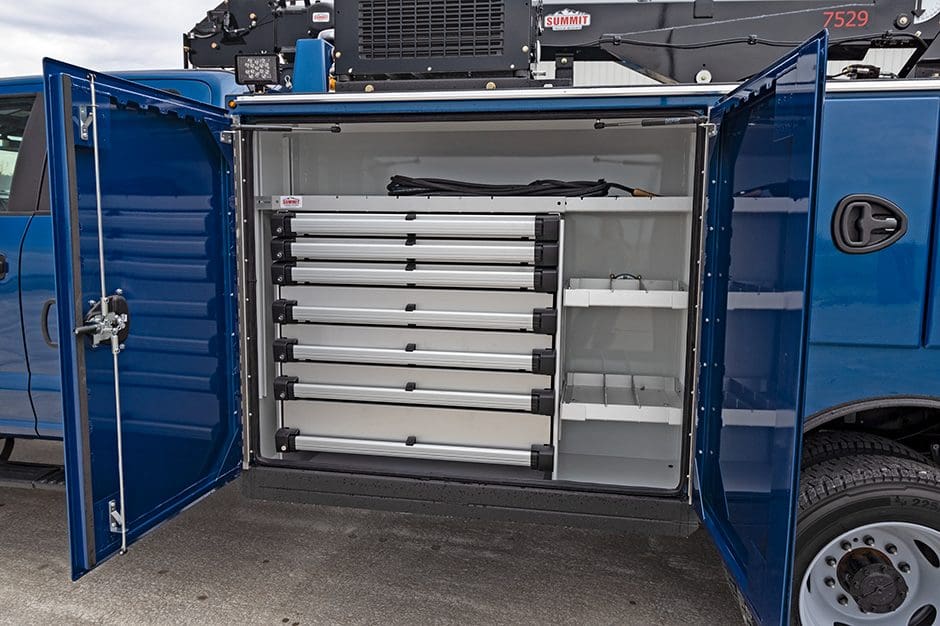

Tool Boxes

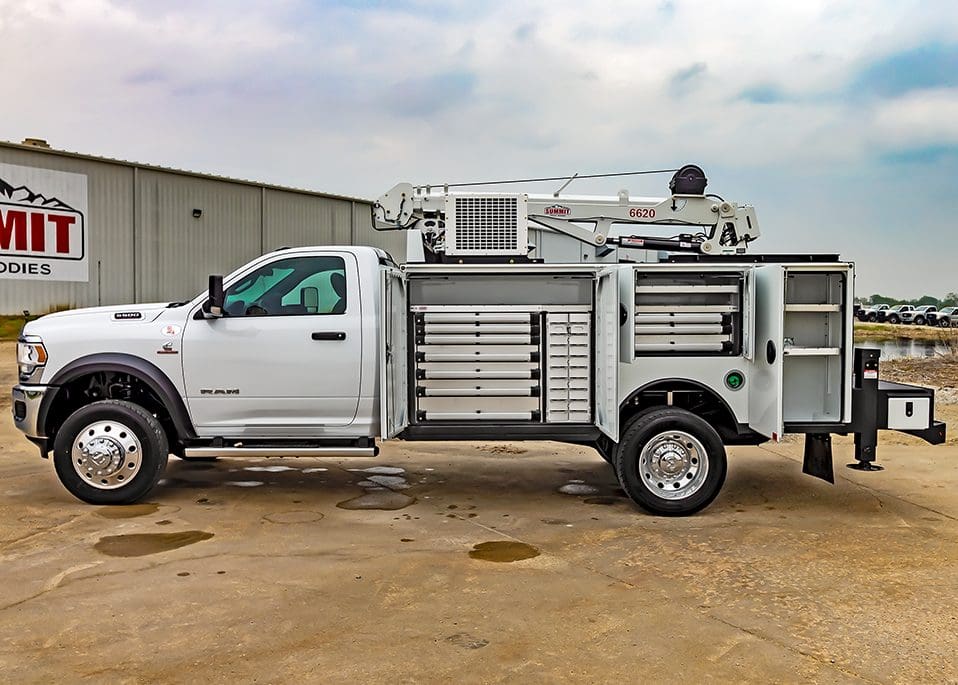

Summit designed and manufactured drawer packs
.125” aluminum construction
Heavy-duty 600 lbs. slides fully extend
Lock-in & lock-out slides
Removable drawers
Lock-in drawer dividers are standard.
Egg crating is optional.
Lockable single-action handle assembly
Drawer depths of 3”, 5”, and 7”
Custom widths from 12”-50”
Custom riser heights
Top shelf with dividers
Optional slide-out work tray
Wrap or powder coat options add color & durability
Cycle, load, shock, impact damage, incline, and vibration tested

Hydraulic System

Open center fixed displacement gear pump
The PTO is mounted to the transmission.
A 26-gal tank hydraulic reservoir is mounted to the body.

Air Compressor Systems

Choose a hyd-driven reciprocating or rotary screw air compressor.
40 CFM output
175 psi max output (reciprocating)
150 psi max output (rotary screw)
Hannay Reels 1/2″ x 50′ HD spring rewind hose reel
- 50′ of 250 psi rated air hose
- Payout door on the rear of the side pack
ASME underbody air receiver
- 15 gal air storage tank
- Mechanical air tank moisture drain
Norgren 1/2″ filter/lubricator/regulator

ASE Control System

Safety and performance come standard with Summit’s Advanced Safety Electronics (ASE) Phase 4 control system.

Designed to enhance job site efficiency, this innovative system integrates crane, body, and chassis operations through a network of switches and sensors that communicate in real-time.

With the ASE system, operating your service truck with crane is safer and more intuitive. Automated protection features reduce risks in hazardous conditions, while real-time data empowers you to make informed decisions. Built on the robust J1939 protocol, it integrates seamlessly with fleet telematics systems for comprehensive management.

Key Features:

Safety-First Design: Automated safety features prevent crane functionality under unsafe conditions.
Comprehensive Control: Operate the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights from three control points: rear compartment, cab panel, or wireless remote.
Real-Time Monitoring: Digital load moment indicator (LMI) displays alerts and data in clear, easy-to-read text, such as oil temperature, crane overload, or successful outrigger deployment.
Enhanced Efficiency: Streamlined operations increase productivity while reducing downtime.

The ASE system is standard on all Summit hydraulic crane service trucks, including the 7 Series, ensuring you’re equipped with the tools and technology to handle every job safely and efficiently.
