Summit Bodies
829 Hydraulic Crane
Available in 2026
HYDRAULIC Service crane

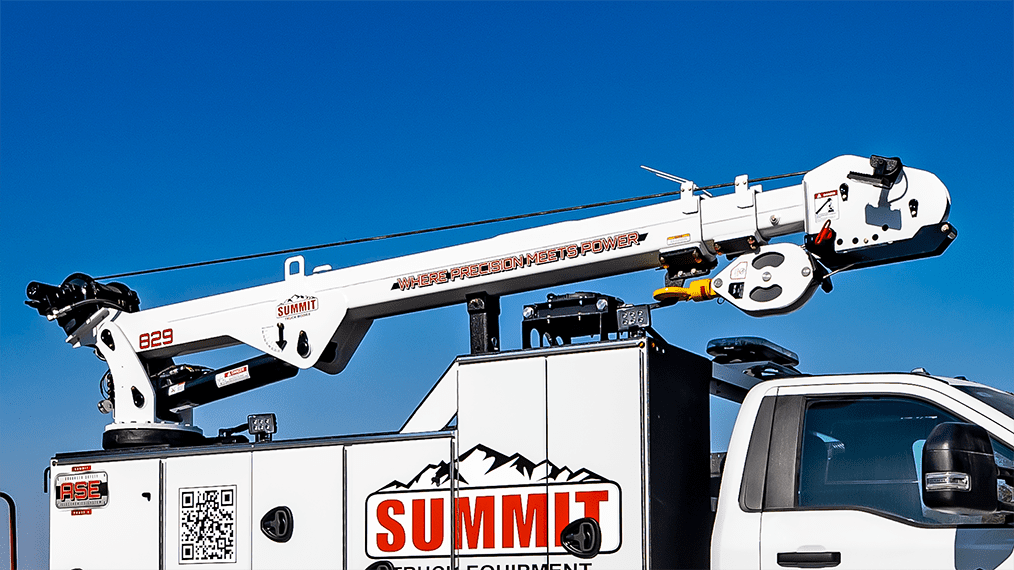

Summit’s 829 hydraulic service crane is engineered for demanding field work where strength, precision, and reliability matter.

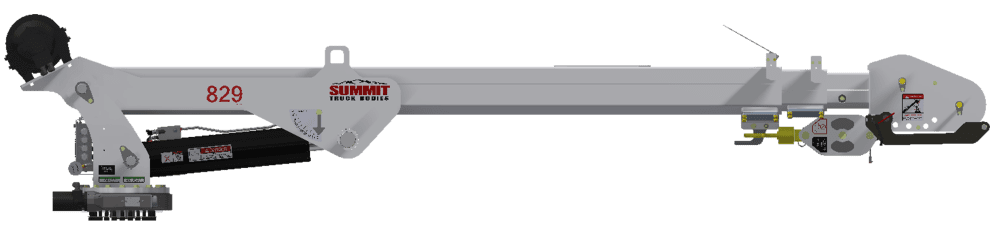

Built with a lighter, stronger boom design and continuous rotation, the 829 delivers exceptional lift performance in tight, rugged, or high-duty environments.
Designed for today’s heavy equipment service technicians, the 829 combines high lifting capacity with smooth proportional controls and Summit’s advanced ASE Phase 5 operating system. With improved clearance, a lower stowed profile, and a redesigned winch and horsehead for higher efficiency, the 829 helps technicians work safer and faster—day after day.
Whether you’re working in construction, agriculture, mining, utilities, or equipment repair, Summit’s hydraulic service crane delivers the performance and durability crews need to stay productive.
829
Telescopic Hydraulic Crane
829 Crane Specifications
| Max Lifting Capacity | 8,0000 lb. (3629 kg) | |
| Crabe Rating | 48,000 ft-lb. (65.7 kN-m) | |
| Horizontal Lifting Radius(ret) | 12′ 6″ (3.81 m) from CL of Crane | |
| Boom Extension | 1st Stage Hydraulic 94.13″ (239 cm) 2nd Stage Hydraulic 96.75″ (246 cm) |
|
| Max. Horizontal Reach (ext) | 29′ (8.83 m) from CL of Crane | |
| Boom Elevation | -10° to +77.5° | |
| Winch Specifications | ||
| Rope Diameter | 25/64″ (10 mm) | |
| Max. Winch Line Pull Speed | 60 ft/min (18.2 m/min) | |
| Max. Single Part Line | 5,000 lb. (2268 kg) | |
| Max. Double Part Line | 8,000 lb. (3629 kg) | |
| Rotation | Continuous Power | |

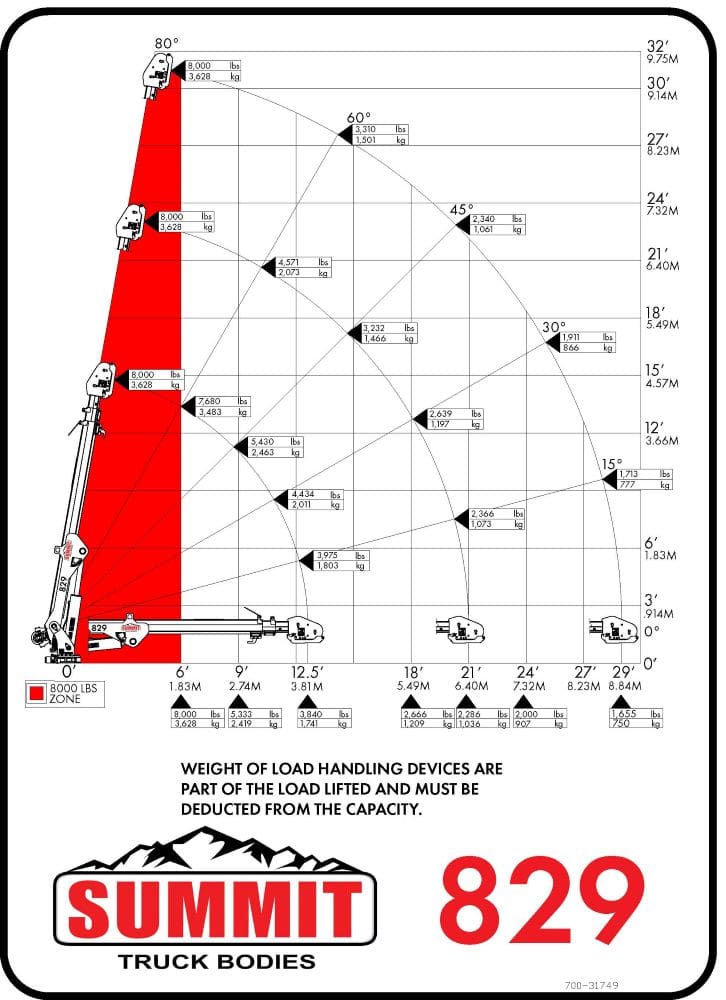

| Lifting Capacities | 8,000 lb @ 6’ (3628.7 kg @ 1.83 m) 5,333 lb @ 9’ (2419 kg @ 2.74 m) 4,000 lb @ 12’ (1418 kg @ 3.6 m) 3,000 lb @ 15′ (1360 kg @ 4.5 m) 2,666 lb @ 18’ (1209 kg @ 5.4 m) 2,285 lb @ 21’ (1036 kg @ 6.4 m) 2,000 lb @ 24’ (907 kg @ 7.7 m) 1,777 lb @ 27’ (806 kg @ 8.22 m) 1,655 lb @ 29’ (750.6 kg @ 8.8 m) |
|
| Mounting Space Reqd | 23.6″ x 18.6″ (60cm x 47 cm) | |
| Approx. Weight | 1920 lb. (871 kg) | |
| Controls | Wireless Control System Standard | |
| Power Supply Reqd | PTO & Pump 8 gpm (30.2 lpm) @ 2800 psi All-in-one power unit |

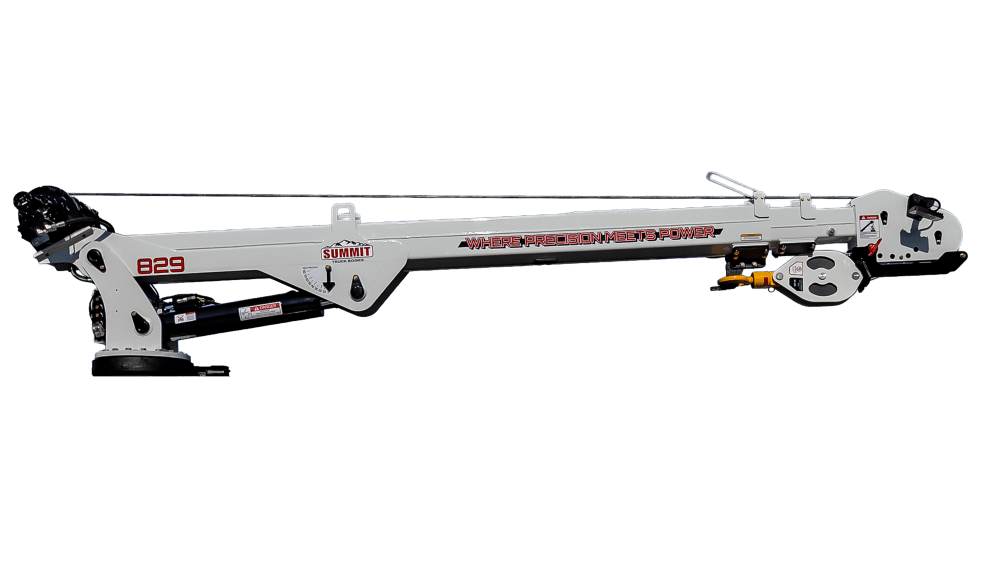

829 Hydraulic Crane Features

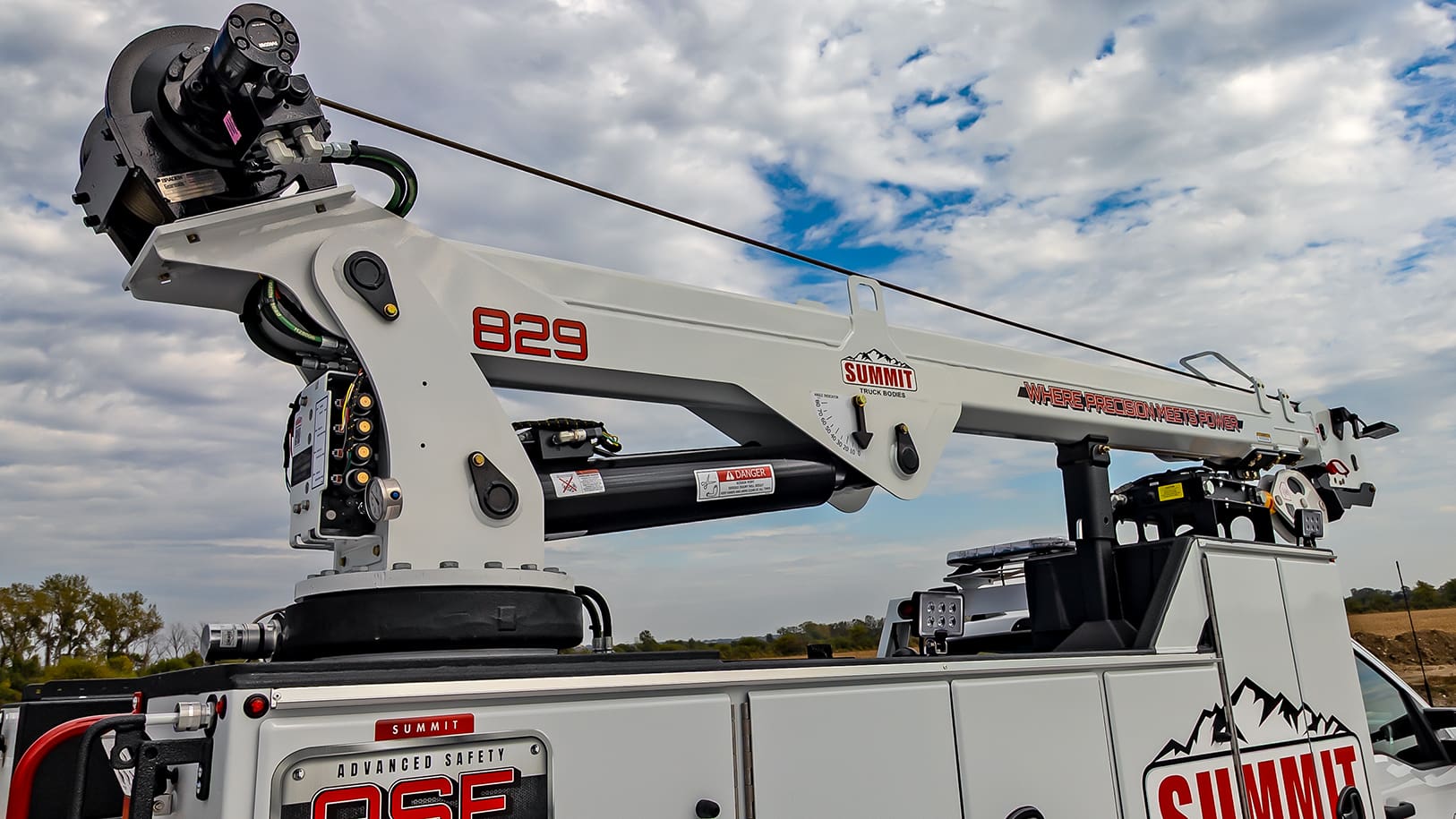

The Summit 829 is an 8,000 lb hydraulic service crane commonly mounted on our 7 Series service truck body. It’s built for reliable lifting performance and smooth, precise operation in demanding service environments.
Key Features
-
Boom-mounted winch improves line pull efficiency and reduces boom stress
-
Continuous rotation for easier positioning around the jobsite
-
Integrated overload protection to help protect operators and equipment
-
Auto-release hook stow for quicker, hands-free stowing
-
PPG powder-coated boom for long-lasting corrosion resistance
-
ANSI B30.5 and OSHA 1910.180 compliant for safe, standardized operation
-
ASE controls available (Phase 5 standard; Phase 1 available on ship-out cranes)
Crane Options
- Crane Lights with swivel bracket
- Man-bucket & accessories
- Tire Jib
- Synthetic Rope
ASE Phase 1 Crane Control System
If you want to upgrade your current crane or need to replace an older crane, we can help. Summit Truck Bodies parts department handles factory direct crane sales. All our ship-out cranes are shipped with our ASE Phase 1 control system. This wireless control system is easy to use and plug-and-play. It comes with a radio receiver, wireless radio transmitters, and a tether cord.
Phase 1 Transmitter Features
- Lightweight
- Waterproof
- Impact Resistant
- Multifunction
- Proportional Trigger
- Overload Protection
- E-Stop
- Engine/Start-Stop
- Powered with 4 AA Batteries
- LED Indicator
- Steady Flashing Green = Unit
- Red Flashing = Low Battery
- Tether Cable (optional use)
ASE
ADVANCED SAFETY ELECTRONICS

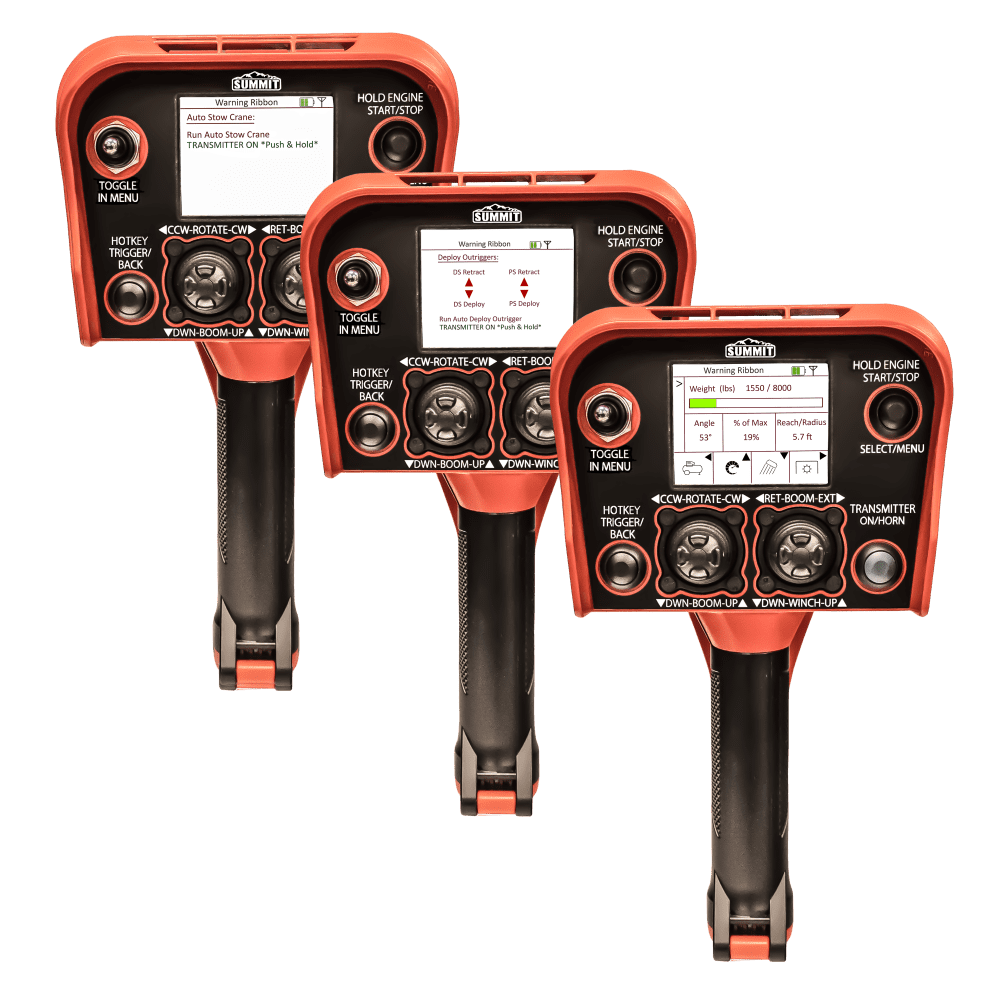

Our innovative ASE Phase 5 control system has elevated jobsite safety and performance.
We’ve combined crane, body, and chassis operations with functional safety using a network of switches and sensors to communicate data. Advanced Safety Electronics reduces the risks of working in hazardous conditions, takes the guesswork out of crane operation with automated protection features, and gives you information to make safe decisions. Based on the robust J1939 Protocol, we can also incorporate the telematics data into your fleet management solution.
- Increase OSHA Dart Rate and ROI
- Operate and monitor the crane, outriggers, engine, PTO, air compressor, hydraulics, and lights.
- Built-in safety features protect against jobsite hazards and ensure safe crane operation.
- Three control points: main control in rear compartment, cab control panel, and wireless remote control
- It prevents crane functionality under unsafe operating conditions
- Digital displays of real-time load moment indicator (LMI) data on the main panel and remote control.
- Display alerts in easy-to-read text: e.g., oil temp, outriggers successfully deployed, crane overload, etc.
- Standard on all hydraulic crane service trucks Coming in 2026
Crane Comparison Chart
Summit Crane Specifications
| Model | 4416E | 6422E | 6620 | 6629 | 7529 | 829 | 10620 | 10629 | 12629 | 14629 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Lift Capacity (lb) | 4,000 | 6,000 | 6,000 | 6,000 | 7,500 | 8,000 | 10,000 | 10,000 | 12,000 | 14,000 | ||||||||||||||
| Crane Rating (ft-lb) | 16,000 | 36,000 | 38,000 | 38,000 | 45,000 | 48,000 | 60,000 | 60,000 | 66,000 | 70,000 | ||||||||||||||
| Horizontal Lifting Radius(ret) | 7′ | 10′ 6″ | 10′ 9″ | 12’9 | 13′ 10″ | 12′ 6″ | 12′ 9″ | 13′ 7″ | 13′ 7″ | 14′ | ||||||||||||||
| Max Horizontal Reach(ext) | 16′ | 22′ | 20′ 9″ | 28′ 7″ | 29′ 7″ | 29′ | 20′ 8″ | 28′ 11″ | 28′ 11″ | 29′ | ||||||||||||||
| Max Vertical Lift Height | 16′ | 23′ | 22′ | 29′ 4″ | 22′ | 29′ | 29 4″ | 29′ 4″ | 30′ 6″ | 30′ 6″ | ||||||||||||||
| Boom Elevation | -5° to 75° | -5° to 75° | -5° to 75° | -5° to 75° | -5° to 75° | -10° to 77.5° | -5° to 75° | -5° to 75° | -5° to 75° | -5° to 75° | ||||||||||||||
| Crane Rotation | 360° | 400° | Continuous | 400° | ||||||||||||||||||||
| Max Winch Line Speed | 22 ft/mn | 30 ft/min | 60 ft/min | |||||||||||||||||||||
| Rope Diameter | 1/4″ | 5/16″ | 3/8″ | 3/8″ | 7/16″ | 25/64″ | 7/16″ | 7/16″ | 7/16″ | 12″ | ||||||||||||||
| Stowed Height (crane only) | 34 9/16″ | 37 7/8″ | 40 5/8″ | 40 5/8″ | 43″ | 37″ | 41 1/4″ | 41 1/4″ | 42 3/8″ | 52 1/4″ | ||||||||||||||
| Approx Weight | 825 lb | 1,817 lb | 1,750 lb | 1,890 lb | 2,100 lb | 1,920 | 2,320 lb | 2,600 lb | 2,640 lb | 3,420 lb | ||||||||||||||
| Mountaing Space Reqd | 14″ x 14″ | 18″ x 18″ | 21″ x 25″ | 21″ x 25″ | 25.5 x 35.5″ | 23.6″ x18.6″ | 21″ x 25″ | 21″ x 25″ | 21″ x 25″ | 25″ x 34.5″ | ||||||||||||||
| Controls | Single-function Wireless Controls | Wireless Control System: ASE Phase 1, Phase 4 or Phase 5 (Phase 1 ship-out cranes) | ||||||||||||||||||||||
| Power Supply Reqd | 12VDC |
|
||||||||||||||||||||||
| * Specifications are subject to change without notification. | ||||||||||||||||||||||||
Learn about pricing
Talk to your regional sales rep or call our factory direct parts department about the hydraulic or electric truck cranes you need to help improve safety and productivity on the job site.
